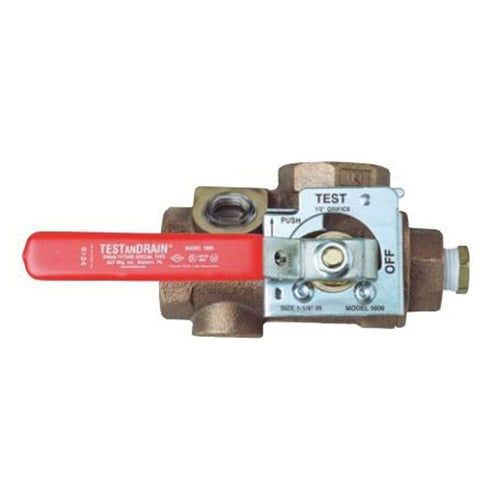

AGF AGF1000.114 TESTanDRAIN 1000 Bronze Sectional Floor Control Test and Drain Valve 1-1/4 in NPT

Product Description

The AGF brand offers the AGF1000.114 model, a test and drain valve specifically designed for wet fire sprinkler systems. This valve has a pressure rating of 300 psi. It features a single handle ball valve design for ease of use.

• Compact, lightweight design
• Reliable and tamper-resistant components
• Integrated repair kit for system maintenance

Product Highlights

The AGF1000.114 provides efficient test and drain functions, eliminating the need for multiple connections. This feature saves time and space in your installation.

Product Information

Standard Information

• Brand: AGF
• Manufacturer: AGF Manufacturing

Technical Specifications

• Model: 1000
• Material: Bronze
• Connection Size: 1-1/4 in
• Connection Type: NPT
• Pressure Rating: 300 psi
• Dimension: 5-7/16 in L x 7-1/2 in H
• Ball Material: Chrome-Plated Brass
• Seat Material: Impregnated Teflon
• Stem Material: Rod Brass
• Application: For wet fire sprinkler systems
• Standards/Certifications: UL and ULC listed, NYC-BSA No. 720-87-SM, NFPA-13, NFPA-13R, and NFPA-13D, FM approved
