Afc Cable Systems 6109-22-00 LIQUID-TUFF Liquidtight Conduit 3 inch 25 Foot

Product Description

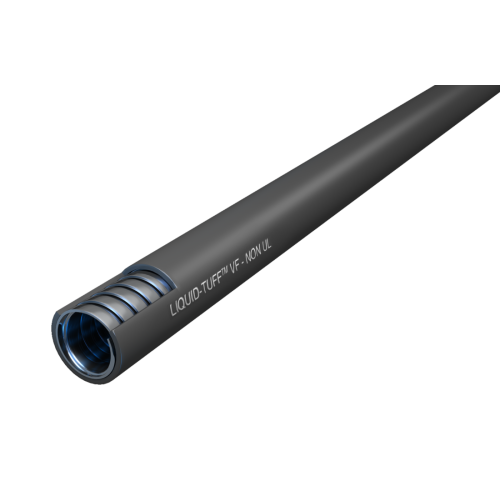

The AFC CABLE SYSTEMS 6109-22-00 is a LIQUID-TUFF liquidtight flexible metal conduit. Constructed with zinc-coated galvanized low carbon steel and a flame-retardant PVC jacket. Designed to provide mechanical and moisture protection for conductors in applications where UL or other agency approvals are not required. It is oil and sunlight resistant.

• Mechanical and moisture protection for conductors
• Sunlight resistant
• Flame retardant PVC jacket
• Very flexible

Product Highlights

LIQUID-TUFF liquidtight flexible steel conduit VF with a gray, flame retardant PVC jacket and a hot dipped zinc galvanized low carbon steel core.

Product Information

Standard Information

• Brand: AFC CABLE SYSTEMS
• Manufacturer Part Number: 6109-22-00
• Country of Origin: USA

Technical Specifications

• Trade Size: 3 inch
• Part Length (ft): 25
• Part Weight (lb/ft): 1.45
• Material Type: Steel
• Surface Finish: PVC
• Max Temperature Rating Dry F: 140
• Min Temperature RatingF: -4
• Oil Resistant: true
• Brand: LIQUID-TUFF
• Type: Non-UL Liquidtight VF Flexible Steel Conduit
• Sub Brand: LIQUID-TUFF
• 12-Digit UPC: 077680119827
• GTiN: 00077680119827
• Product UPC: 07768011982
• BAA | Buy American Compliant: Y
• Color Family: Gray
• UNSPSC: 39131706
