Afc Cable Systems 6004-30-00 Ul Liquidtight Flexible Nonmetallic Conduit 1 inch REPLACEMENT MPN

Product Description

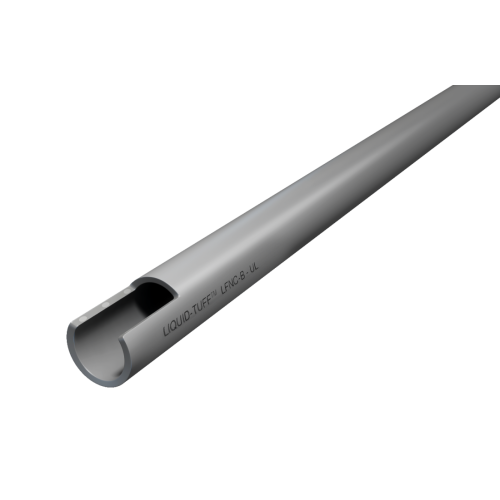

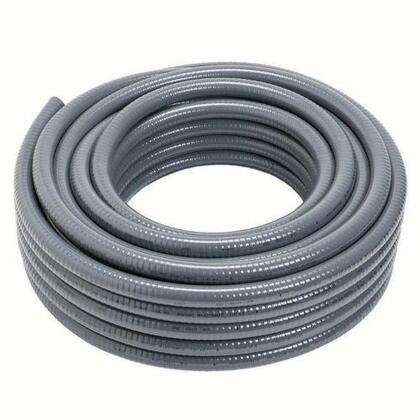

The AFC CABLE SYSTEMS 6004-30-00 is a liquidtight flexible nonmetallic conduit. It features rugged sunlight and oil-resistant PVC construction and an interior integral reinforced member within the conduit wall. This conduit is suitable for outdoor applications, including direct burial and concrete embedment. It is gray in color and has a 1-inch diameter.

• LIQUID-TUFF Integral Liquidtight Flexible Nonmetallic Conduit UL
• Rugged Nonmetallic PVC
• Interior integral reinforced member within conduit wall

Product Highlights

Ideal for fixture whips, data centers, electric signs, outdoor lighting, HVAC, pools, and spas.

Product Information

Standard Information

• Brand: AFC CABLE SYSTEMS
• Manufacturer Part Number: 6004-30-00
• Country of Origin: US - United States

Technical Specifications

• Trade Size: 1 in.
• Part Length (ft): 100
• Part Weight (lb/ft): 0.27
• Material Type: PVC
• Color: Gray
• Max Temperature Rating Dry F: 176
• Hazardous Location Class(es): Class I Div 2 NEC 501.10(B)(2)(5), Class II Div 1 NEC 502.10(A)(2)(3), Class II Div 2 NEC 502.10(B)(2), Class III Div 1 NEC 503.10(A)(3)(3) and Class III Div 2 NEC 503.10(B).
• Oil Resistant: true
• Brands: AFC Cable Systems, Kaf-Tech
• Length: 100 ft
• Diameter: 1 in
• Finish: PVC
• Material: PVC
• Color Family: Gray
• Type: Liquid Tight Conduit
• MPN: 6004-30-00
• Model: 6004-30-00
