Aeroflex 410-AC11834 Aerocel AC Pipe Insulation 1-1/8 Inch

Product Description

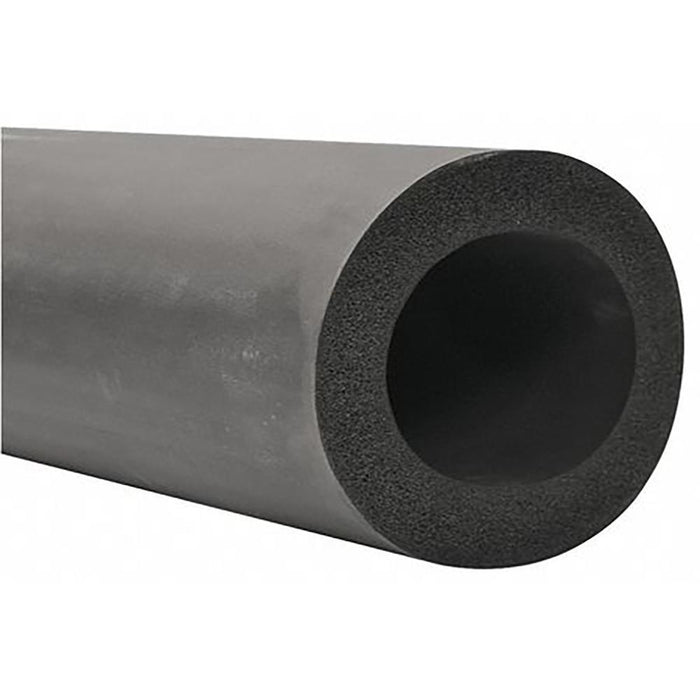

The AEROFLEX 410-AC11834 Aerocel AC pipe insulation is a closed cell, flexible insulation. It has a 1-1/8 Inch nominal size, 1 Inch inside diameter and 3/4 Inch wall thickness. It resists moisture and UV, has low thermal conductivity and a flame spread rating of 25 or less and a smoke developed rating of 50.

• Closed Cell
• Flexible
• Resists Moisture
• Suitable for HVAC and Refrigeration applications

Product Highlights

The AEROFLEX Aerocel AC pipe insulation is ideal for HVAC and refrigeration applications, providing resistance to moisture and UV.

Product Information

Standard Information

• Brand: AEROFLEX
• Manufacturer Part Number: 410-AC11834
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible
• Color: Black
• Length: 120 ft
• Series: Aerocel AC
• Resists: Moisture, UV
• Material: EPDM
• R Factor: R3.06
• Manufacturer: Aeroflex
• Nominal Size: 1-1/8 Inch
• Wall Thickness: 3/4 Inch
• Inside Diameter: 1 Inch
• Thermal Conductivity: 0.245 Btu-in/hr-sq-ft-deg F at Mean temp 75 deg F
• Insulation Material: EPDM
• Form: Tube
• For Pipe Size: 3/4" (IPS), 1" (Copper)
• For Copper Tube Size: 1-1/8 in
• Overall Length: 6 ft
• Installation Style: Unslit
• Outside Diameter: 2-5/8 in
• Insulation R-Value: 3.06
• Minimum Operating Temperature: -297 °F
• Maximum Operating Temperature: 300 °F
• Plenum Rating: Plenum Rated
• Foam Cell Type: Closed
• Flexibility: Flexible
• For Material Type: Copper; Stainless Steel
• K Value: 0.25 BTU
• Outdoor Weather Protection: None Required
• Resistance Properties: Corrosion-Resistant; UV-Resistant
• Flame Spread Index: 20
• Smoke Developed Index: 50
• Standards: ASTM C534; ASTM C692; ASTM D635; ASTM E84; ASTM E96
• Brand: AEROFLEX
• UNSPSC: 30141505
• Item ID: 3MNEAOP1-1/8X3/4
• MPN: 410-AC11834
• Iron Pipe Size: 3/4 in
• Specific Gravity: 0.04-0.06
• Service Temperature: -297 to 257 deg F (-182 to +125 deg C)
• Water Absorption: 0.2% by volume Max
• Water Vapor Permeability: 0.03 perm-in
• Density: 3.0 to 6.0 sq-ft/lb
• Flammability: Self-extinguishing
• Connection Type: Unslit
• Construction: Closed Cell, Flexible
• Domestic/Import: Domestic
• Facing Type: Unfaced
• Model: 410-AC11834
• R-Value: 5
• Style: Unslit Tube
• Temperature Rating: -297-257 °F
• Thermal Resistance: R-5.0
