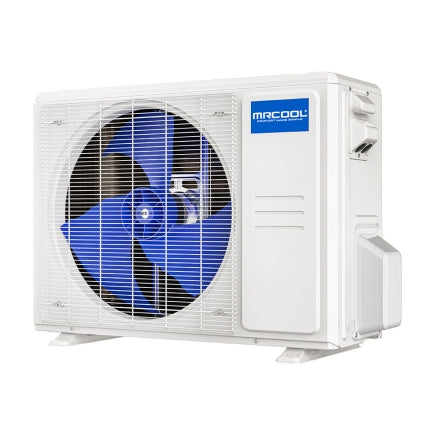

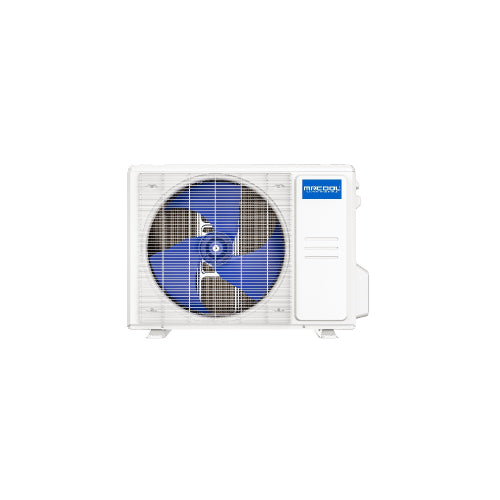

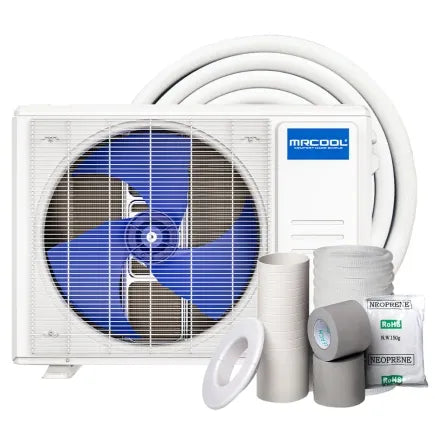

Mrcool A-09-HP-C-230D-O Advantage 5th Gen 9k BTU 230V Condenser

Product Description

The MRCOOL A-09-HP-C-230D-O Advantage 5th Gen 9k BTU 230V Condenser is designed for ductless split systems. This heat pump condenser features a DC inverter for energy efficiency and precise temperature control. It operates quietly and has an extended lifespan. The gold fin condenser prevents rust and corrosion, ensuring reliable performance.

• Eco-friendly R454B refrigerant
• DC inverter for superior energy efficiency
• Gold Fin condenser to prevent rust and corrosion

Product Highlights

This MRCOOL Advantage condenser offers efficient and reliable climate control for spaces up to 400 sq ft, utilizing eco-friendly R-454B refrigerant.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: A-09-HP-C-230D-O

Technical Specifications

• Brand: MRCOOL
• MPN: A-09-HP-C-230D-O
• UPC: 840255586825
• Model: A-09-HP-C-230D-O
• Product Height (in): 21.85
• Avg Coverage Area: Less than 500 Sq Ft
• Product Length (in): 11.93
• Compressor: Inverter
• Product Width (in): 30.12
• Cooling Capacity: 9000 BTU/H
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 20 amps
• Refrigerant: R-454b
• Cooling Efficiency (SEER2): 23.6
• Series: Advantage
• Suction Line Size: 3/8 inch
• System Application Type: Ductless Split Systems
• Voltage: 208V-230V
• Warranty: 1 Yr
• Region Compatibility: Nationwide
• Heating Capacity: 10000 BTU/H
• Highest Decibel Rating: 53.5 dB-A
• Maximum Amperage: 15 Amp
• Room Size: 400 Sq Ft
