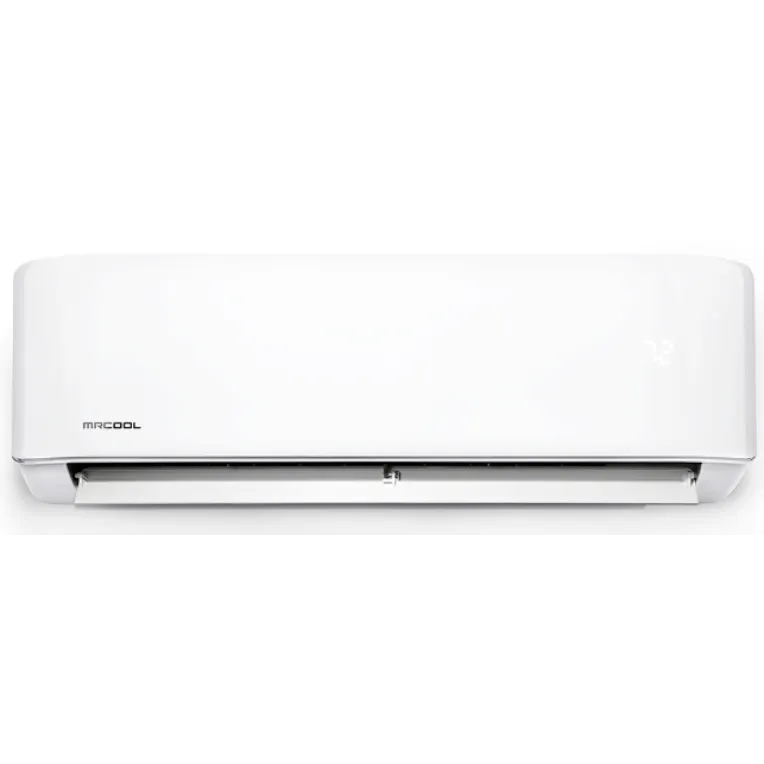

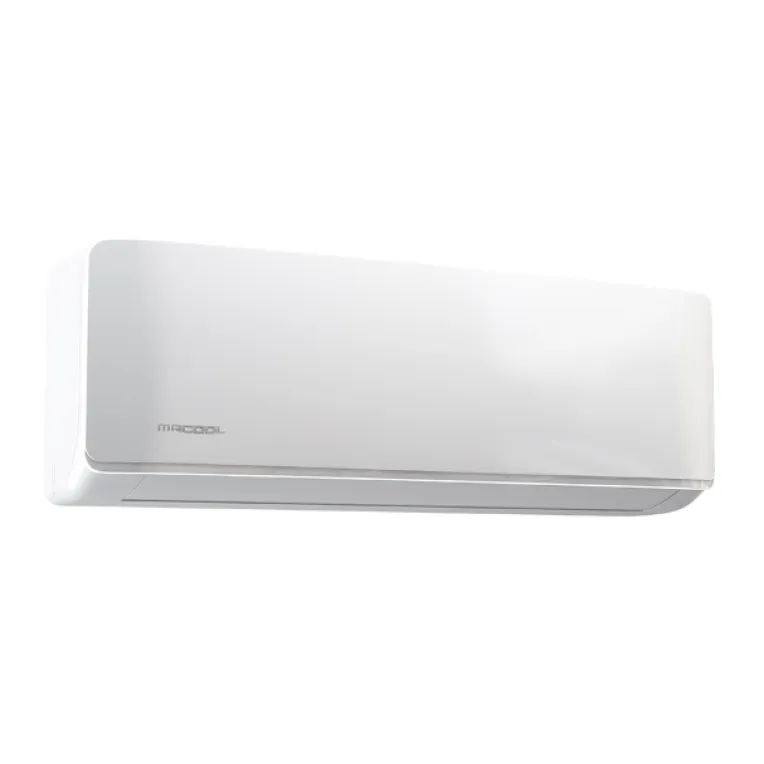

Mrcool A-09-HP-WMAH-230D-O Advantage 5th Gen 9k BTU 230V Air Handler

Product Description

The MRCOOL A-09-HP-WMAH-230D-O Advantage 5th Gen 9k BTU 230V Air Handler provides efficient ductless heating and cooling. Designed for spaces up to 400 sq. ft., it uses R-454B refrigerant, reducing greenhouse gas emissions. This wall-mounted air handler features a DC inverter for energy efficiency and quiet operation. It integrates with Amazon Alexa and Google Assistant via the included WiFi Smart Kit.

• Includes WiFi Smart Kit for smart home integration.
• Features programmable timers and smartphone app compatibility.
• Utilizes Follow Me feature for automatic airflow adjustment.

Product Highlights

This MRCOOL Advantage air handler offers efficient, smart, and sustainable comfort with quiet operation and easy installation.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: A-09-HP-WMAH-230D-O

Technical Specifications

• Brand: MRCOOL
• MPN: A-09-HP-WMAH-230D-O
• UPC: 840255586894
• Category 1: Mini-Split
• Product Height (in): 7.36
• Configuration: Wall Mounted
• Product Length (in): 11.42
• Air Flow Direction: Horizontal
• Product Width (in): 28.43
• Blower Motor: Variable Speed
• Cooling Capacity: 9000 BTU/H
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 20 amps
• Refrigerant: R-454b
• Series: Advantage
• Suction Line Size: 1/2 inch
• System Application Type: Ductless Split Systems
• Voltage: 230
• Heating Capacity: 10000 BTU/H
• Maximum Amperage: 15 Amp
• Room Size: 400 Sq Ft
• Phase: 1
• Speeds: 5
• Min. Circuit Amps: 3A
• Nominal Tons: 0.75
• Nominal CFM: 312.0 / 264.9 / 194.2 / 153.0 / 105.9
• Mounting: Wall
• Unit Type: Mini-Split
• Sound Level: 31.5 dBA
• Max. Fuse Size: 15 A
• Model Series: Advantage 5th gen
• Filter Type: Reusable
