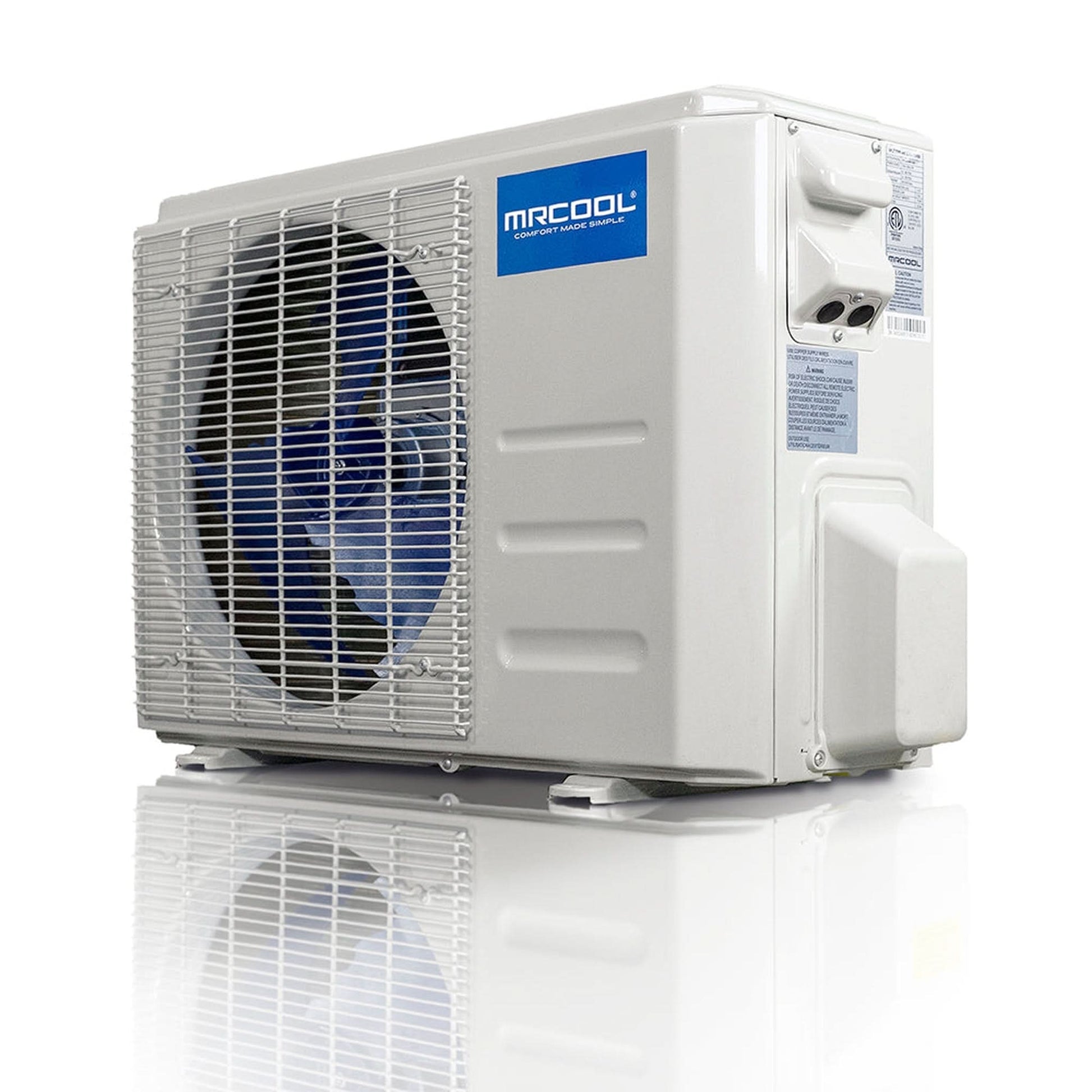

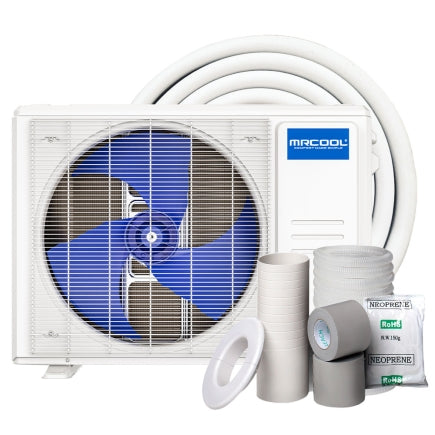

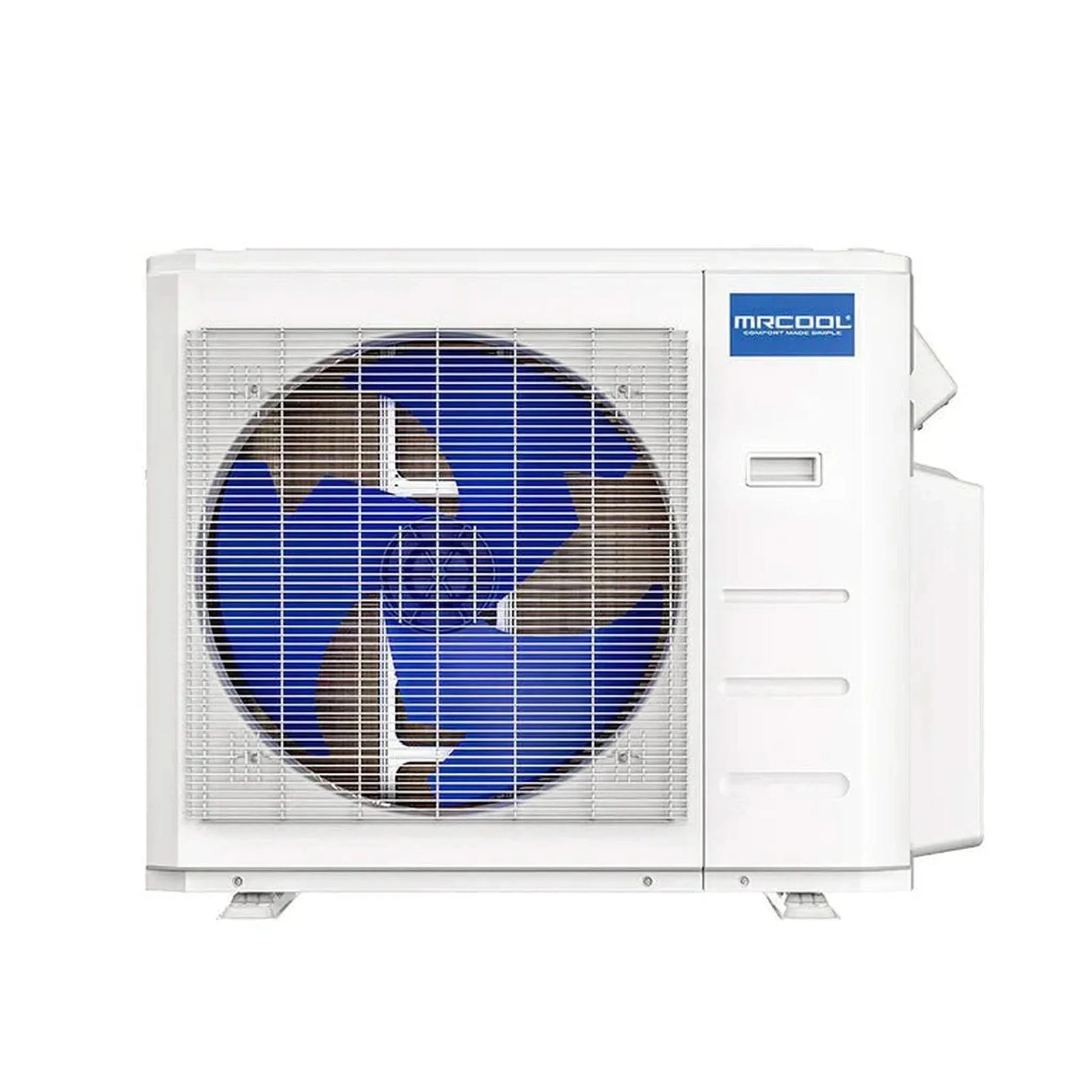

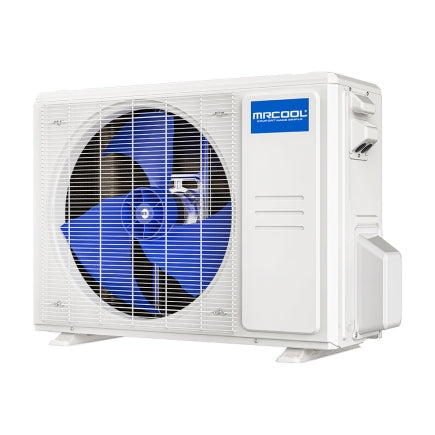

Mrcool A-09-HP-C-115D-O Advantage 5th Gen 9k BTU 115V Condenser

Product Description

The MRCOOL A-09-HP-C-115D-O Advantage 5th Gen 9k BTU 115V Condenser is a high-efficiency outdoor condenser engineered for professional installation and seamless comfort when paired with a compatible MRCOOL Advantage indoor air handler (sold separately). This ductless design makes the process quicker and more affordable compared to traditional central systems. The unit uses eco-friendly R-454B refrigerant.

• Eco-friendly R454B refrigerant
• AHRI and Energy Star certification
• DC inverter for improved energy efficiency
• Gold Fin condenser for rust and corrosion resistance

Product Highlights

This MRCOOL Advantage heat pump condenser delivers dependable, energy-efficient heating and cooling with a SEER2 rating of 21.5. It features integrated Wi-Fi for convenient smart control via Amazon Alexa and Google Assistant.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: A-09-HP-C-115D-O

Technical Specifications

• MPN: A-09-HP-C-115D-O
• UPC: 840255586801
• Brand: MRCOOL
• Category 1: Mini-Split
• Model: A-09-HP-C-115D-O
• Product Height (in): 21.85
• Avg Coverage Area: Less than 500 Sq Ft
• Product Length (in): 11.93
• Compressor: Inverter
• Product Width (in): 30.12
• Cooling Capacity: Less than 1 Ton
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 1/4 inch
• Max Overcurrent Protection: 20 amps
• Refrigerant: R-454b
• Cooling Efficiency (SEER2): 23.6
• Series: Advantage
• Suction Line Size: 3/8 inch
• System Application Type: Ductless Split Systems
• Voltage: 120
• Warranty: 1 Year Parts, 2 Year Compressor
• Region Compatibility: Nationwide
• Type: Heat Pump Condenser
• Refrigerant Type: R-454B
• SEER2 Rating: 21.5
