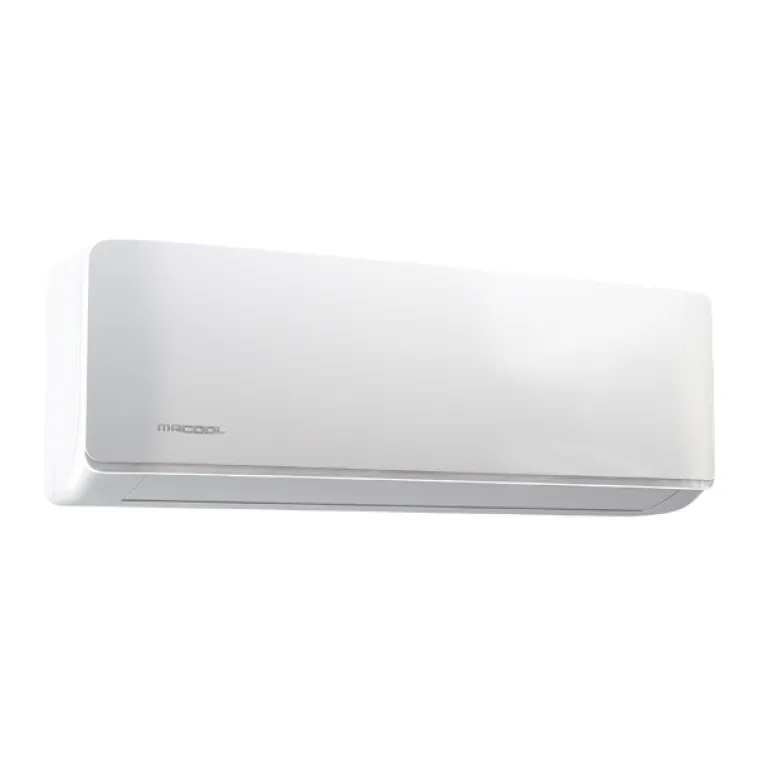

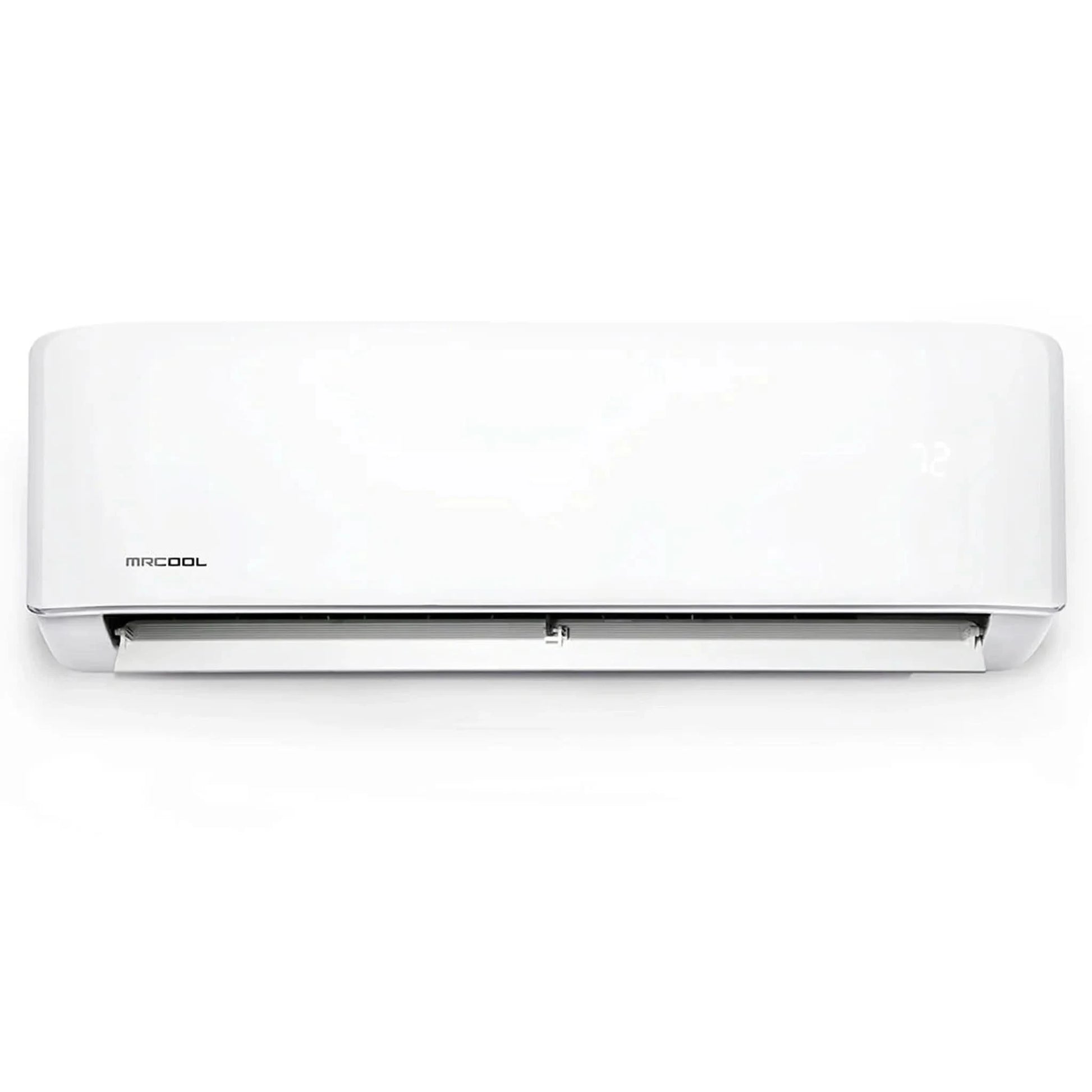

Mrcool A-09-HP-WMAH-115D-O Advantage 5th Gen 9k BTU 115V Air Handler

Product Description

The MRCOOL A-09-HP-WMAH-115D-O Advantage 5th Gen 9k BTU 115V Air Handler provides reliable heating and cooling without ductwork. Designed for use with 115V systems, this mini split indoor unit delivers quiet, energy-efficient climate control for spaces up to 400 sq. ft. It features built-in Wi-Fi for remote operation and uses eco-friendly R-454B refrigerant.

• High Efficiency Performance: Up to 21.2 SEER2 for powerful, cost-saving heating and cooling.
• SmartHVAC WiFi Control: Built-in WiFi module allows remote operation via the SmartHVAC app and is compatible with Amazon Alexa and Google Assistant.
• Eco-Friendly Refrigerant: Utilizes environmentally conscious R-454B refrigerant for reduced environmental impact.

Product Highlights

Provides efficient, cost-effective, and reliable heating and cooling. Features include built-in Wi-Fi, remote control, and automatic temperature adjustments.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: A-09-HP-WMAH-115D-O

Technical Specifications

• Brand: MRCOOL
• MPN: A-09-HP-WMAH-115D-O
• UPC: 840255586870
• Type: Air Handler
• BTU Rating: 9,000 BTU
• Voltage: 115V
• Installation Type: Wall Mount (Indoor Unit Only)
• Refrigerant Type: R-454B (Not Pre-Charged)
• SEER2 Rating: Up to 21.2
• Phase: 1
• Speeds: 5
• Min. Circuit Amps: 3
• Nominal Tons: 0.75
• Liquid Line: 1/4"
• Suction Line: 3/8"
• Refrigerant: R-454B
• Nominal CFM: 282.5 / 235.4 / 206.0 / 164.8 / 117.7
• Mounting: Wall
• Unit Type: Mini-Split
• Sound Level: 33.5 dBA
• Max. Fuse Size: 15 A
• Model Series: Advantage 5th gen
• Filter Type: Reusable
