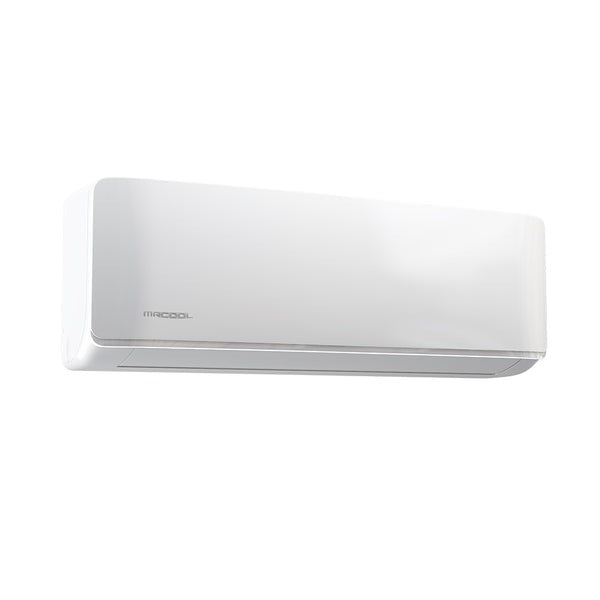

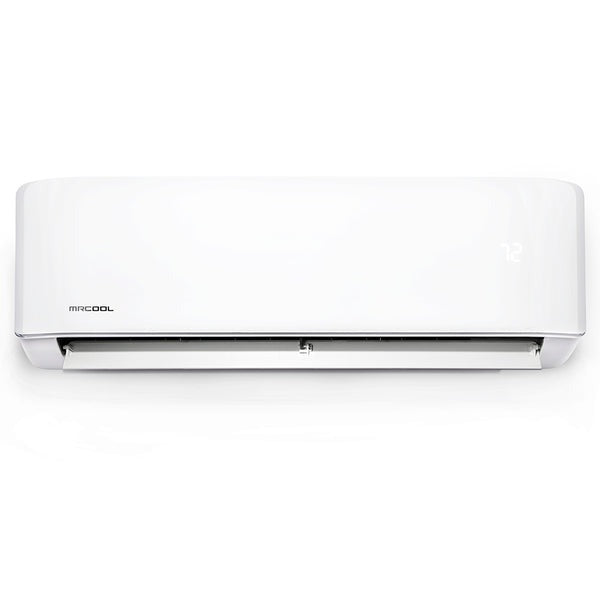

Mrcool A-24-HP-WMAH-230D-O Advantage 5th Gen 24k BTU 230V Air Handler

Product Description

The MRCOOL A-24-HP-WMAH-230D-O Advantage 5th Gen 24k BTU 230V Air Handler is engineered for efficient ductless comfort in large rooms. It features eco-friendly R454B refrigerant, quiet performance with sound levels as low as 21.5 dBA, and smart WiFi controls with mobile app, Alexa, and Google Assistant support. The unit operates at 208-230V and includes a reusable filter.

• Engineered for efficient ductless comfort in large rooms
• Eco friendly R454B refrigerant reduces environmental impact with lower global warming potential
• Quiet performance with sound levels as low as 21.5 dBA ensures comfort without distraction

Product Highlights

This MRCOOL air handler provides efficient, quiet, and smart ductless comfort for large rooms, featuring eco-friendly refrigerant and WiFi controls.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: A-24-HP-WMAH-230D-O

Technical Specifications

• Brand: MRCOOL
• MPN: A-24-HP-WMAH-230D-O
• UPC: 840255586924
• Category 1: Mini-Split
• Voltage: 208-230
• Phase: 1
• Cycle: 60
• CFM: 729.9 / 529.7 / 400.2 / 329.6
• Tonnage: 2
• Max Fuse Breaker (A): 15
• Min Circuit Ampacity (A): 3
• Mount Type: Wall
• Decibel Rating (dBA): 41.5
• Decibel Rating Low (dBA): 21.5
• Decibel Rating High (dBA): 54
• Number of Speeds: 5
• Filter Type: Reusable
• Max Line Set Length (ft): 164
• Overload Protection: Yes
• App Compatibility: Yes
• Works With iOS: Yes
• Works With Android: Yes
• Remote Control Included: Yes
• UL Listed: Yes
• CSA Listed: Yes
• ETL Listed: Yes
• AHRI Certified: Yes
• Base Parts Warranty: 1 Year
• Base Compressor Warranty: 2 Years
• Registered Warranty: Extended Limited Lifetime*
• Net Depth (in): 8.9
• Net Height (in): 13.19
• Net Width (in): 42.52
