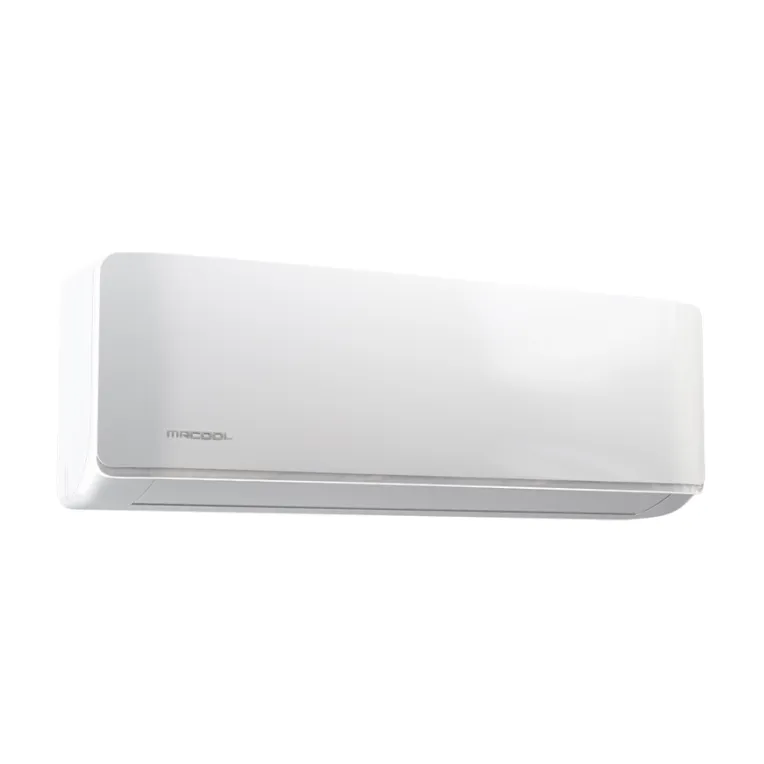

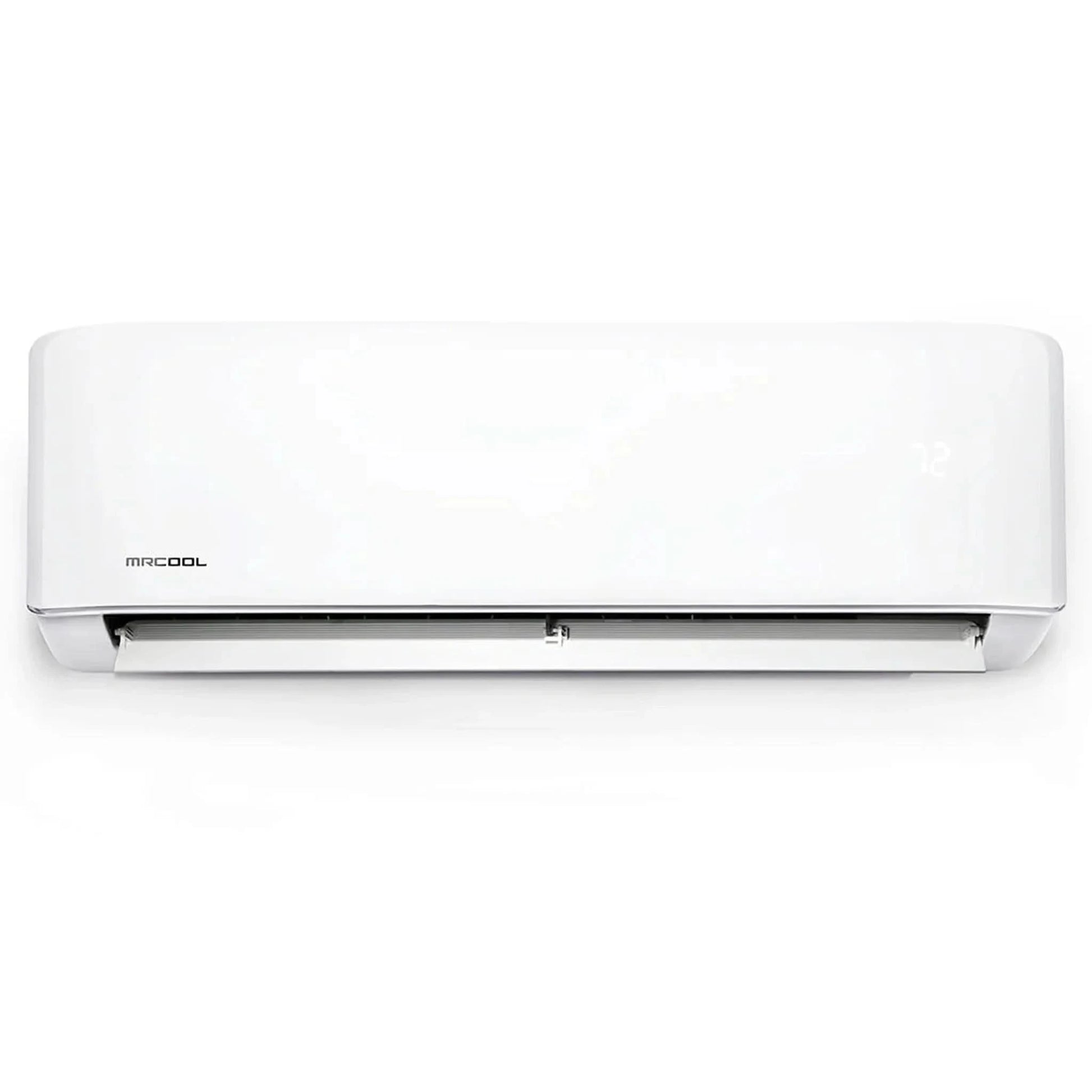

Mrcool A-18-HP-WMAH-230D-O Advantage 5th Gen 18k BTU 230V Air Handler

Product Description

The MRCOOL A-18-HP-WMAH-230D-O Advantage 5th Gen 18k BTU 230V Air Handler is engineered for high efficiency and superior performance. Designed for professional installation, this air handler offers reliable, energy-efficient, and quiet operation. It features an integrated WiFi control module for convenient management via the SmartHVAC app, Amazon Alexa, or Google Assistant and operates using R-454B refrigerant.

• Integrated WiFi control module
• Compatible with Amazon Alexa and Google Assistant
• Operates using R-454B refrigerant

Product Highlights

This MRCOOL Advantage air handler combines reliability, energy efficiency, and smart features for optimal climate control.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: A-18-HP-WMAH-230D-O

Technical Specifications

• Brand: MRCOOL
• MPN: A-18-HP-WMAH-230D-O
• UPC: 840255586917
• Model: A-18-HP-WMAH-230D-O
• Product Height (in): 8.46
• Configuration: Wall Mounted
• Product Length (in): 12.56
• Air Flow Direction: Horizontal
• Product Width (in): 37.99
• Blower Motor: Variable Speed
• Electrical Phase: 1-Phase
• Line Set Connection Type: Flared
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 35 amps
• Refrigerant: R-454b
• Series: Advantage
• Suction Line Size: 5/8 inch
• System Application Type: Ductless Split Systems
• Voltage: 240
• Type: Air Handler
• Refrigerant Type: R-454B
• Heating Capacity: 18000 BTU/H
• Maximum Amperage: 20 Amp
• Maximum Voltage: 208V-230V
• Room Size: 800 Sq Ft
• PHASE: 1
• CYCLE: 60
• MAX FUSE BREAKER (A): 15
• MIN CIRCUIT AMPACITY (A): 3
• MOUNT TYPE: Wall
• DECIBEL RATING (DBA): 36
• DECIBEL RATING LOW (DBA): 19
• DECIBEL RATING HIGH (DBA): 50.5
• NUMBER OF SPEEDS: 5
• MAX LINESET LENGTH (FT): 98.4
• FILTER TYPE: Reusable
• OVERLOAD PROTECTION: Yes
• APP COMPATIBILITY: Yes
• WORKS WITH IOS: Yes
• WORKS WITH ANDROID: Yes
• REMOTE CONTROL INCLUDED: Yes
• UL LISTED: Yes
• CSA LISTED: Yes
• ETL LISTED: Yes
• AHRI CERTIFIED: Yes
• REGISTERED WARRANTY: Extended Limited Lifetime*
• BASE PARTS WARRANTY: 1 Year
• BASE COMPRESSOR WARRANTY: 2 Years
• HAS BATTERIES: Yes
• CONTAINS CHEMICALS: Yes
• CONTAINS COMPRESSED GAS: Yes
• PROPOSITION 65 WARNING: Yes
