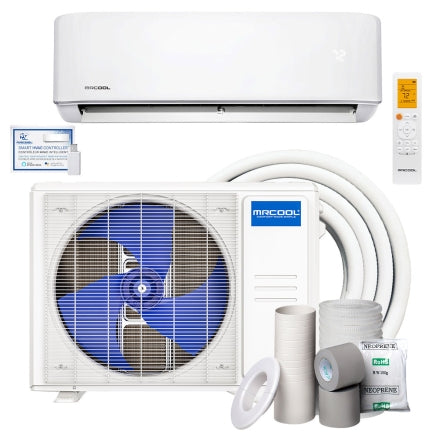

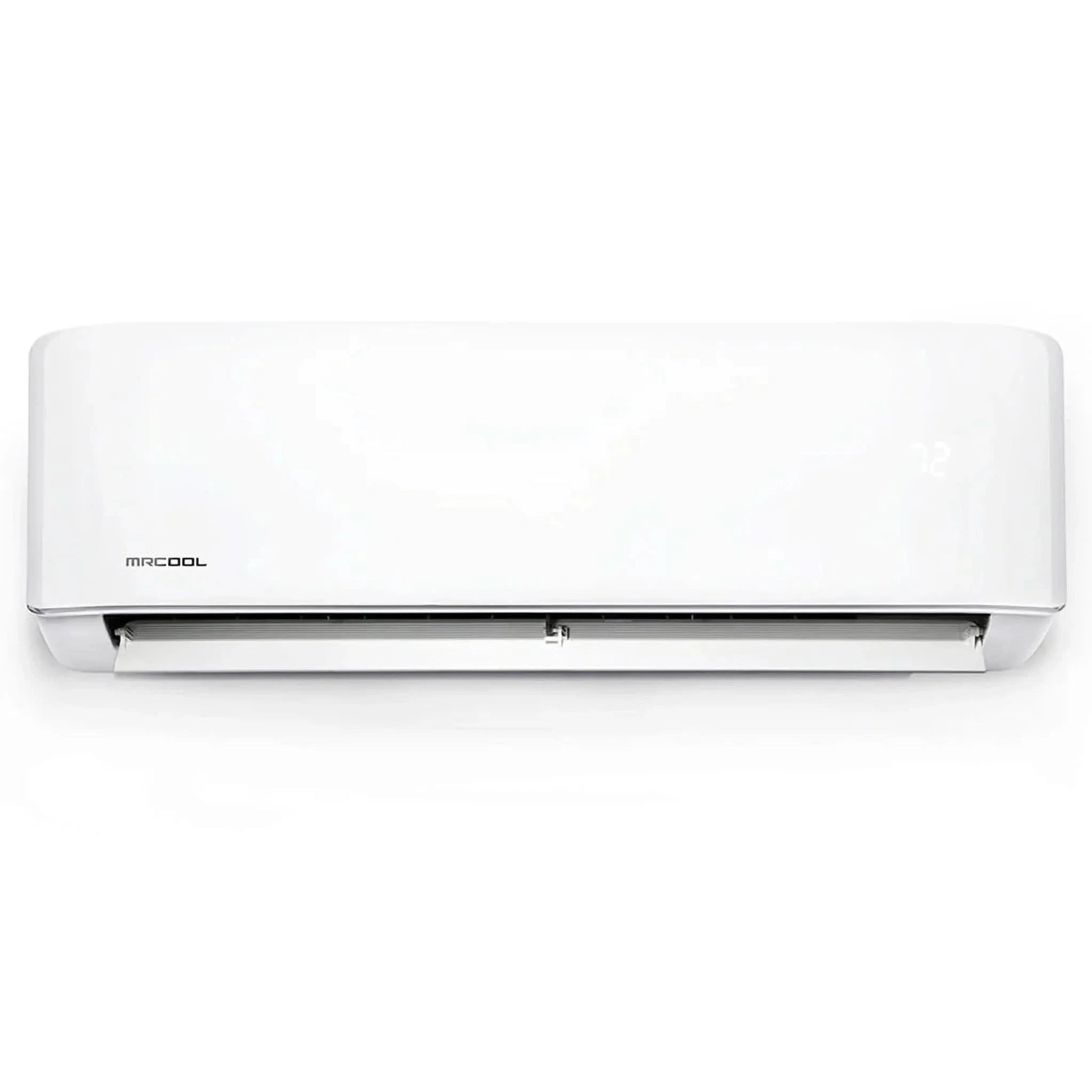

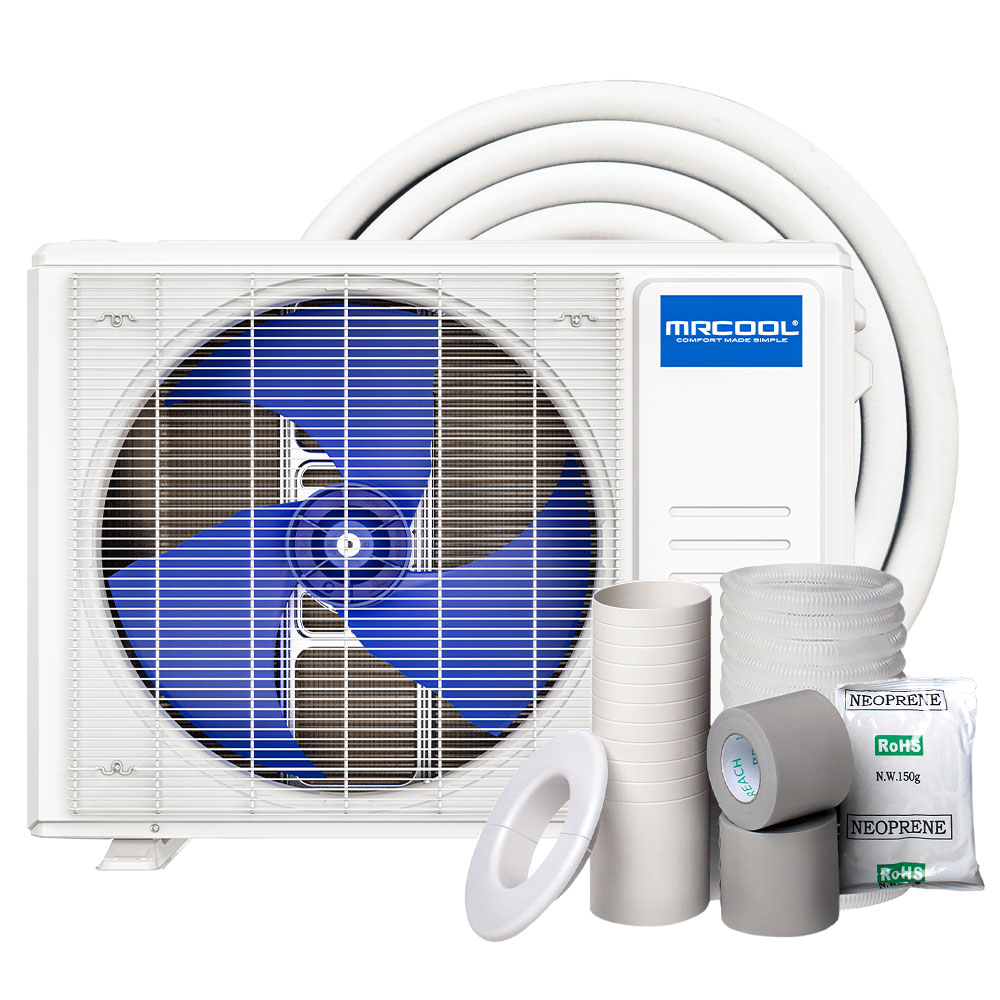

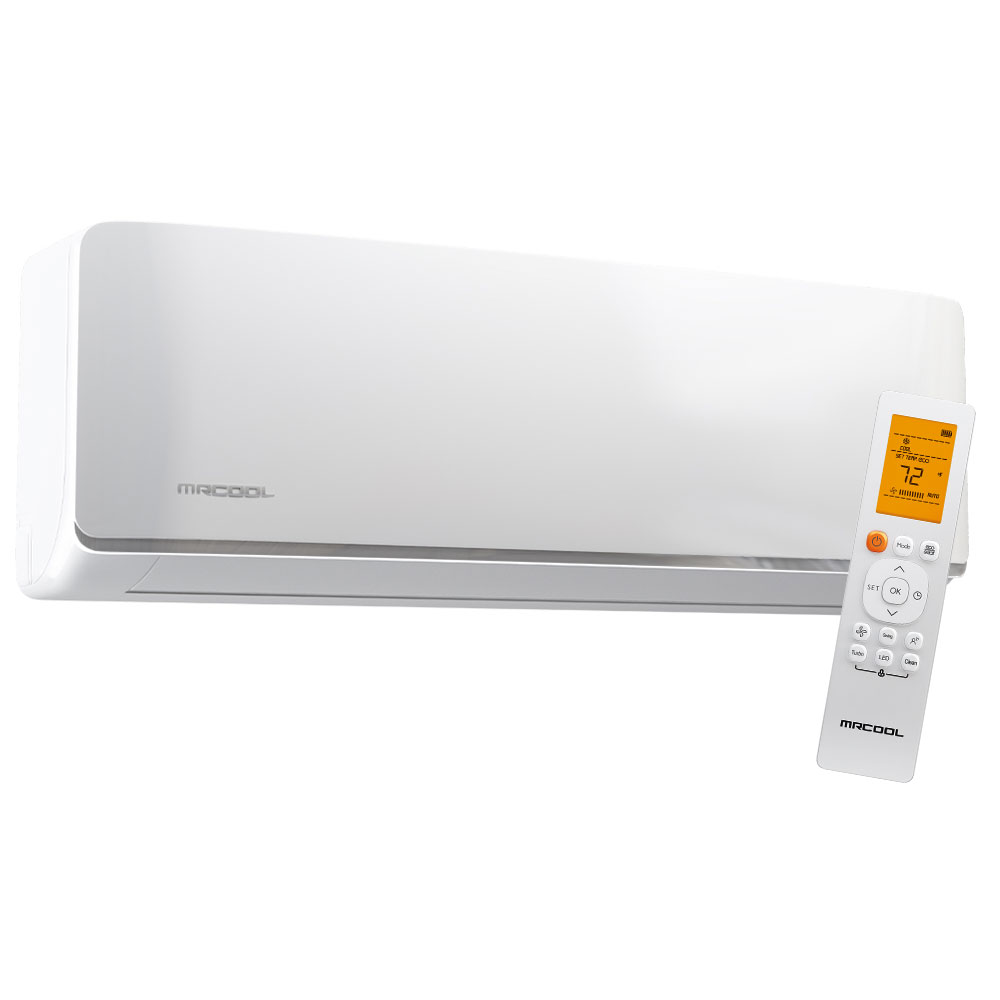

Mrcool A-12-HP-WMAH-230D-O Advantage 5th Gen 12k BTU Air Handler

Product Description

The MRCOOL A-12-HP-WMAH-230D-O Advantage 5th Gen 12k BTU Air Handler is engineered with a 21.3 SEER2 rating, ensuring high efficiency. Designed for professional installation, it combines reliability, energy efficiency, and quiet operation. The integrated WiFi control module allows convenient management via the SmartHVAC app, Amazon Alexa, or Google Assistant. Operates using R-454B refrigerant for eco-friendly cooling.

• 21.3 SEER2 rating for high efficiency
• Integrated WiFi control module for smart control
• Operates using R-454B refrigerant

Product Highlights

This MRCOOL Advantage air handler offers efficient, eco-friendly, and smart climate control for your home, with convenient control options.

Product Information

Standard Information

• Brand: MRCOOL
• Manufacturer Part Number: A-12-HP-WMAH-230D-O

Technical Specifications

• Brand: MRCOOL
• MPN: A-12-HP-WMAH-230D-O
• UPC: 840255586900
• Model: A-12-HP-230D-O
• Configuration: Wall Mounted
• Bundle Avg Coverage Area: 500 - 600 Sq Ft
• Bundle Cooling Capacity: 1 Ton
• Bundle Cooling Efficiency (SEER2): 21.3
• Heat Pump Efficiency (HSPF2): 7
• Series: Advantage
• Zones: 1
• Popular Applications: Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
• Region Compatibility: Nationwide
• Product Height (in): 7.44
• Product Length (in): 11.69
• Air Flow Direction: Horizontal
• Product Width (in): 31.57
• Blower Motor: Variable Speed
• Line Set Connection Type: Flared
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 25 amps
• Refrigerant: R-454b
• Suction Line Size: 5/8 inch
• System Application Type: Ductless Split Systems
• Voltage: 240
• Warranty: 1 Year Parts, 2 Year Compressor
• Type: Air Handler
• Refrigerant Type: R-454B
• Electrical Phase: 1-Phase
