Product Description

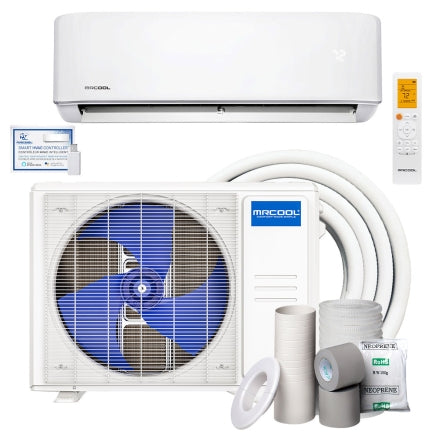

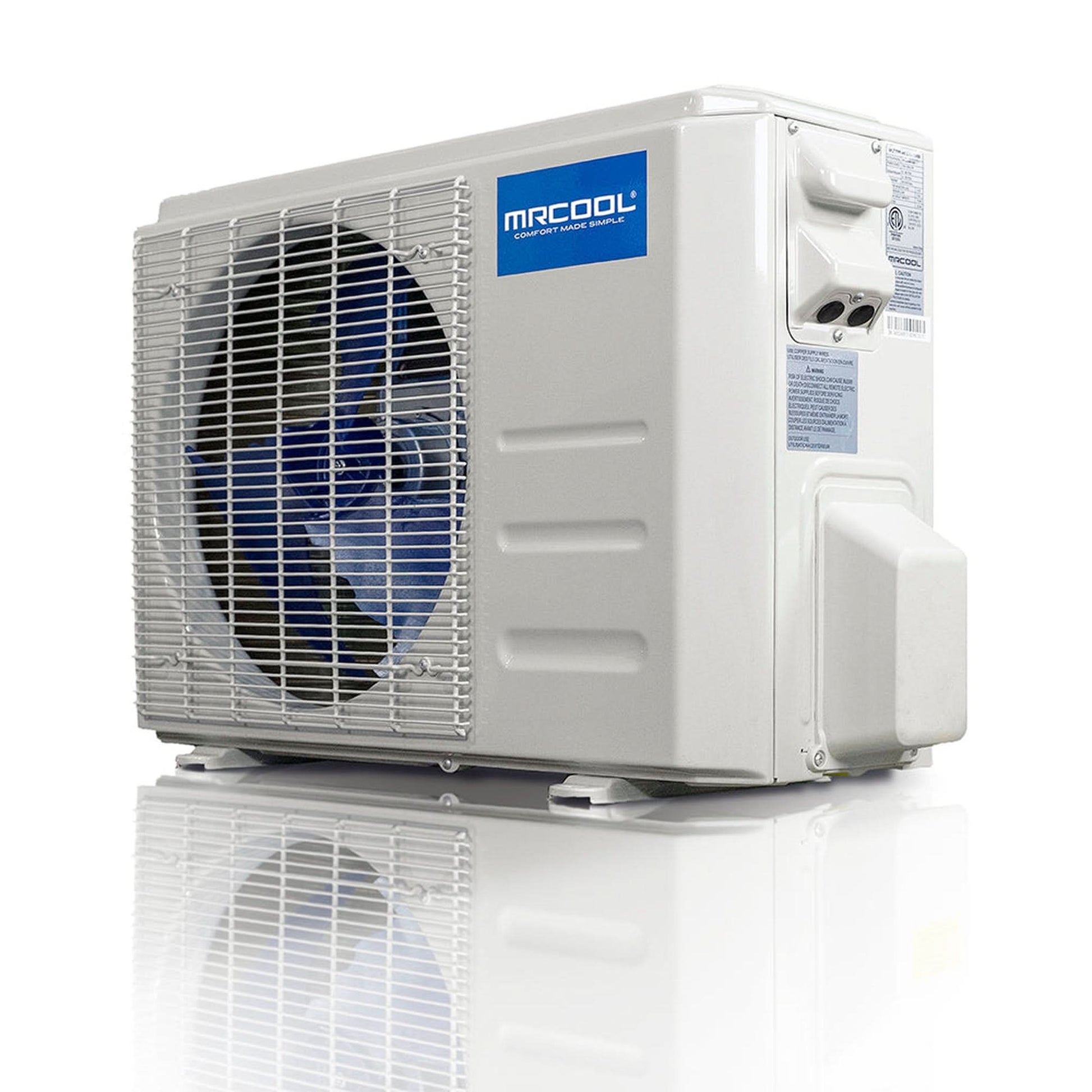

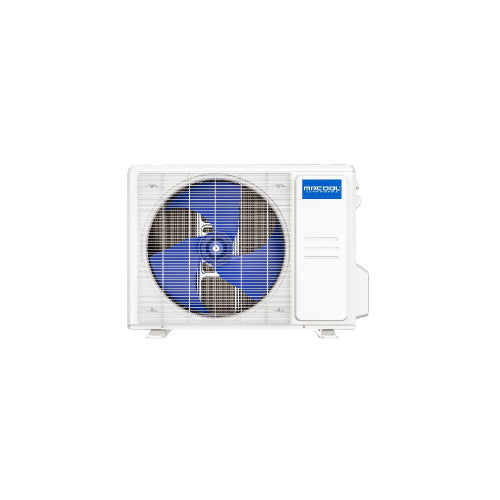

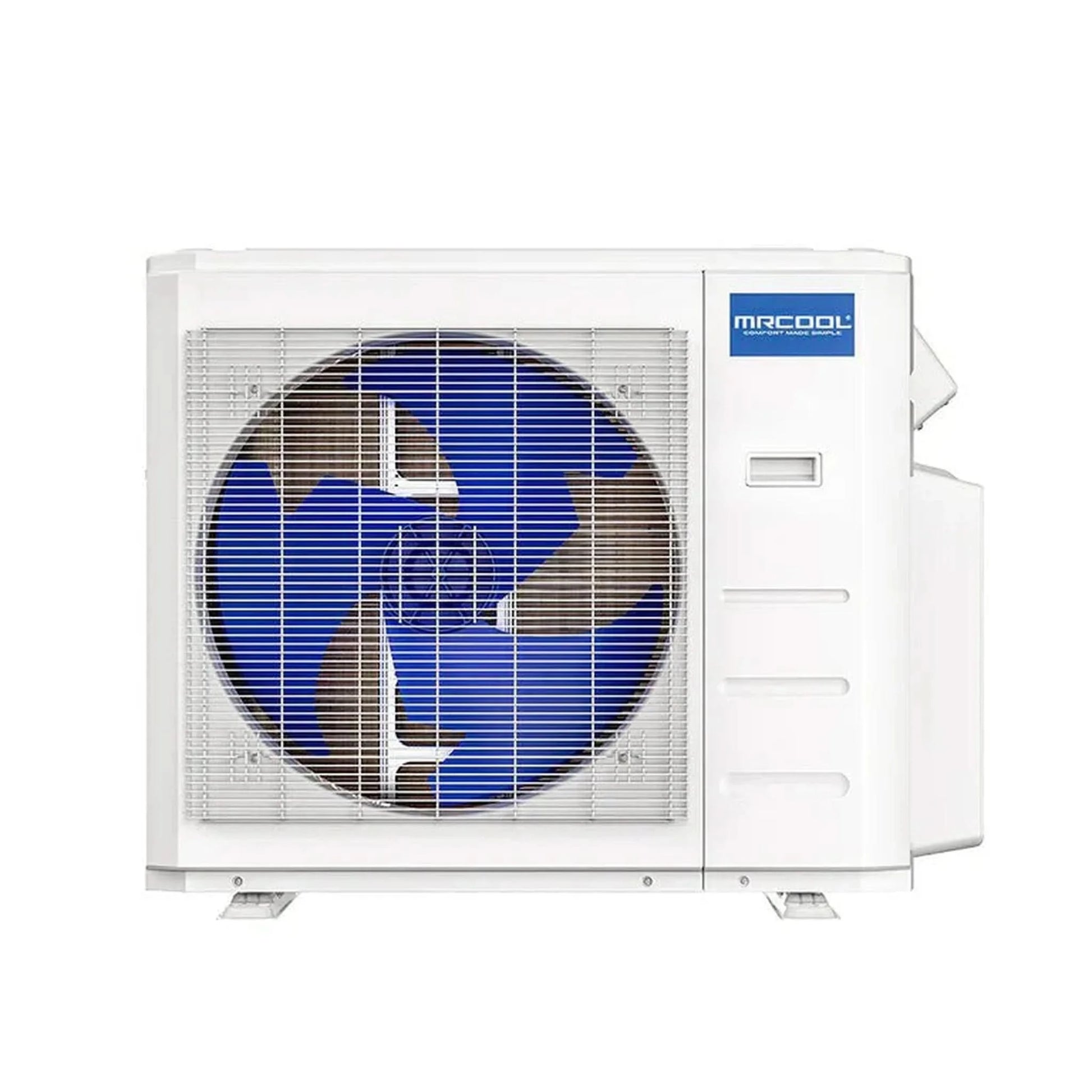

The MRCOOL A-12-HP-C-115D-O Advantage 5th Gen 12k BTU 115V Condenser delivers efficient comfort. With a SEER2 rating of 21.2, this condenser uses R-454B refrigerant and operates on 115V power. It features integrated WiFi for smart-home control with Amazon Alexa and Google Assistant. Designed for professional installation and quiet operation at approximately 54 dB(A).
- High Efficiency: SEER2 21.2 helps reduce energy usage and operating costs.
- 115V Operation: Runs on standard 115V / 1-Phase / 60Hz power for flexible applications.
- Gold Fin™ Condenser: Corrosion-resistant coating stands up to coastal and high-humidity environments.
Product Highlights
This MRCOOL condenser provides efficient and quiet operation, smart home integration, and durable construction for long-lasting performance.
Product Information
Standard Information
-
Brand: MRCOOL
-
Manufacturer Part Number: A-12-HP-C-115D-O
Technical Specifications
-
Brand: MRCOOL
-
MPN: A-12-HP-C-115D-O
-
UPC: 840255586818
-
Capacity: 12,000 BTU (1 Ton)
-
SEER2 Efficiency: 21.2
-
Voltage: 115V
-
Refrigerant: R-454B
-
Sound Level: ~ 54 dB(A) (quiet operation)
-
Compatibility: MRCOOL Advantage indoor air handler (sold separately)
-
Installation: Licensed HVAC Technician Required
-
Warranty (with registration & pro install): 2-Year Compressor / 1-Year Parts / 1-Year Remote
-
Configuration: Wall Mounted
-
Bundle Avg Coverage Area: 500 - 600 Sq Ft
-
Bundle Cooling Capacity: 1 Ton
-
Heat Pump Efficiency (HSPF2): 6.7
-
Series: Advantage
-
Zones: 1
-
Popular Applications: Game Room, Garage, Guest Room, Man Cave, Server Room, Sunroom
-
Region Compatibility: Nationwide
-
Product Height (in): 7.44
-
Avg Coverage Area: 500 - 600 Sq Ft
-
Product Length (in): 11.69
-
Compressor: Inverter
-
Product Width (in): 31.57
-
Electrical Phase: 1-Phase
-
Line Set Connection Type: Flared
-
Liquid Line Size: 1/4 inch
-
Max Overcurrent Protection: 20 amps
-
Suction Line Size: 3/8 inch
-
System Application Type: Ductless Split Systems
-
Warranty: 1 Year Parts, 2 Year Compressor
-
Air Flow Direction: Horizontal
-
Blower Motor: Variable Speed
-
Cooling Capacity: 12000 BTU/H
-
Heating Capacity: 12000 BTU/H
-
Highest Decibel Rating: 54 dB-A
-
Maximum Amperage: 20 Amp
-
Maximum Voltage: 115V
-
Room Size: 550 Sq Ft
