Advanced Drainage Systems X2-1200100 Poly Pe Pipe 200 Psi

Product Description

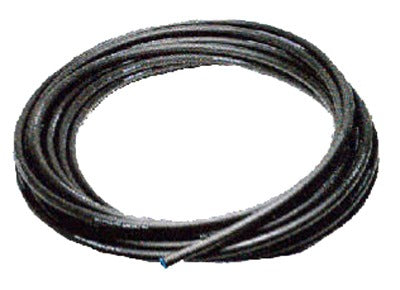

The ADVANCED DRAINAGE SYSTEMS X2-1200100 is a 1-inch polyethylene (PE) pipe rated at 200 psi, supplied in a 100-foot coil. Built to SIDR 9 dimensional standards and manufactured from 4710 better-grade PE raw material, this pipe is engineered for pressure-rated water service applications. The 4710 material designation indicates a high-density polyethylene compound meeting ASTM cell classification requirements for pressure piping. Licensed plumbers and water service installers use this pipe in underground and above-grade installations where a flexible, corrosion-resistant pressure line is required.

This pipe is suited for potable water service lines, rural water distribution, irrigation mains, and well-pump discharge runs. The flexible coil format simplifies trenching and reduces the number of fittings required on long straight runs. At 200 psi working pressure with an SIDR 9 wall ratio, it handles the demands of residential and light commercial water service without the brittleness associated with rigid thermoplastic alternatives.

Key Features

• 200 psi pressure rating for demanding water service applications
• SIDR 9 standard inside dimension ratio for consistent wall thickness
• 4710 better-grade PE raw material meeting ASTM compound requirements
• 1-inch diameter x 100-foot coil reduces fittings on long runs
• Flexible polyethylene construction resists corrosion and scale buildup

Compatibility

Designed as an OEM-style replacement and new-installation pipe for residential and light commercial potable water service, irrigation mains, and well-pump discharge lines using 1-inch insert or compression fittings rated for SIDR 9 polyethylene pipe.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC guidelines for plastic pressure piping. Shut off and depressurize the water supply before making any connections. Use insert fittings and stainless clamps or compression fittings rated for polyethylene pipe at the stated pressure class. Avoid kinking the coil during unrolling; use a pipe reel or uncoil flat on the ground before pulling into the trench.

Technical Specifications

• Pipe Size: 1 inch
• Length: 100 feet
• Pressure Rating: 200 psi
• Dimension Standard: SIDR 9
• Material: Polyethylene (PE) 4710 Better Grade
• Package Weight: 26 pounds
• Package Quantity: 1

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: X2-1200100
