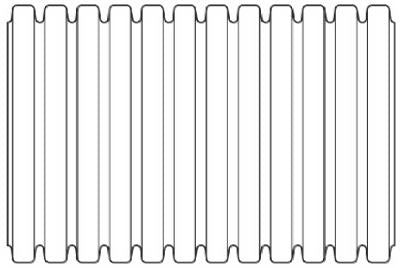

Advanced Drainage Systems 4540010 Solid Drain Tube 4x10

Product Description

The ADVANCED DRAINAGE SYSTEMS 4540010 is a corrugated solid polyethylene drainage tube measuring 4 inches in diameter and 10 feet in length. Unlike perforated drainage pipe, this solid-wall construction prevents water infiltration along the tube body, making it suited for conveying water away from a specific point rather than collecting it along its run. Plumbers, site contractors, and drainage installers use this tube for storm drainage, downspout extensions, french drain outlets, and subsurface water conveyance in both residential and light commercial applications. The corrugated profile provides flexibility for routing around obstacles while maintaining structural integrity under typical burial loads.

This tube is appropriate for residential and light commercial drainage installations where a 4-inch solid conveyance pipe is required. Common applications include foundation drain outlets, gutter downspout extensions, yard drainage trenches, and driveway culvert connections. It is sold in individual 10-foot sections and packaged in quantities of 10 units per package, making it practical for projects requiring multiple runs. Installation is straightforward for plumbing and site drainage contractors working on stormwater management and surface water control projects.

Key Features

• Solid wall construction prevents unwanted water infiltration along the pipe body
• Corrugated profile allows flexible routing through tight or irregular paths
• 4-inch diameter accommodates standard residential and light commercial drainage flow volumes
• 10-foot length per section suits a wide range of trench and conveyance layouts
• Polyethylene material resists corrosion and soil chemical degradation

Compatibility

Designed as an OEM-style replacement and standard-use component compatible with 4-inch corrugated drainage fittings, couplers, and outlet assemblies typical in residential and light commercial stormwater drainage systems.

Installation Notes

Installation is typically performed by licensed plumbers or site drainage contractors in accordance with local stormwater and grading codes. Ensure the trench bed is properly graded to maintain consistent flow direction before laying the tube. Connections to fittings or catch basins should be secured with approved couplers rated for corrugated polyethylene pipe. Avoid sharp bends that exceed the tube's designed flex radius, as kinking can restrict flow.

Technical Specifications

• Diameter: 4 inches
• Length: 10 feet
• Material: Polyethylene
• Wall Type: Solid corrugated
• Package Quantity: 10 units per package
• Weight: 30 pounds

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: 4540010
