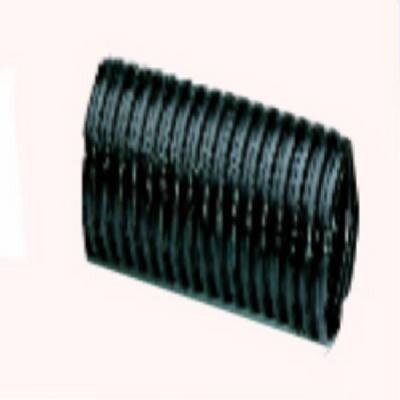

Advanced Drainage Systems 03010100HH Slotted Drainage Tube

Product Description

The ADVANCED DRAINAGE SYSTEMS 03010100HH is a slotted corrugated polyethylene drainage tube designed to collect and redirect subsurface water away from structures, landscapes, and utility installations. The tube measures 3 inches in diameter and 100 feet in length, providing substantial run coverage in a single coil. The longitudinal slots along the tube wall allow groundwater to enter and flow toward a designated outlet. Corrugated construction gives the tube flexibility for routing around obstacles while maintaining structural integrity under backfill loads. This product is used by plumbing contractors, site utility installers, and landscape drainage professionals.

This drainage tube is suited for residential and light commercial subsurface drainage applications. Common installations include French drain systems, footing drains, yard drainage runs, and perimeter foundation drainage. The 100-foot length reduces the number of couplings needed on longer runs. It is typically installed in a gravel-filled trench, often wrapped with filter fabric to prevent sediment infiltration into the slots.

Key Features

• 3-inch diameter slotted profile allows continuous groundwater intake along the full run
• 100-foot coil length minimizes coupling points on extended drainage installations
• Corrugated polyethylene construction provides flexibility and resistance to backfill compression
• Lightweight coil format simplifies handling and transport to the job site
• Compatible with standard 3-inch corrugated drainage fittings and couplings

Compatibility

Designed as an OEM-style replacement and standard-fit option for 3-inch corrugated subsurface drainage systems using slotted polyethylene tubing.

Installation Notes

Installation is typically performed by plumbing contractors or site utility crews following local drainage and grading codes. Before installation, confirm trench depth and slope to ensure positive drainage to the outlet point. The tube should be bedded in clean crushed stone and wrapped in geotextile filter fabric where soil conditions allow fine particles to migrate. Avoid kinking the tube during uncoiling, as sharp bends can restrict flow and compromise the corrugated wall.

Technical Specifications

• Diameter: 3 inches
• Length: 100 feet
• Material: Corrugated Polyethylene
• Tube Style: Slotted
• Weight: 19.2 pounds
• Package Quantity: 1

Standard Information

• Brand: ADVANCED DRAINAGE SYSTEMS
• Manufacturer Part Number: 03010100HH
