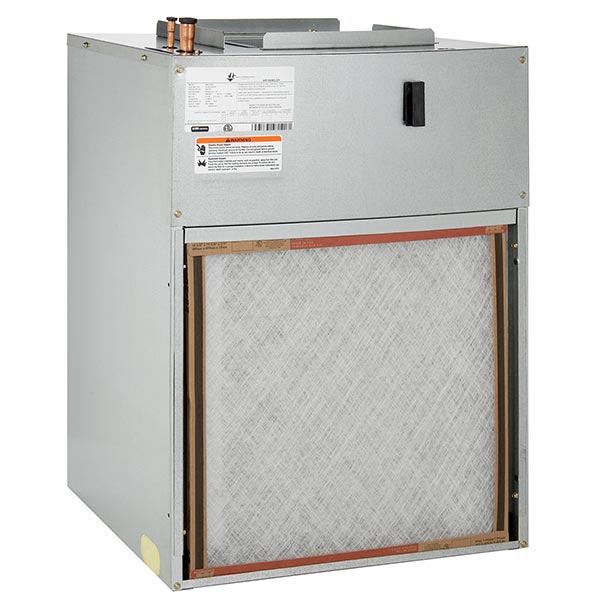

Advanced Distributor Products SM312410 S Series 1.5-2.0 Ton Compact Wall Mount Cased Front Return Air Handler, 10kW

Product Description

The Advanced Distributor Products SM312410 is a compact wall mount air handler designed for efficient heating and cooling. It supports up to two tons and features a front return air intake.

• Lightweight design for easy installation.
• Top refrigerant connections simplify setup.
• Factory-installed electric heat increases versatility.

Product Highlights

This air handler is ideal for residential settings, offering reliable performance and ease of access for maintenance.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• MPN: SM312410

Technical Specifications

• Control Type: 3-Speed
• Filter Size: 20 x 20 inches
• Flow Rate: 800 cfm
• Heating Capacity: 24000 Btu/hr
• Includes: Slide-In Air Filter
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Material: Galvanized Steel
• Metering Device: Piston
• Motor Type: Permanent Split Capacitor
• Nominal Capacity: 24 MBtu/hr
• Power Source: 208/240 V 60 Hz, 1 ph
• Refrigerant Type: R-410A
• Series: S Series
• Slab Number: M3
• Type: Compact Wall Mount Closed
• Warranty: Limited 10 years
