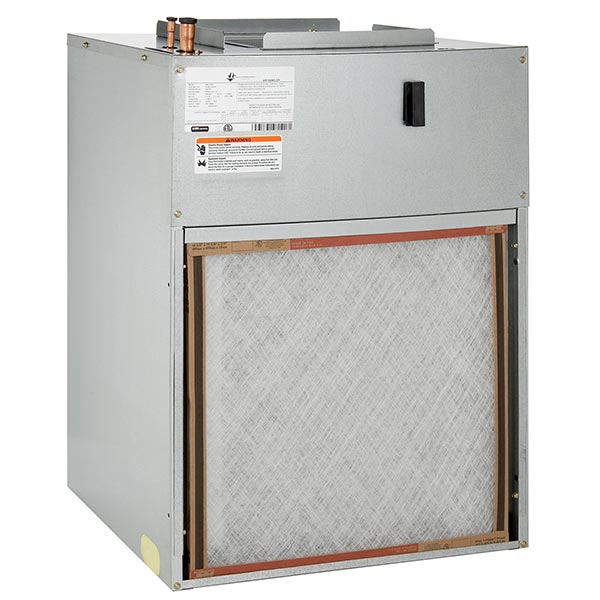

Advanced Distributor Products SM312407 S Series 1.5-2.0 Ton Compact Wall Mount Cased Front Return Air Handler, 7kW

Product Description

The Advanced Distributor Products SM312407 is a compact wall mount cased front return air handler designed for residential and light commercial use. This unit has a heating capacity of twenty-four thousand BTU per hour and is ideal for installation in spaces with limited ceiling height.

• Lightweight design
• Top refrigerant connections
• Factory-installed electric heat

Product Highlights

This air handler is energy efficient and has a compact formation suited for smaller spaces. It operates with R-410A refrigerant, ensuring efficient performance.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• Part Number: SM312407

Technical Specifications

• Control Type: 3-Speed
• Filter Size: 20 x 20 inches
• Flow Rate: 800 cfm
• Heating Capacity: 24000 Btu/hr
• Includes: Slide-In Air Filter
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 3/4 inches
• Material: Galvanized Steel
• Metering Device: Piston
• Motor Type: Permanent Split Capacitor
• Nominal Capacity: 24 MBtu/hr
• Power Source: 208/240 V 60 Hz, 1 ph
• Refrigerant Type: R-410A
• Series: S Series
• Slab Number: M3
• Type: Compact Wall Mount Closed
• Warranty: Limited 10 years
