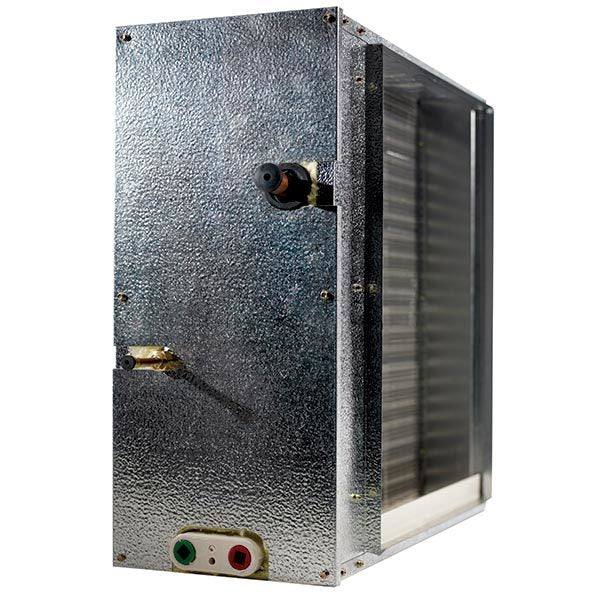

Advanced Distributor Products HH61148A365A2102AP HHSeries 3.5-4.0 Ton Horizontal Flow Slab Evaporator Coil

Product Description

The Advanced Distributor Products HH61148A365A2102AP is a horizontal flow slab evaporator coil designed for 3.5 to 4.0 ton cooling systems. It features a high efficiency lanced fin design to improve heat transfer and increase system efficiency.

• High efficiency lanced fin design
• Coils tested for integrity and durability
• Includes Microban antimicrobial additive

Product Highlights

This evaporator coil is ideal for HVAC systems needing robust performance and efficiency.

Product Information

Standard Information

• Brand: Advanced Distributor Products
• MPN: HH61148A365A2102AP

Technical Specifications

• Air Flow Type: Horizontal
• Airflow Direction: Bi-Directional
• Cabinet Depth: 10 inches
• Cabinet Opening Height: 21-1/4 inches
• Cabinet Opening Width: 36-5/8 inches
• Color/Finish: Embossed
• Enclosure Type: Cased
• Line Size (Liquid): 7/8 inches
• Line Size (Suction): 3/8 inches
• Metering Device: Piston
• Nominal Capacity: 1.5-3.0 Ton
• Piston Size: TXV Access Port
• Product Code: Cased H
• Refrigerant Type: R-410A
• Series: HH Series
• Slab Number: H61
• Tubing Material: Copper
• Warranty: Limited 5 years
