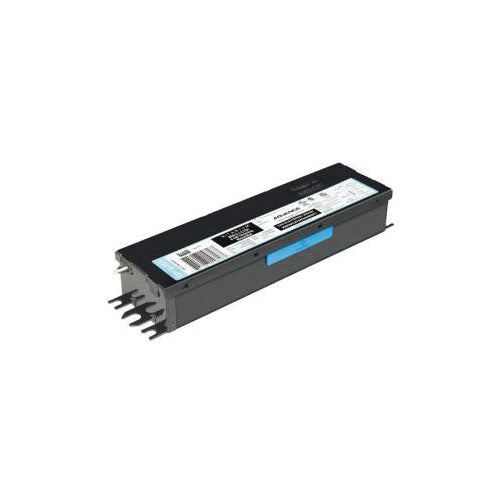

Advance XI095C275V054BSF1M LED Driver 120 to 277 VAC Input 20 to 54 V Output 95 W

Product Description

Advance XI095C275V054BSF1M is an LED driver designed for efficiency and reliability. It operates on an input voltage range of 120 to 277 VAC and offers an output voltage from twenty to fifty-four volts. This model has a power rating of ninety-five watts, suitable for various lighting applications.

• Wide input voltage range from 120 to 277 VAC
• Output voltage adjustable from 20 to 54 V
• Power rating of 95 W for effective lighting control

Product Highlights

This LED driver is designed for outdoor and industrial applications, featuring a robust design. It includes SimpleSet technology, allowing for easy programming and flexibility in luminaire designs.

Product Information

Standard Information

• Brand: Advance
• MPN: XI095C275V054BSF1M

Technical Specifications

• Input Voltage: 120 to 277 VAC
• Output Voltage: 20 to 54 V
• Power Rating: 95 W
• Amperage Rating: 0.38 to 0.89 A Input / 0.1 to 2.75 A Output
• Power Factor: >0.95
• Temperature Rating: -40 to 55 °C
• Lifetime: 50000+ hours
• Surge Rating: 6 kV
• Dimensions: 9.47 in Length, 2.35 in Width, 1.68 in Height
