ADVANCE IOP2P59N35I 51W BALLAST ELE

Product Description

The ADVANCE IOP2P59N35I is a fluorescent electronic ballast with a power rating of fifty-one watts. It supports two lamps with a lamp wattage of fifty-nine watts. The input voltage ranges from one hundred twenty to two hundred seventy-seven volts AC. The IOP2P59N35I provides reliable operation with a high power factor and minimal total harmonic distortion.

• Fluorescent Electronic Ballast
• Input Voltage: 120 to 277 Volt AC

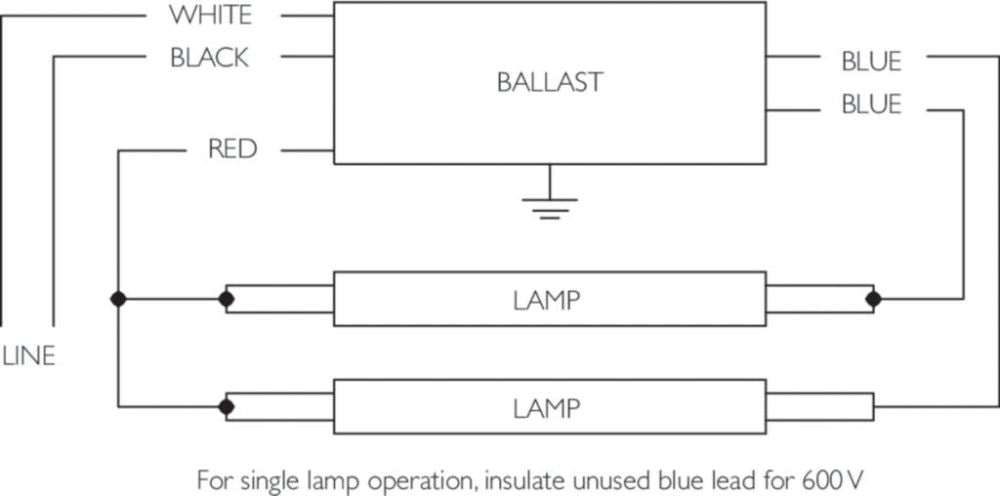

• Wiring Type: Parallel

Product Highlights

This ballast is designed for outdoor applications, suitable for use in a variety of environments requiring consistent light output. It is UL and CSA approved, and is compliant with RoHS regulations.

Product Information

Standard Information

• Manufacturer: ADVANCE
• UPC: 78108713562

Technical Specifications

• Number of Lamps: 2
• Input Current: 0.41 to 0.95 Amp
• Frequency Rating: 50/60 Hertz
• Power Factor: 0.98
• Ballast Factor: 0.87
• Maximum THD: 10 Percent
• Minimum Starting Temperature: 32 Deg F

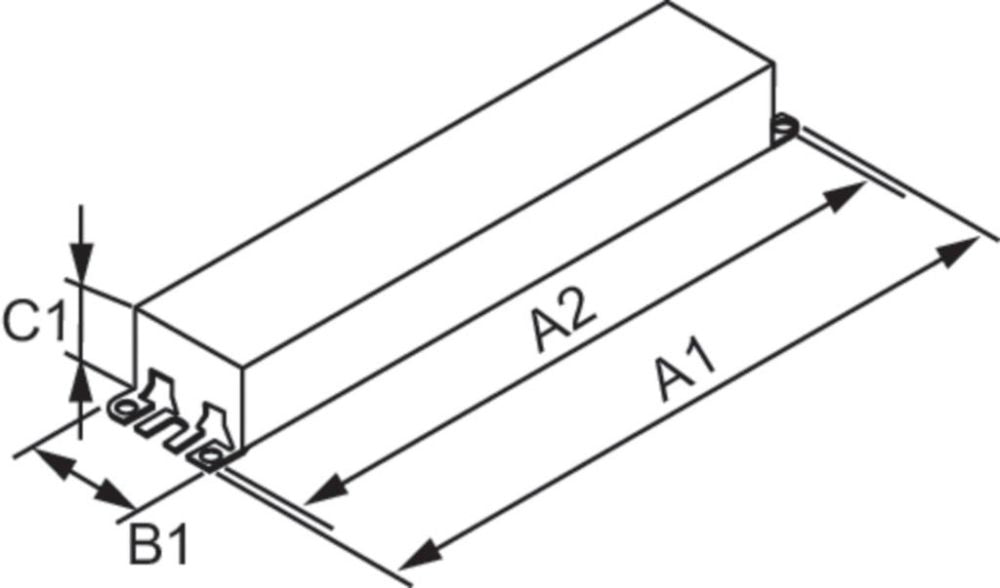

• Size: 9.5 Inch Length x 1.3 Inch Width x 1 Inch Height
