Ads 445AA 45 Degree Snap Elbow 4 Inch Hdpe

Product Description

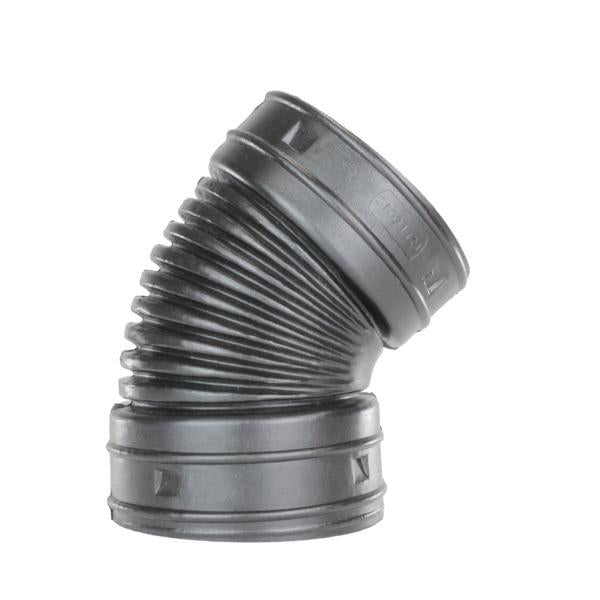

The ADS 445AA is a 45-degree snap elbow fitting manufactured from high-density polyethylene (HDPE) for use in single wall corrugated drainage pipe installations. Sized for 4-inch pipe, it provides a secure snap-fit connection that requires no additional fasteners or adhesives. At 7.9 inches in length, 7.9 inches in diameter, and 5.1 inches in height, the fitting is engineered for directional changes in subsurface drainage systems. The HDPE construction resists corrosion and chemical degradation common in stormwater and agricultural drainage environments. Plumbers, site contractors, and drainage installers handle this type of fitting in both residential and light commercial applications.

The 445AA is suited for installations where a 45-degree directional change is needed in single wall corrugated pipe runs. Typical applications include yard drainage, foundation drainage, roadside culverts, and agricultural field drainage. The snap-fit design allows for fast field assembly without tools, reducing labor time on trench and pipe installations. This fitting is appropriate for gravity-flow drainage systems where pipe alignment must shift around obstacles or grade changes.

Key Features

• 45-degree snap-fit connection for quick, tool-free assembly
• Sized for 4-inch single wall corrugated pipe
• HDPE construction resists corrosion, chemicals, and soil conditions
• Compact profile: 7.9 inches long, 7.9 inches in diameter, 5.1 inches tall
• Domestic manufacture

Compatibility

Designed for use with 4-inch single wall corrugated drainage pipe. Verify pipe manufacturer and profile match before installation, as corrugation pitch varies between pipe brands.

Installation Notes

Installation is performed by plumbers or site drainage contractors working on gravity-flow stormwater or subsurface drainage systems. Ensure the pipe ends are clean and free of debris before snapping the fitting into place. Confirm proper alignment and grade before backfilling to prevent joint separation under soil load. Follow local plumbing and site drainage codes for burial depth and bedding requirements.

Technical Specifications

• Material: HDPE
• Pipe Size: 4 inches
• Type: 45 Degree Snap Elbow
• Compatible Pipe: Single Wall Corrugated Pipe
• Length: 7.9 inches
• Diameter: 7.9 inches
• Height: 5.1 inches
• Origin: Domestic

Standard Information

• Brand: ADS
• Manufacturer Part Number: 445AA
