Ads 0699WT dual wall - bends 90 deg angle

Product Description

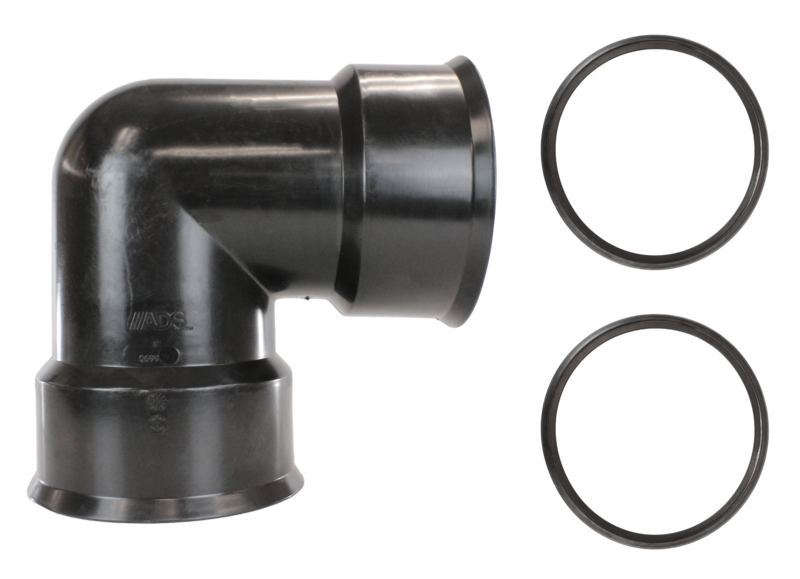

The ADS 0699WT dual wall injection molded and fabricated bends are available in soil tight (ST) and water tight (WT) and are readily available to service most stormwater management projects. It is designed for use with N-12 Series 65 Pipe, 6 in Size, 90 deg Angle, and HDPE.

• Available in soil tight (ST) and water tight (WT)
• Readily available to service most stormwater management projects
• Injection-molded fitting

Product Highlights

The ADS 0699WT dual wall bends are ideal for stormwater management projects.

Product Information

Standard Information

• Brand: ADS
• Manufacturer Part Number: 0699WT

Technical Specifications

• Main sku: 0699WT
• Material: HDPE
• Specifications: 6 in Size, 90 deg Angle
• Suitable For Use With: N-12 Series 65 Pipe
• Type: Bell / Bell Water Tight
• Manufacturer: ADS
• Manufacturer #: 0699WT
• Diameter In (mm): 6" (150)
• Package Quantity: 5
• Product Code: 0699WT
• Water Tight: Water Tight
• Angle: 90 deg
• ASTM: ASTM F-2306
• Application: Drainage, Waterworks
• Clean Bagged: No
• Elbow Degree: 90
• End Connection 1: Hub
• End Connection 2: Hub
• End Connections: Hub
• FM Approved: No
• Fitting Size 1: 6
• Fitting Size 2: 6
• Fitting Sizes: 6 in
• Fitting Type: Elbow
• Material Type: HDPE
• NSF Certified: No
