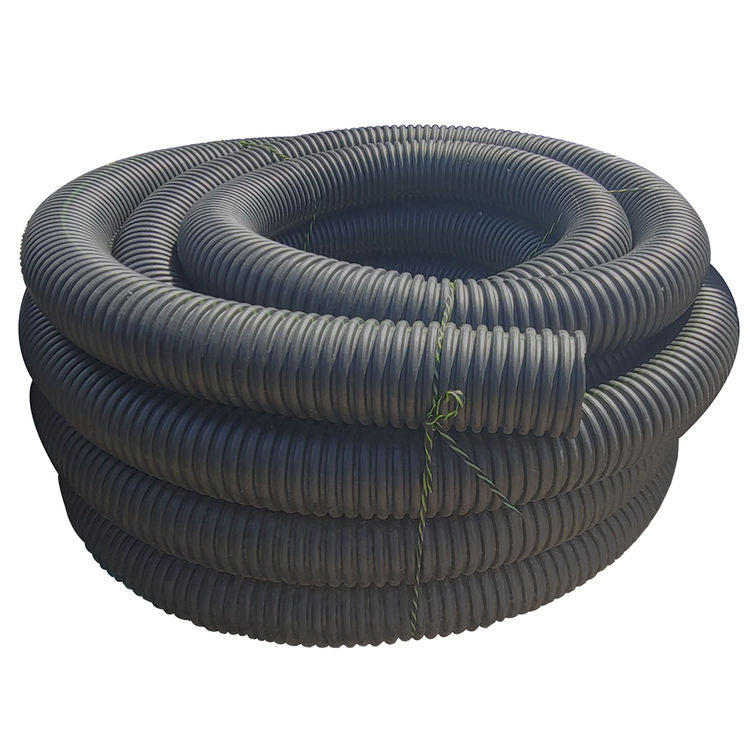

Ads 06510100 Single Wall Pipe 6 in x 100 ft

Product Description

The ADS 06510100 is a HDPE heavy-duty corrugated plain end single wall pipe. This pipe is flexible and easier to install than other types of pipe. It is used for agriculture drainage, sub irrigation water management needs, culverts, paths and walkway drains. It is an economical solution to residential storm water drainage problems.

• Flexible, lightweight, easy-to-use
• Great return on your investment
• Increased crop production/yields

Product Highlights

The ADS single wall pipe is ideal for drainage projects where flexibility, lightweight and low cost are important.

Product Information

Standard Information

• Brand: ADS
• Manufacturer Part Number: 06510100
• Country of Origin: United States

Technical Specifications

• Connection Type: Plain-End x Plain-End
• Length: 100 ft
• Material Specifications: AASHTO M 252, AASHTO M 294, ASTM D2321, ASTM D3350, ASTM F405
• Material: HDPE
• Nominal Size: 6 in
• Outside Diameter: 7 in
• Type: Heavy-Duty, Corrugated
• Inside Pipe Diameter: 6 in
• Operating Temperature: 32 to 132 deg F
• Material Standard: ASTM F667, ASTM F405
• Nominal Pipe Size: 6 in
• Sock Included: Yes
• Connection Size: 6 in.
• Number of Openings: 2 Openings
• Maximum Allowable Cover: 100 ft.
• Shape: Round
• Item: Pipe
• Series: Solid
• Suitable For Use With: Drainage Projects
• Includes: Downspouts Run Off, Foundation, Window Well Drains & Roadway Culverts
• Soil Tight/Water Tight/Highway Grade: Highway Grade
• Regulated: No
• Brand Name: ADS
• Standard: ASTM F405
