Adp s36l155 Uncased A-coil 3 Ton Left Hand Upflow

Product Description

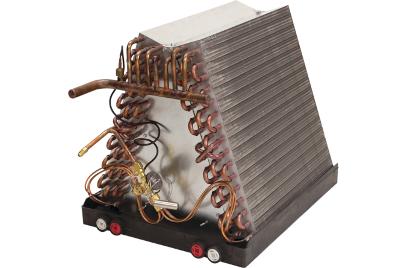

The ADVANCED DISTRIBUTOR PRODUCTS s36l155 is an uncased aluminum A-coil designed for left-hand upflow evaporator service installations. Rated at 36 MBTU/Hr and sized for 3-ton heat pump and air conditioning systems, this coil handles up to 1,200 CFM of airflow. Measuring 15.5 inches wide by 19.5 inches deep by 15 inches tall, it is built as a service replacement coil. The aluminum construction offers corrosion resistance in humid operating environments. Licensed HVAC technicians install this coil as a direct service replacement during system maintenance or refrigerant-circuit repairs.

The s36l155 is intended for residential and light-commercial upflow air handler applications. Its left-hand orientation suits specific cabinet configurations where the suction and liquid line connections are required on the left side. Rated for use with 3-ton heat pump and air conditioning systems, it supports systems moving up to 1,200 CFM. The uncased design allows it to be installed inside an existing air handler cabinet or coil box, making it well-suited for service and replacement work where the original cased assembly is not being fully replaced.

Key Features

• 36 MBTU/Hr capacity rated for 3-ton heat pump and air conditioner systems
• Aluminum coil construction for corrosion resistance
• Left-hand upflow orientation for specific cabinet fitment
• Uncased design fits inside existing air handler cabinets or coil enclosures
• 1,200 CFM airflow rating
• Compact footprint: 15.5 inches wide by 19.5 inches deep by 15 inches tall

Compatibility

Designed as a service replacement coil for 3-ton heat pump and air conditioner applications using a left-hand upflow uncased coil configuration.

Installation Notes

Installation must be performed by a licensed HVAC technician. Disconnect and lock out power to the air handler and outdoor unit before beginning any coil service work. The refrigerant circuit must be properly recovered, evacuated, and recharged in accordance with EPA Section 608 regulations and local code requirements. Verify line connection orientation and cabinet clearances before installing the uncased coil into the existing enclosure.

Technical Specifications

• Capacity: 36 MBTU/Hr
• Tonnage: 3 Ton
• Airflow: 1,200 CFM
• Width: 15.5 inches
• Depth: 19.5 inches
• Height: 15 inches
• Coil Material: Aluminum
• Configuration: Uncased, Left Hand Upflow
• Application: Heat Pump / Air Conditioner Service Coil

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: s36l155
