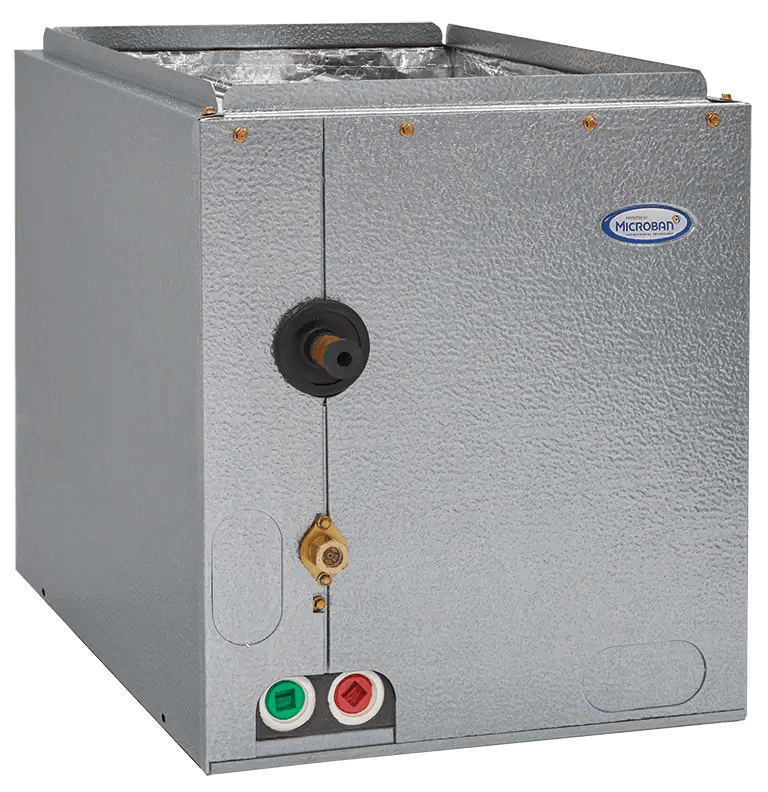

Advanced Distributor Products RE7JA30D145B1605R Cased Coil 2.5 Ton (Multi-Position)

Product Description

Advanced Distributor Products RE7JA30D145B1605R is a 2.5 ton HE Series cased evaporator coil designed for integration with systems using A2L refrigerants, including R-454B. The unit includes a factory-installed Refrigerant Detection System (RDS) and a thermal expansion valve (TXV) and supports upflow and horizontal multi-position installations. The cabinet is foil-faced and interlocking to minimize air leakage, and the coil uses all-copper tubing with a HydroTEC low water retention drain pan.

• Factory-installed RDS sensor and controller for R-454B safety compliance and thermal expansion valve (TXV) refrigeration control
• Multi-position installation capability (upflow, horizontal left or right) with cased cabinet, foil-faced insulation, and interlocking doors tested to 1% or less air leakage
• All-copper tubing with high-efficiency lanced fins, HydroTEC low water retention composite drain pan with Microban antimicrobial additive, and service-friendly access with four-screw front panel

Product Highlights

2.5 ton cased evaporator coil for R-454B with TXV, factory RDS, multi-position cabinet, and copper lanced-fin coil.

Product Information

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: RE7JA30D145B1605R
