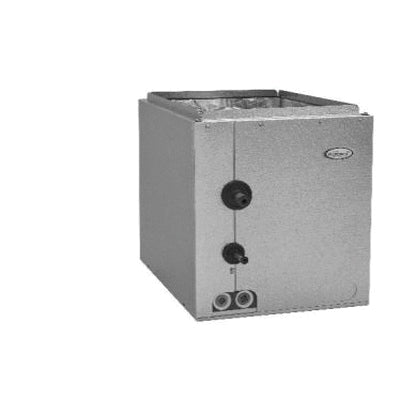

ADP RE65960C245B3105AP Evaporator Coil 60000 Btu/hr 2000 cfm

Product Description

The ADP RE65960C245B3105AP Evaporator Coil is designed for effective and efficient cooling solutions. It offers a cooling capacity of sixty thousand BTU per hour with an air flow of two thousand cubic feet per minute. This left hand cased coil is suitable for multiple positions and features copper construction for durability.

• High efficiency lanced fin design
• Microban antimicrobial additive inhibits mold and mildew growth
• Air pressure tested at five hundred psi for reliability

Product Highlights

This evaporator coil is ideal for HVAC systems using R-410A refrigerant. It incorporates advanced design features to enhance performance and ease of installation.

Product Information

Standard Information

• Brand: ADP
• MPN: RE65960C245B3105AP

Technical Specifications

• BTU Rating: 60000 Btu/hr
• CFM Rating: 2000 cfm
• Coil Type: Left Hand Cased
• Configuration: Multi-Position
• Connection Size: 7/8 in
• Connection Type: ODF
• Dimensions: 31-1/2 in H x 24-1/2 in W x 20-1/2 in D
• Domestic/Import: Domestic
• Material: Copper
• Piston Size: #93
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Suitable For Use With: A1 Refrigerants
• Temperature Rating: 450 deg F
