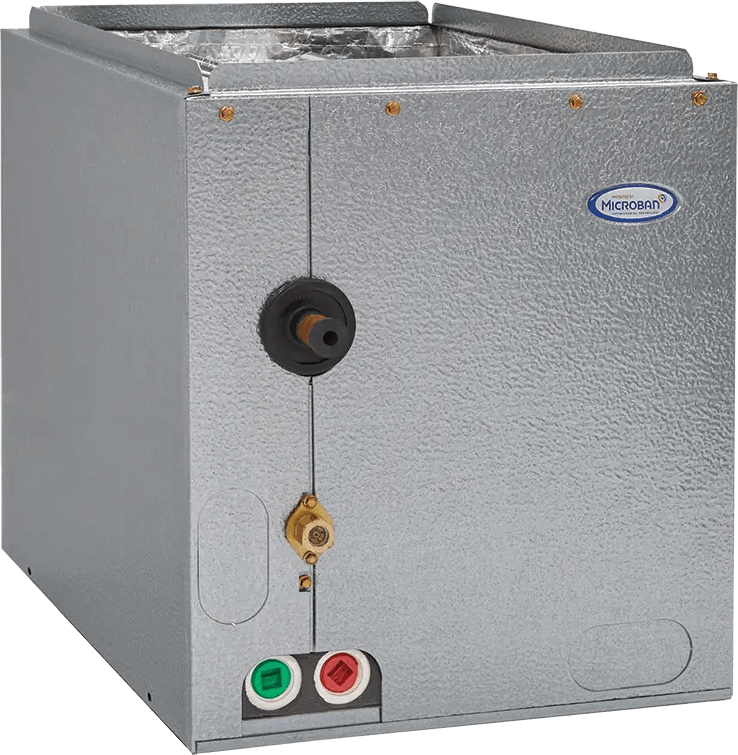

ADP RE36948C245B2505N 4.0 Ton R-454B HE Series Cased-Coil

Product Description

The ADP RE36948C245B2505N is a 4.0 ton cased evaporator coil designed for high efficiency in modern HVAC systems. This unit supports various installation options, including upflow, downflow, and horizontal positions, making it suitable for diverse settings.

• Multi-position installation: Capable of upflow, downflow, and horizontal setups.
• Compatible with low-GWP A2L refrigerants such as R-454B.
• Engineered with a high-efficiency lanced fin design for optimal thermal performance.

Product Highlights

This coil ensures system reliability and high performance, featuring a fully insulated cabinet to enhance thermal efficiency.

Product Information

Standard Information

• Brand: ADP
• Model Number: HE

Technical Specifications

• BTU Rating: 48,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Depth: 20.5 inches
• Height: 25.5 inches
• Width: 24.5 inches
• Product Weight: 64 lbs
• Refrigerant Type: R-454B
• Suction Line Size: 7/8 inches
• Refrigeration Control Type: TXV
