Adp hg51a60a200a0004n Uncased A-coil 20in Lh R-454B Txv

Product Description

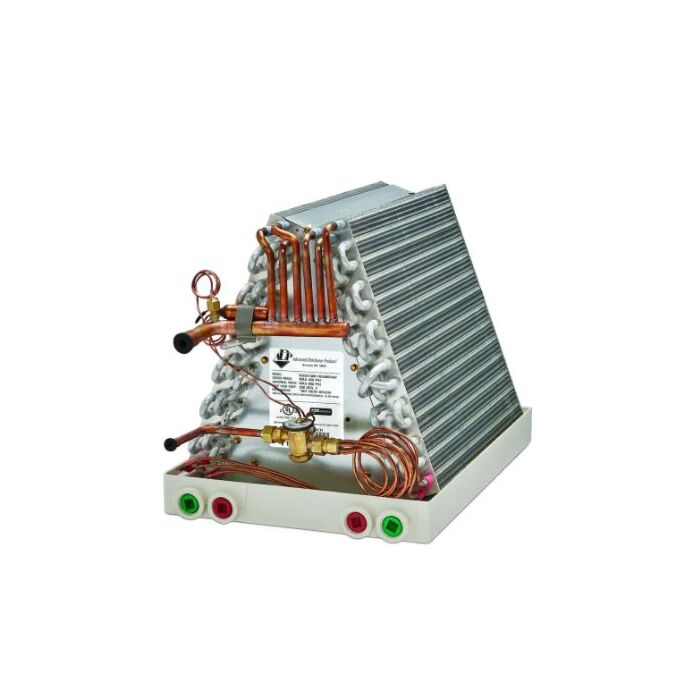

The ADVANCED DISTRIBUTOR PRODUCTS hg51a60a200a0004n is an uncased A-coil designed for split-system air conditioning and heat pump applications. It features left-hand refrigerant connections and comes factory-equipped with a thermostatic expansion valve (TXV) metered for R-454B refrigerant. At 20 inches wide, this coil fits a range of air handler and furnace configurations. The multi-position design allows installation in upflow, downflow, or horizontal orientations, giving HVAC technicians flexibility when working within tight mechanical room layouts or attic installations.

This coil is suited for residential and light commercial split-system cooling installations where R-454B refrigerant is specified. The factory-installed TXV meters refrigerant flow precisely, making it a reliable match for systems in the 3.5 to 5 ton range. It is noted as compatible with Allied 3.5 to 5 ton 7AC units. Left-hand connections orient toward the left side of the coil when viewed from the front, which determines line set routing in the installation space.

Key Features

• Uncased construction allows integration into existing or new air handler cabinetry
• Factory-installed TXV metered for R-454B refrigerant
• Left-hand connection orientation for specific line set routing requirements
• 20-inch width accommodates common residential and light commercial air handler openings
• Multi-position design supports upflow, downflow, and horizontal installation orientations

Compatibility

Compatible with Allied 3.5 to 5 ton 7AC units. Designed as an OEM-style uncased evaporator coil replacement or new installation component for R-454B split-system equipment.

Installation Notes

Installation should be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Shut down and de-energize the entire system before handling refrigerant connections or mounting the coil assembly. Verify that the left-hand connection orientation and 20-inch width are compatible with the existing or planned air handler cabinet before proceeding. Follow applicable local mechanical codes and manufacturer torque and leak-test procedures for all brazed or flare connections.

Technical Specifications

• Configuration: Multi-Position
• Type: Uncased A-Coil
• Width: 20 inches
• Connection Orientation: Left Hand
• Metering Device: TXV
• Refrigerant: R-454B

Standard Information

• Brand: ADVANCED DISTRIBUTOR PRODUCTS
• Manufacturer Part Number: hg51a60a200a0004n
