ADP HE8J936C175B1805AP HE Series Evaporator Coil 36000 Btu/hr 1200 cfm

Product Description

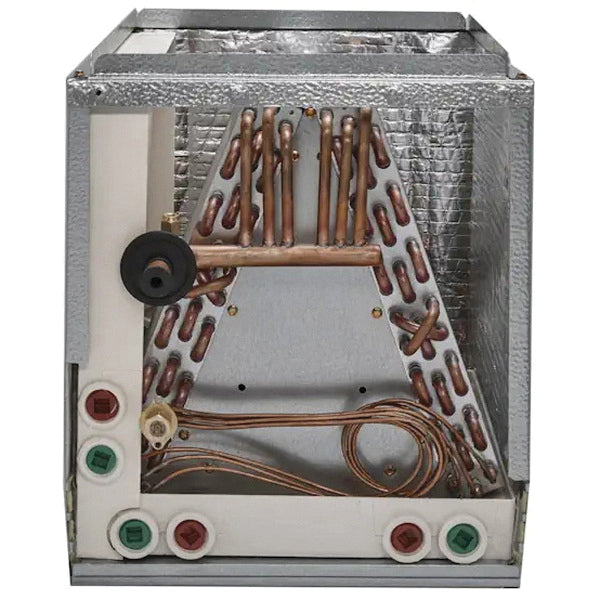

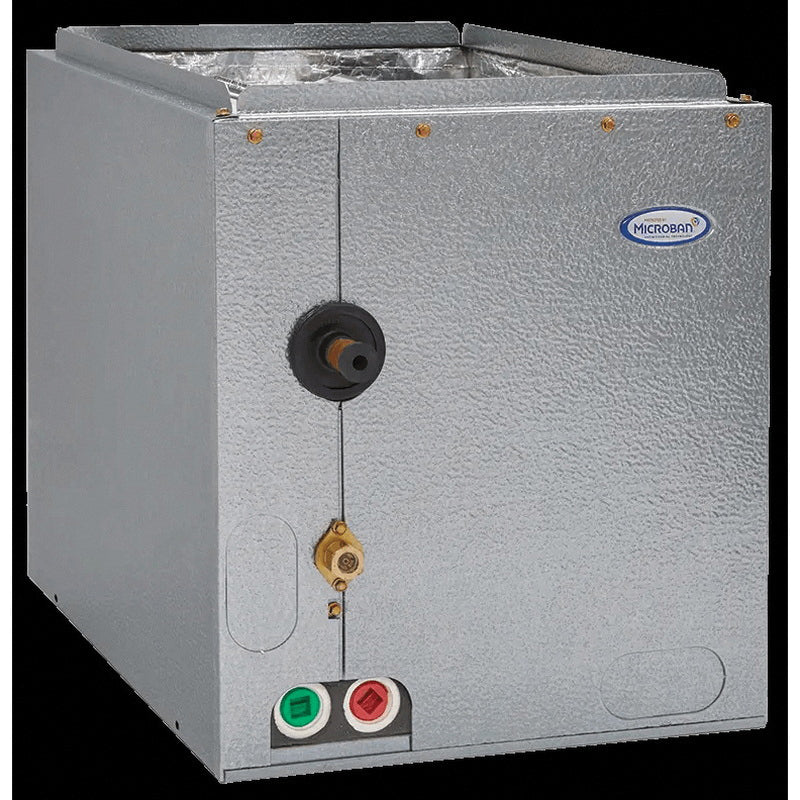

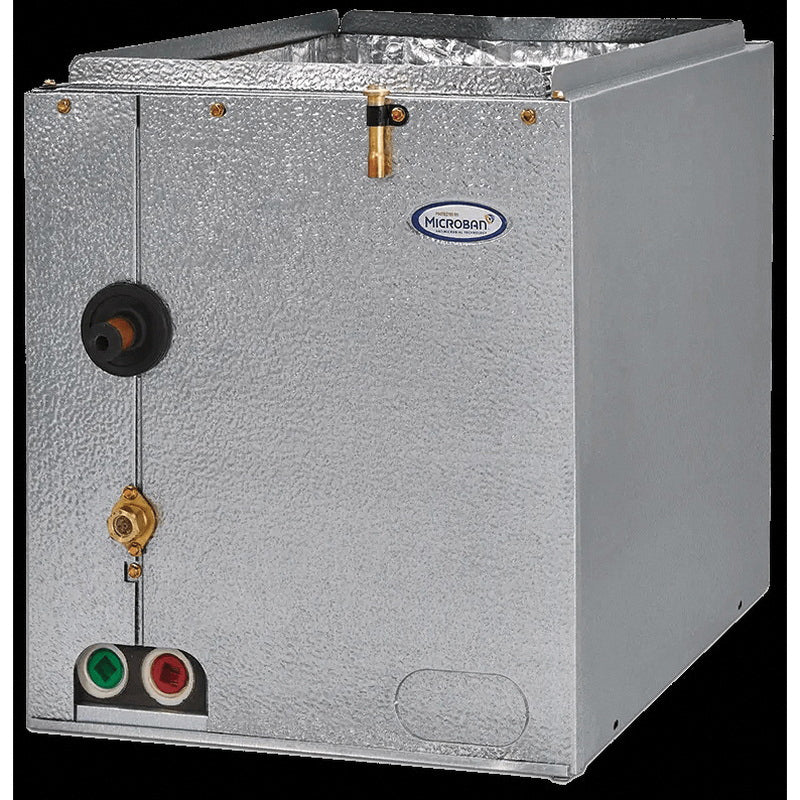

The ADP HE8J936C175B1805AP is part of the HE Series Evaporator Coil. It has a cooling capacity of thirty-six thousand BTU per hour and an airflow rate of twelve hundred cubic feet per minute. This left-hand cased coil is designed for multi-position installations and uses R-410A refrigerant. It features a three-quarter inch ODF connection and comes with a #67 piston.

• High efficiency with 36000 BTU/hr cooling capacity
• Flexible installation options with multi-position configurations
• Durable copper construction with a galvanized finish

Product Highlights

Engineered for use with A1 refrigerants and built to last, this evaporator coil is ideal for residential and commercial systems.

Product Information

Standard Information

• Brand: ADP
• Series: HE Series

Technical Specifications

• BTU Rating: 36000 Btu/hr
• CFM Rating: 1200 cfm
• Coil Type: Left Hand Cased
• Configuration: Multi-Position
• Connection Size: 3/4 in
• Connection Type: ODF
• Dimensions: 18-1/2 in H x 17-1/2 in W x 20-1/2 in D
• Domestic/Import: Domestic
• Material: Copper
• Piston Size: #67
• Pressure Rating: 500 psi
• Refrigerant Type: R-410A
• Temperature Rating: 450 deg F
