ADP HE48948C210B2705AP 3.5~4.0 Ton R-410A HE Series Cased-Coil

Product Description

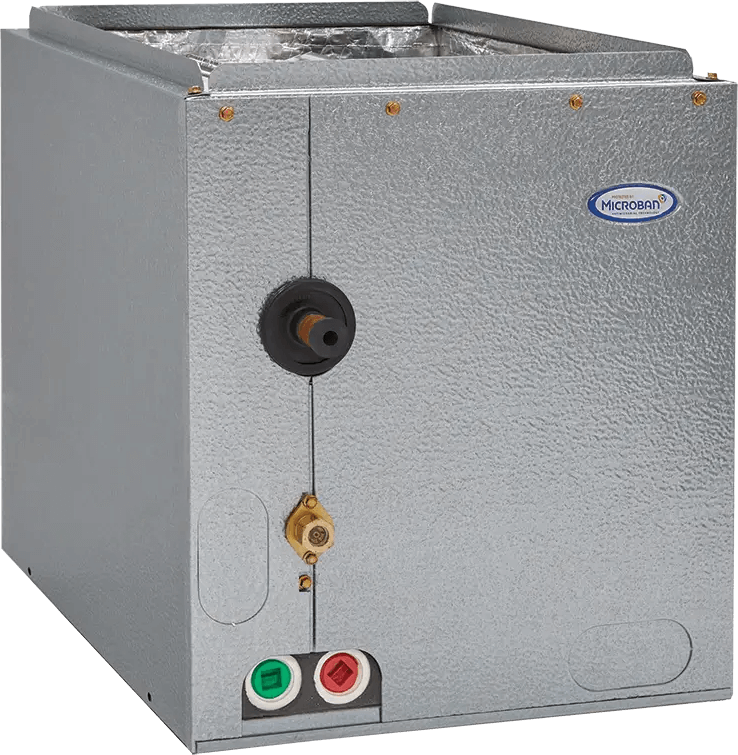

The ADP HE48948C210B2705AP is an efficient evaporator coil designed for residential air conditioning and heat pump systems. This 3.5 to 4.0 ton coil works with R-410A refrigerant and includes a factory-installed TXV for accurate refrigerant management.

• Multi-position installation: Supports both upflow and horizontal setups.
• HydroTECT drain pan: Reduces water retention to prevent mold and mildew.
• Durable construction: Made with galvanized steel and lined with foil-faced insulation for improved performance.

Product Highlights

This coil provides reliable performance, flexibility in installation, and features designed to enhance system efficiency.

Product Information

Standard Information

• Brand: ADP
• Refrigerant Type: R-410A

Technical Specifications

• Model Number: HE
• Tonnage: 3.5 Ton - 4.0 Ton
• BTU Rating: 48,000 BTU/h
• Coil Casing: Cased
• Coil Material: Copper
• Drain Pan Material: Composite / Polymer
• Height: 27.5 inches
• Width: 21 inches
• Depth: 20.5 inches
• Suction Line Size: 7/8 inches
• Product Weight: 66 lbs
• Air Flow Direction: Upflow - Horizontal - Multi-Position
• Refrigeration Control Type: TXV
