ADAMS RITE 8801MLR-48-24V NARROW STILE RIM EXIT DEVICE 48 INCHES MOTOR LATCH RETRACTION

Product Description

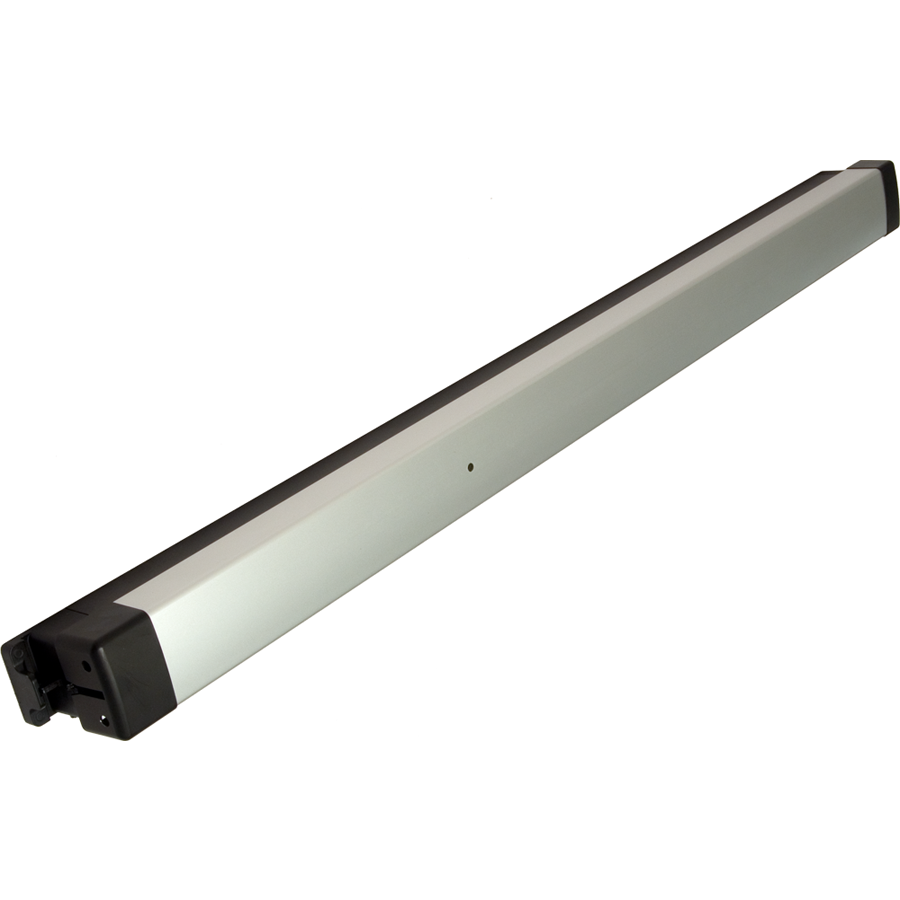

The Adams Rite 8801MLR-48-24V is a narrow stile rim exit device suitable for narrow stile aluminum doors. This device is ideal for applications requiring a life-safety exit, featuring a Starwheel interlocking solution. It is designed for single doors or pairs of doors with a mullion, providing a versatile solution for various entry points.

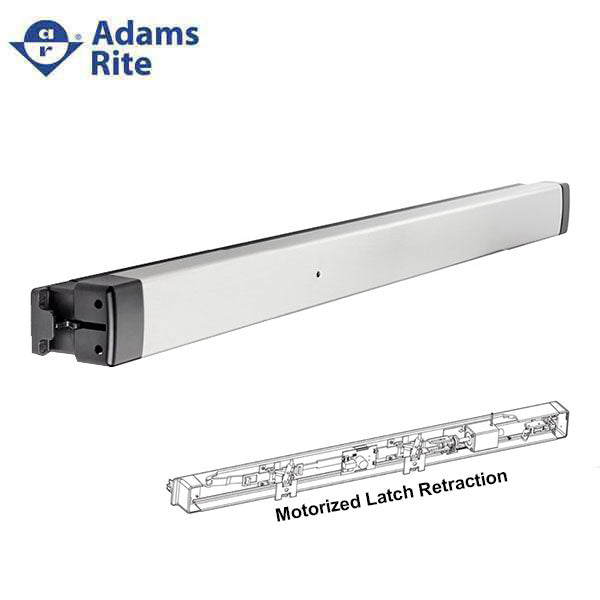

• Motorized Latch Retraction: Utilizes a motor for quiet and efficient operation.
• No Calibration Required: Simplifies installation process.
• Robust Linkage Mechanism: Designed for long-term use.

Product Highlights

Engineered for safety and ease of use, the Adams Rite 8801MLR-48-24V incorporates a powerful motorized latch retraction system suitable for different door thicknesses, ensuring reliable performance.

Product Information

Standard Information

• Brand: Adams Rite
• MPN: 8801MLR-48-24V

Technical Specifications

• UL 305 Panic Hardware: ANSI/BHMA A156.3-2008 Grade 1
• Handing: Non-handed design
• Push Bar Length: Optional forty-eight inches
• Door Thickness: Suits one and three-quarter inches standard, up to two and one-quarter inches
• Stile Width: Minimum two inches, fits narrow, medium, and wide stile aluminum doors
• Projection: Two and five-eighths inches when fully projected, one and five-eighths inches when dogged
• Dogging: Standard with hex key or optional cylinder dogging
• Fasteners: Standard machine screws included
• Cylinders: Fits any standard one and five-thirty-seconds diameter rim cylinder
• Strike: Standard and narrow strikes included for centering in four-inch jamb
