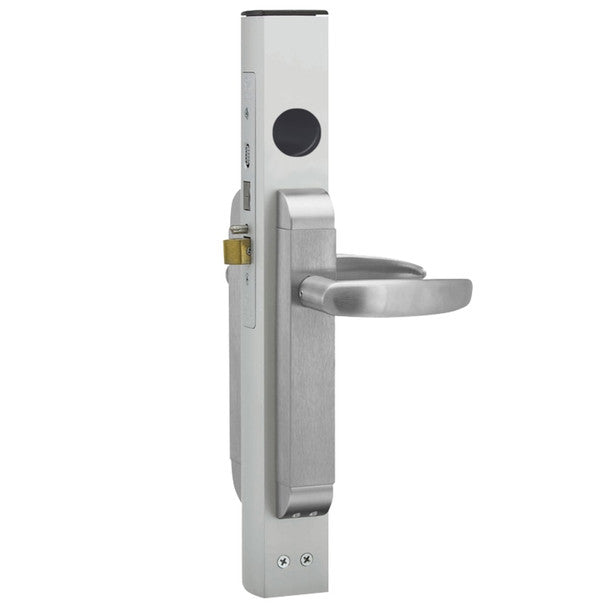

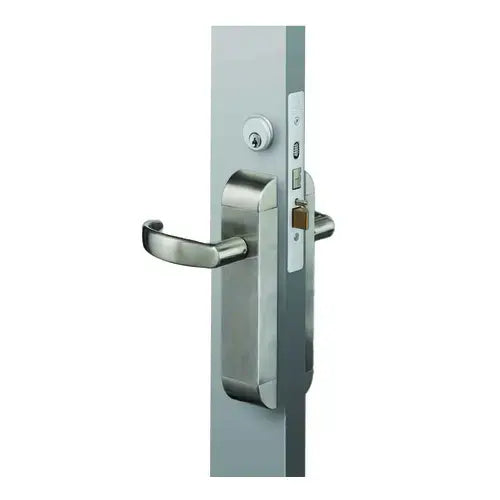

Adams Rite 2190-411-101-32D Dual Force Interconnected Deadbolt/Deadlatch 1-1/2 inches Backset

Product Description

The ADAMS RITE 2190-411-101-32D Dual Force is an interconnected deadbolt/deadlatch designed for aluminum storefront doors, where code requires single-motion exit hardware. It combines access control of a latch with the security of a deadbolt. The key retracts and extends the deadbolt from either side. The exterior lever retracts the latch only, while the inside lever retracts both simultaneously for fast exiting.

• Anti-friction latchbolt ensures reliable latching.
• Field selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch.
• Designed for aluminum doors requiring single-motion exit hardware.

Product Highlights

This interconnected deadbolt/deadlatch provides access control and security for aluminum stile doors, combining latch and deadbolt capabilities for fast, easy exit.

Product Information

Standard Information

• Brand: ADAMS RITE
• Manufacturer Part Number: 2190-411-101-32D
• Country of Origin: USA

Technical Specifications

• Brand: Adams Rite ASSA ABLOY
• Special Feature: Key Lock
• Material: Aluminum
• Style: Modern
• Finish Type: satin
• Product Type: Latch Lock
• Series: 2100 Series
• Part Number: 2190-411-101-32D
• Finish: Satin Stainless (US32D)
• Mount Type: Mortise
• Door Type: Aluminum
• Country of Origin: USA
• BAA Compliant: Yes
• Function: Entry
• Inter-Connection: Field-selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch. Consult local building officials for guidance in code compliance. Retrofits to existing MS1850S Deadbolt or 4500 and 4900 Deadlatch of the same backset. 1-3/4” minimum door thickness required.
• Cylinder Backset: 1-1/2”
• Latchbolt/Deadbolt: Latchbolt: 5/8” throw, solid brass. Easily reversible using only a screwdriver. Deadbolt: 1” throw, stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latch bolt to prevent “loiding” or case-knife entry.
• Available Finish: Satin Stainless Steel (US32D)
• Faceplates: Measures 1” x 6-7/8”. Include FaceStyle faceplate system that adapts to flat, radius, or beveled door edge. Radius with weatherseal faceplate available separately.
• Strikes: Standard strike furnished is the 2101-01 for flat jamb where door closes flush or nearly flush. The 2101 covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• Cylinder Cam: Operable by any standard mortise cylinder with MS® cam, dimensioned as shown. Cylinders with MS® cams can be readily obtained from most cylinder manufacturers. See CYLINDERS section for cylinder make, thumbturn and trim ring information.
• Options: Specify trim option, lever style, finish, and strike. Also adapts to paddle operator 4591. See 2290 for wood or steel door version for stile and rail type door construction. Note that the low profile trim (trim option 3) is recommended for in-swing door applications. Please refer to 3080 (TRIM) for full offering of designer handle sets.
• Electrified Trim Options: Order 2190 Electrification Kit EK-2190 for adding to the clutched exterior lever. Dual voltage 12/24 VDC rated for continuous duty operation. Energizing the lever allows exterior lever to be turned to retract latch only. The electrified option is not available for low profile trim (trim option 3).
• Handle Style: 01 Curve
• Color: Satin Stainless Steel
• Color Code: 630/US32D
• Lever/Knob Design: 01 - Curve
• Package Qty: 1
• Backset: 1-1/2" Backset
• Strike: 2101-01 Strike
• Grade: Grade 1
• Handing: Field Reversible
• Alternate Part Number-1: 174762
• Latch Bolt Type: Deadbolt, Deadlatch
• Knob/Lever Design: Round
• Latch Bolt Faceplate Size: 6-7/8" x 1"
• Door Bore Size: 2-1/8"
• Lock Category: Mortise Lock
• Door Thickness Min: 1-3/4"
• Latch Bolt Throw: 1", 5/8"
• Knob/Lever Style: Lever
• Lock Type: Deadbolt
