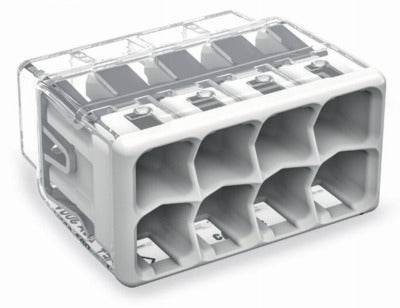

Adamax Inc 2773-408/K000-0008 8-port Push Wire Connector 10pk

Product Description

The ADAMAX INC 2773-408/K000-0008 is an 8-port push-wire connector designed for fast, tool-free termination of multiple conductors in a single compact housing. The push-wire connection method accepts up to eight solid or stranded conductors simultaneously, eliminating the need for traditional wire nuts or crimp ferrules. Conductor range is 20 AWG to 12 AWG solid and 18 AWG to 12 AWG stranded, with any combination of conductor sizes accepted in the same connector. The extremely compact form factor suits tight junction boxes and panel spaces. Electricians and low-voltage installers use this connector for splicing and branching wiring runs efficiently.

This connector is suited for residential and light commercial electrical installations where multiple conductors need to be joined at a single point. Typical applications include junction box wiring, lighting circuit splices, and branch circuit connections. The 8-conductor capacity makes it particularly useful for home-run wiring configurations and multi-switch or multi-fixture runs. Each package contains 10 connectors, making it practical to stock for service calls and new construction work.

Key Features

• Accepts up to 8 solid or stranded conductors per connector
• Conductor range: 20 AWG to 12 AWG solid, 18 AWG to 12 AWG stranded
• Mixed conductor sizes accepted in the same connector
• Push-wire termination requires no tools for conductor insertion
• Compact housing fits standard junction boxes
• Sold in a pack of 10 connectors

Compatibility

Designed as a general-purpose push-wire splice connector compatible with solid and stranded copper conductors in the 20 AWG to 12 AWG range, suitable for standard residential and light commercial wiring applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit at the breaker before making or breaking any connections. Strip conductors to the length indicated on the connector housing before insertion. Do not exceed the rated conductor count or conductor gauge range for this connector.
