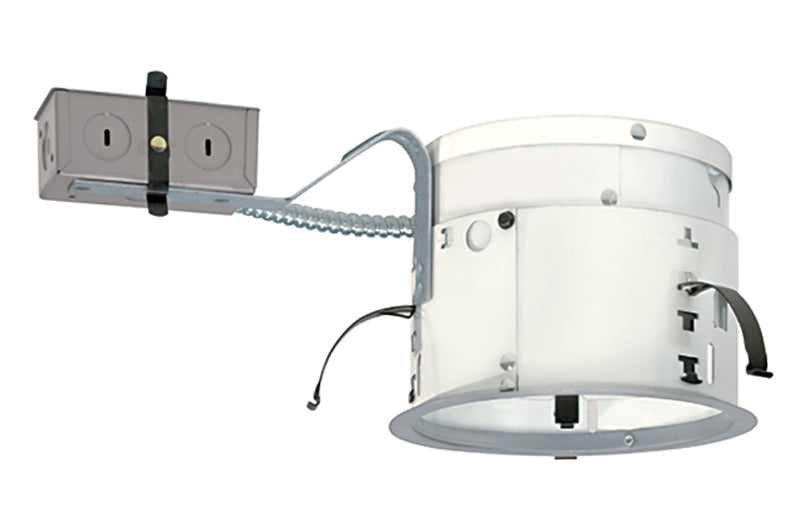

Acuity Brands TC2R Juno HSG TC Remodel 120 VAC (1 Each)

Product Description

The Acuity Brands TC2R is a Juno recessed lighting housing designed for remodel applications. This product operates at 120 VAC and fits a six and three-quarter inch ceiling opening. It supports incandescent lamps with a maximum wattage of 150 watts. The steel housing is suitable for use in non-insulated areas. When insulation is present, it must be pulled back three inches from the housing. The TC2R features a telescoping design that allows height adjustment from seven and one-quarter inches to five and one-quarter inches.

• Secured with factory-installed remodel springs
• Compatible with various lamp types including BR30 and PAR38
• UL and cUL listed for safety and reliability

Product Highlights

The TC2R is ideal for residential applications where a sleek, low-profile installation is desired. It is thermally protected to prevent overheating and operates for recessed lighting in both damp and wet locations.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Manufacturer Part Number: TC2R

Technical Specifications

• Application: Recessed Residential, Damp and Wet Locations
• Ceiling Opening: 6-3/4 inches
• Height: 7-1/4 inches
• Width: 7-5/16 inches
• Depth: 13-3/4 inches
• Housing Material: Steel
• Lamp Type: Incandescent
• Lamp Wattage: 150 watts
• Mounting Type: Ceiling
• Number of Lamps: 1
• Standards/Approvals: UL, cUL Listed
• Voltage Rating: 120 VAC
• Suitable For Use With: 6 inches Trim
• Series: TC Series
