Acuity Brands SPODMRD WH SwitchPod Dimmer Pushbutton 1200W 120/277V

Product Description

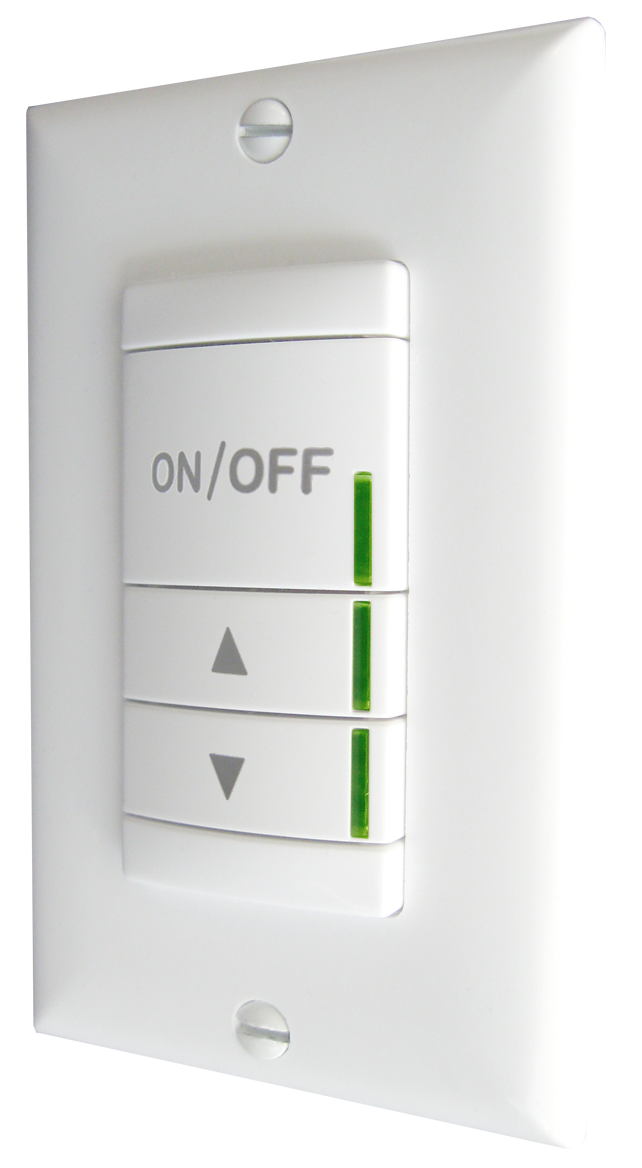

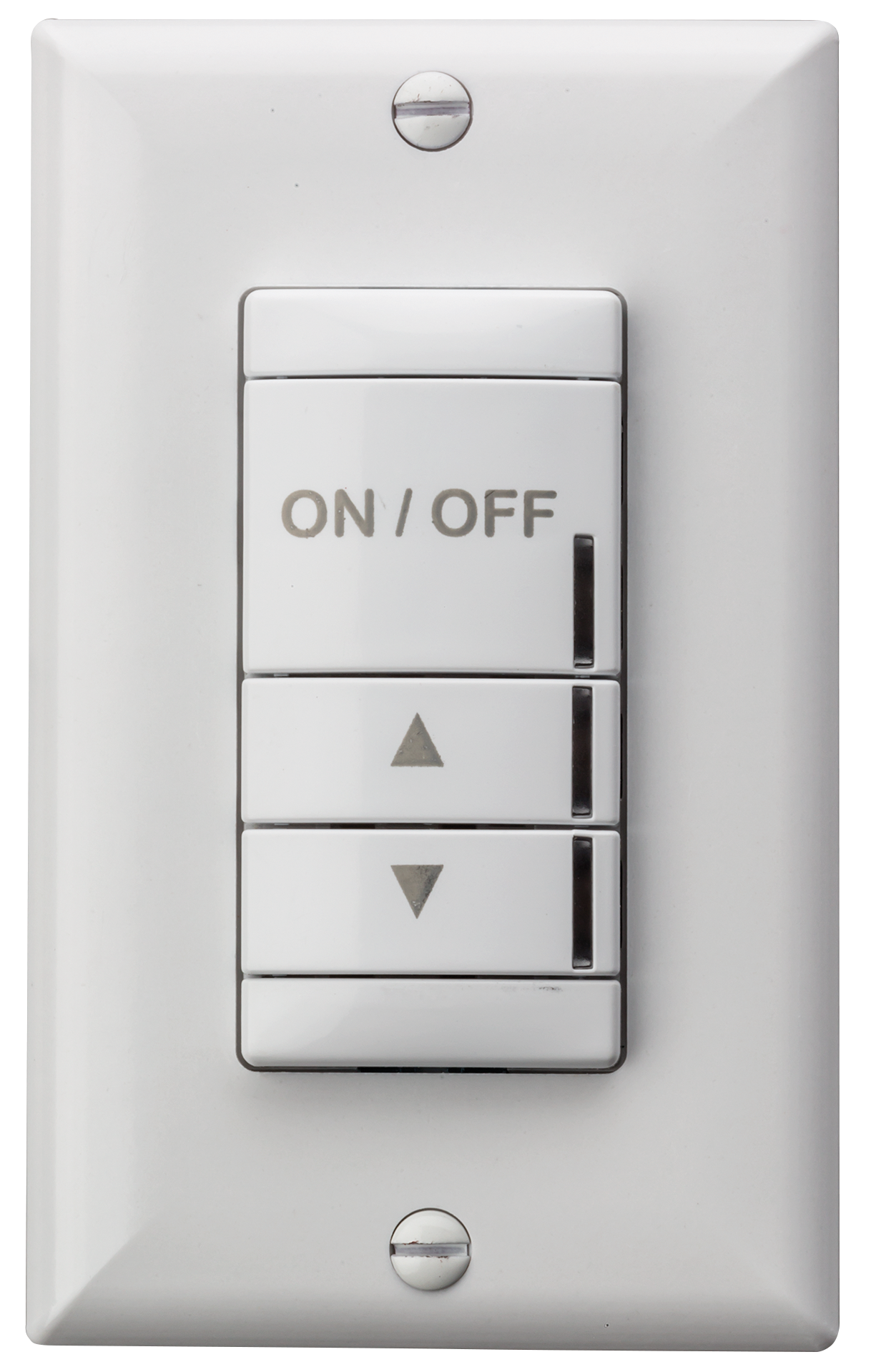

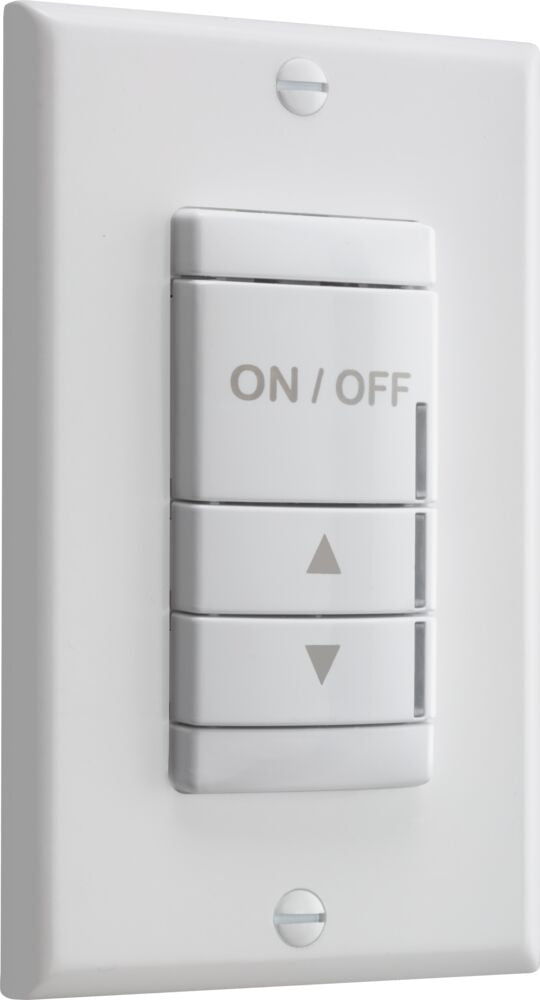

The ACUITY BRANDS SPODMRD WH is a SwitchPod pushbutton dimmer designed for 120/277V applications, handling up to 1200W. This wall switch dimmer interfaces with standard Sensor Switch occupancy sensors, providing dimming control for commercial and residential fluorescent, CFL, and LED lighting applications. It offers a cost-effective solution for lighting management.

• UL Listed for safety and compliance.
• Features 0-10V dimming capability.
• Includes miswire protection for enhanced safety.

Product Highlights

Versatile pushbutton dimmer for commercial and residential fluorescent, CFL, and LED lighting.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: SPODMRD WH
• Country of Origin: Mexico

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39122206
• Sub-Brand: Greengate
• Series: SwitchPod Series
• Color: Gray
• Dimmer Switch Style: Rocker/Slide
• Lamp Type: Fluorescent/LED
• Input Voltage: 120V
• Power Rating: 1200W
• Switch Type: Rocker with Slid Dimmer
• Number of Poles: 1-Pole
• Material: Plastic
• Product Type: Switch
• Life Expectancy: 87,600 Hours
• Max Operating Temperature: 60 Degrees
• Mounting Type: Surface
• Finish: Gloss
• Hardware Included: Yes
• Power Source: Hardwired
