Acuity Brands CPHB18LMMVOLT40K Compact Pro High Bay LED 134W 18LM 120 to 277V Replacement MPN

Product Description

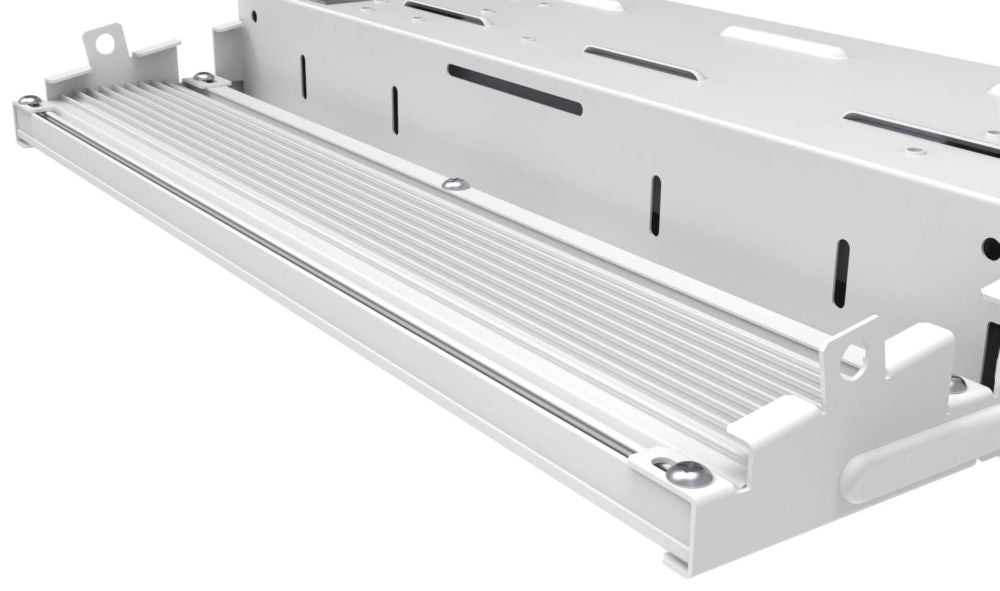

Acuity Brands CPHB18LMMVOLT40K is a hardwired rectangular high bay fixture designed for industrial and retrofit applications. It operates at 120 to 277 volts and features a static LED lamp. With 18000 lumens output and an average life of 100000 hours, this fixture is built for efficiency and longevity. The high bay is suitable for pendant, surface, or suspended mounting. Ideal for warehouses and large indoor areas, it provides a quality lighting solution while reducing glare.

• High efficiency with over 135 lumens per watt
• Compact design for easier storage and shipping
• Approved for damp locations and certified performance

Product Highlights

The CPHB18LMMVOLT40K delivers industrial lighting performance in a smaller, more manageable size. This leads to significant cost savings in shipping and time savings in installation.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• UPC: 19499460829

Technical Specifications

• Application: Industrial, Retrofit and Warehouses
• Average Life: 100000 hr
• Color Temperature: 4000 K
• Dimensions: 14.44 in L x 11.52 in W x 2.3 in H
• Fixture Wattage: 134 W
• Housing Finish: White
• Lamp Type: Static LED
• Light Output: >135 Lumens/W
• Lumens: 18000 Lumens
• Mounting Type: Pendant/Surface/Suspended
• Standards/Approvals: cCSAus Certified, Damp Location Listed, DLC QPL Listed
• Voltage Rating: 120 to 277 V
