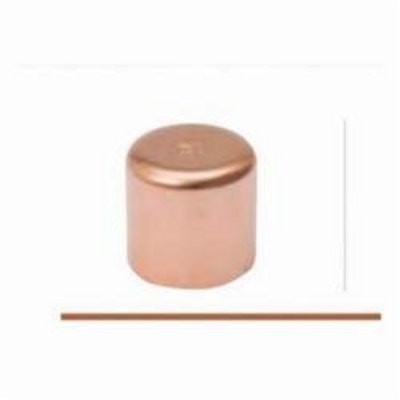

ACR W7012 Copper Cap

Product Description

The ACR W7012 copper cap is an essential component for terminating flow and protecting copper tubing in refrigeration systems. This fitting is made from copper and is designed to accommodate specific copper tube diameters. Its construction adheres to ASME standards and meets NSF 61G standards, making it reliable for various applications.

• Constructed from durable copper.
• Compatible with specific copper tube diameters.
• Ideal for use in above-ground potable water supply systems.

Product Highlights

The ACR W7012 is designed for efficiency and compliance in copper tubing systems.

Product Information

Standard Information

• Material: WROT COPPER
• End Type: C - Cup (Female Solder)

Technical Specifications

• End Size: 1 1/4
• Overall Length: 1.02 in
• Overall Height: 1.48 in
• Overall Width: 1.48 in
• Style: WC-415
• Qty Pcs / Bag: 25
• Master Qty Pcs / Box: 250
• Certifications and Approvals: TSSA; CRN; ANSI/ASME B16.22: UL Certified (SA45869) for sizes up to and including 2-5/8”
• Standards: NSF 61G, ASME B16.15, ASME B16.18, ASME B16.22, ASME B16.24, ASME B16.50, ASME B1.20.1
