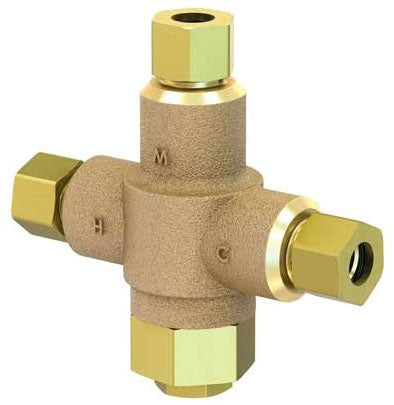

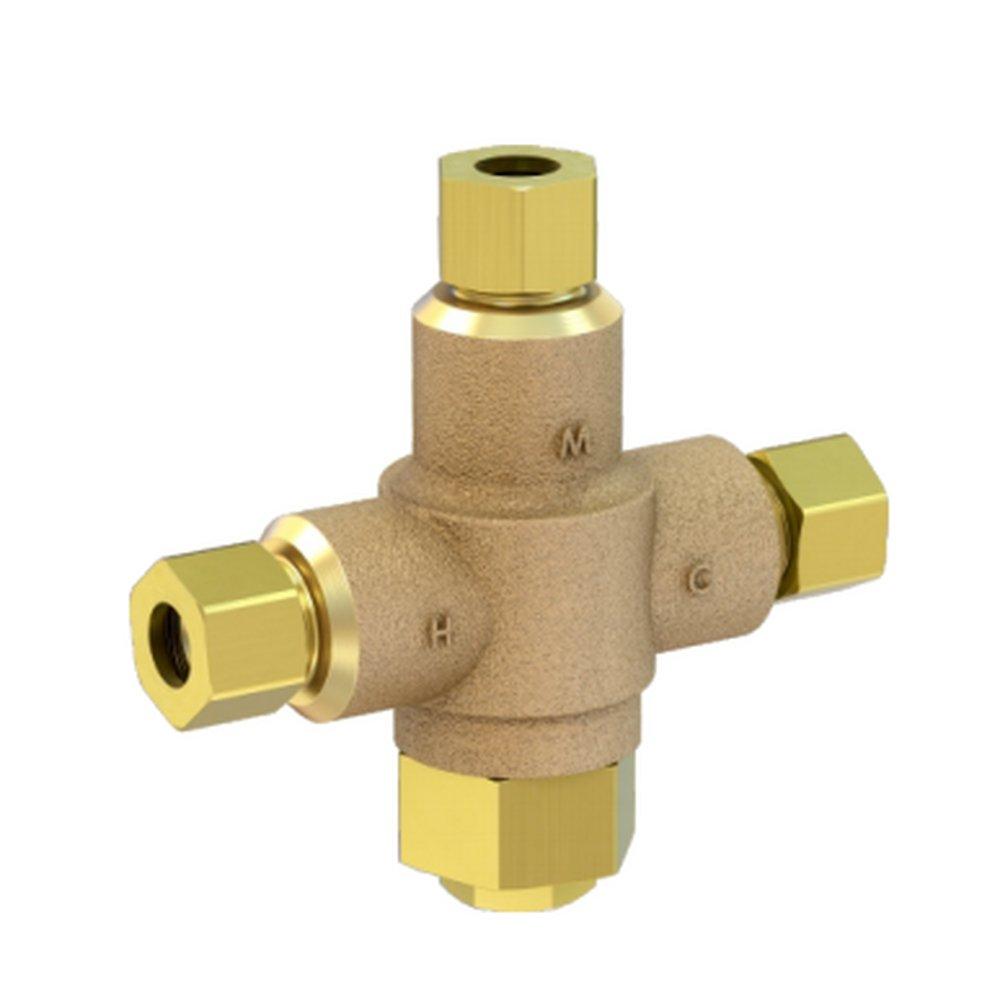

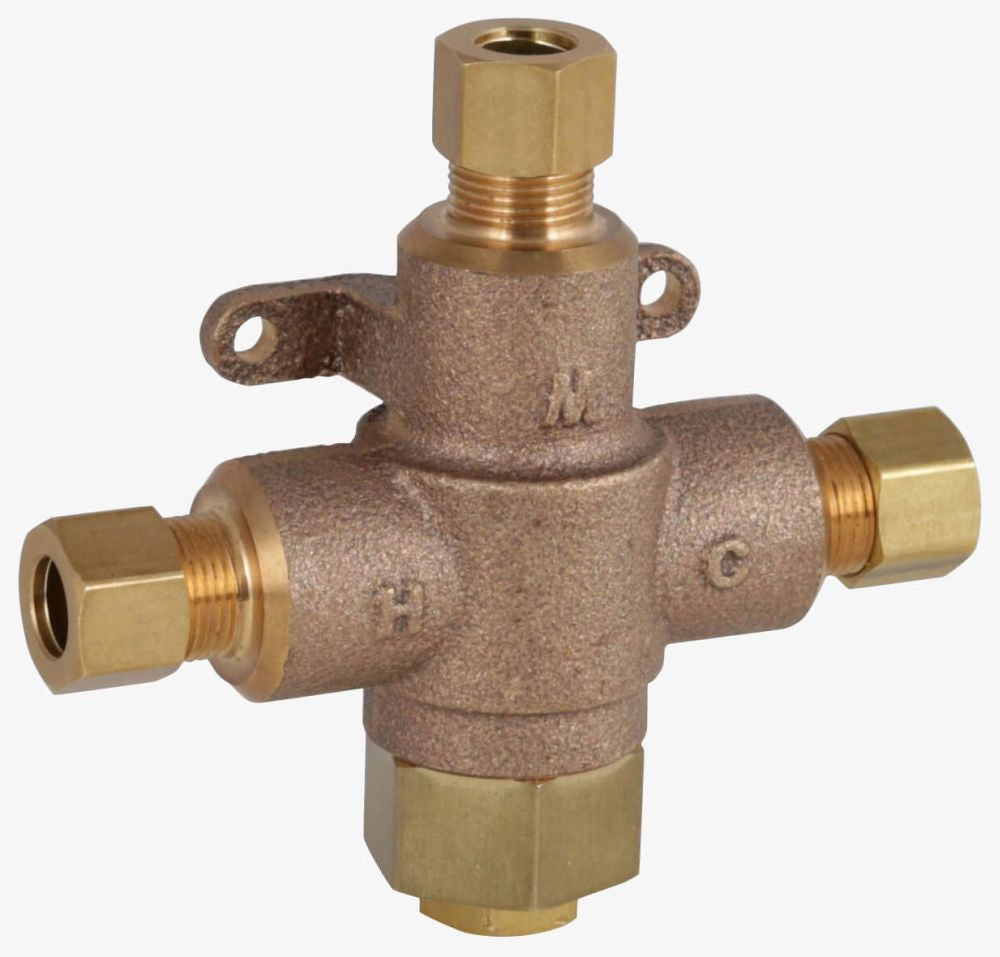

Acorn Engineering ST70-38 Tempering Mixing Valve 3/8 Inch

Product Description

The ACORN ENGINEERING ST70-38 is a thermostatic tempering mixing valve designed for precise temperature control in various plumbing applications. Featuring a nominal size of 3/8 inch and a rough brass body, this valve delivers a flow rate of 4 GPM at 45 PSI and withstands a pressure rating of 125 PSI. It is suitable for commercial or bathroom sinks, institutional, correctional, hospital, educational, warehouse, office, stadium, and arena environments, ensuring safe water temperatures.

• Integral cartridge-style checks with screens prevent backflow and filter debris from entering the valve.
• Temperature adjustment is made using an Allen wrench, with a locknut on the bonnet to prevent unauthorized or accidental changes.
• Commercial quality paraffin actuator provides repeatable and reliable performance.

Product Highlights

Lead-free, corrosion-resistant design with a secure locknut for temperature settings.

Product Information

Standard Information

• Brand: ACORN ENGINEERING
• Manufacturer Part Number: ST70-38

Technical Specifications

• Applicable Standard: IAPMO, ASSE 1071, CSA B125.3, CUPC, NSF/ANSI 61
• Application: Commercial or Bathroom Sink, Institutional, Correctional, Hospital and Treatment Center, Educational Building, Warehouse, Office Building, Stadium and Arena
• Body Material: Rough Brass
• End Connection: Compression x Compression x Compression x Compression
• Flow Rate: 4 GPM at 45 PSI
• Inclusions/Features: Locknut, Corrosion Resistant
• Nominal Size: 3/8 Inch
• Pressure Rating: 125 PSI
• Product Sub-Type: Tempering Valve
• Product Type: Pipes/Valves/Fittings
• Series/Model: ST70
• Set Temperature Range: 5 to 180 Deg F (Hot Water)
• Type: Thermostatic
