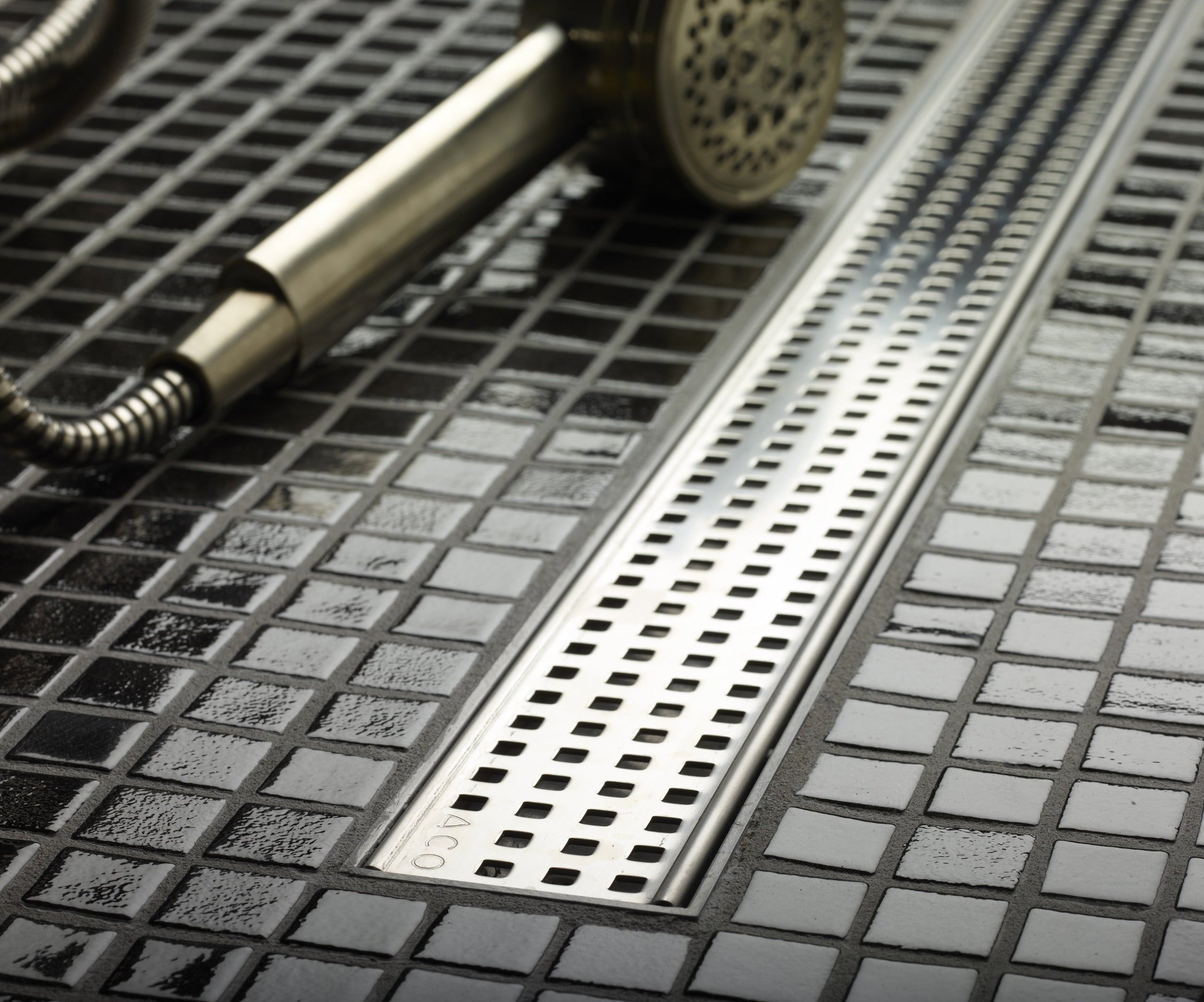

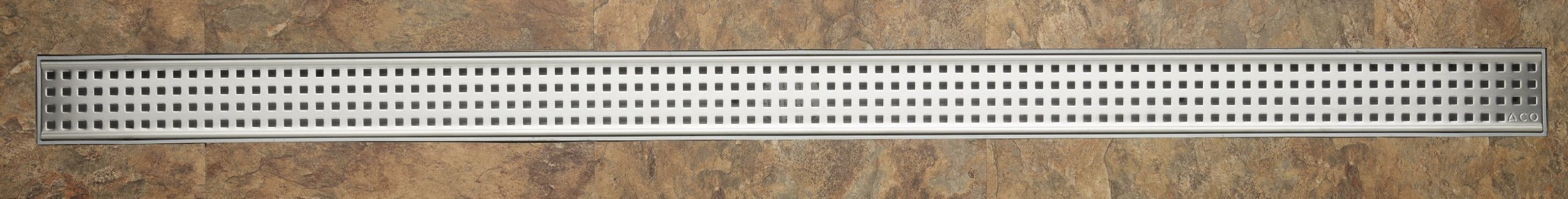

Aco Polymer Products 37242 4 Ft Square Design Shower Grate

Product Description

The ACO POLYMER PRODUCTS 37242 is a 4-foot square-pattern design grate engineered for linear shower drain systems in residential and commercial wet-area applications. Constructed from Grade 304 stainless steel, the grate delivers corrosion resistance suited for high-moisture environments including spas, hospitals, aged care facilities, and boutique hotels. Slot openings measure 0.31 inches or less, meeting heel-resistant requirements under ASME A112.6.3. The grate also satisfies ADA requirements as defined in The Americans with Disabilities Act of 1990, Section 4.5.4, making it a direct solution for universal design and barrier-free bathroom installations.

The 37242 grate is part of the Q-Plus product line, which targets installations where hygiene, corrosion resistance, and accessibility are primary concerns. It is suitable for both linear channel shower configurations and traditional hub shower designs. The Q-Plus system supports the elimination of physical floor barriers for a flush, contemporary finish. Compatible channel bodies in the Q-Plus line are available in three standard lengths: 27 inches, 36 inches, and 48 inches. The ABS plastic channel body features a shallow V profile to direct water flow toward the outlet and measures 46.69 inches x 2.76 inches x 3.50 inches.

Key Features

• Grade 304 stainless steel construction for corrosion resistance in wet environments
• Slot openings of 0.31 inches or less - heel-resistant per ASME A112.6.3
• ADA compliant per Americans with Disabilities Act of 1990, Section 4.5.4
• Compatible with linear channel and traditional hub shower drain configurations
• Supports barrier-free, universal design bathroom layouts
• Suited for residential, hospitality, healthcare, and institutional installations

Compatibility

Designed for use with ACO Q-Plus linear shower channel systems available in 27-inch, 36-inch, and 48-inch lengths. Also suitable for traditional hub shower drain configurations requiring a square-pattern grate with ADA-compliant slot spacing.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC standards. Shut off the water supply and ensure the shower substrate is fully cured and properly sloped before setting the drain body. Verify the grate seating and flange connection are secure and level with the finished floor surface. Do not overtighten fasteners on the stainless steel grate to avoid deformation of the frame.
