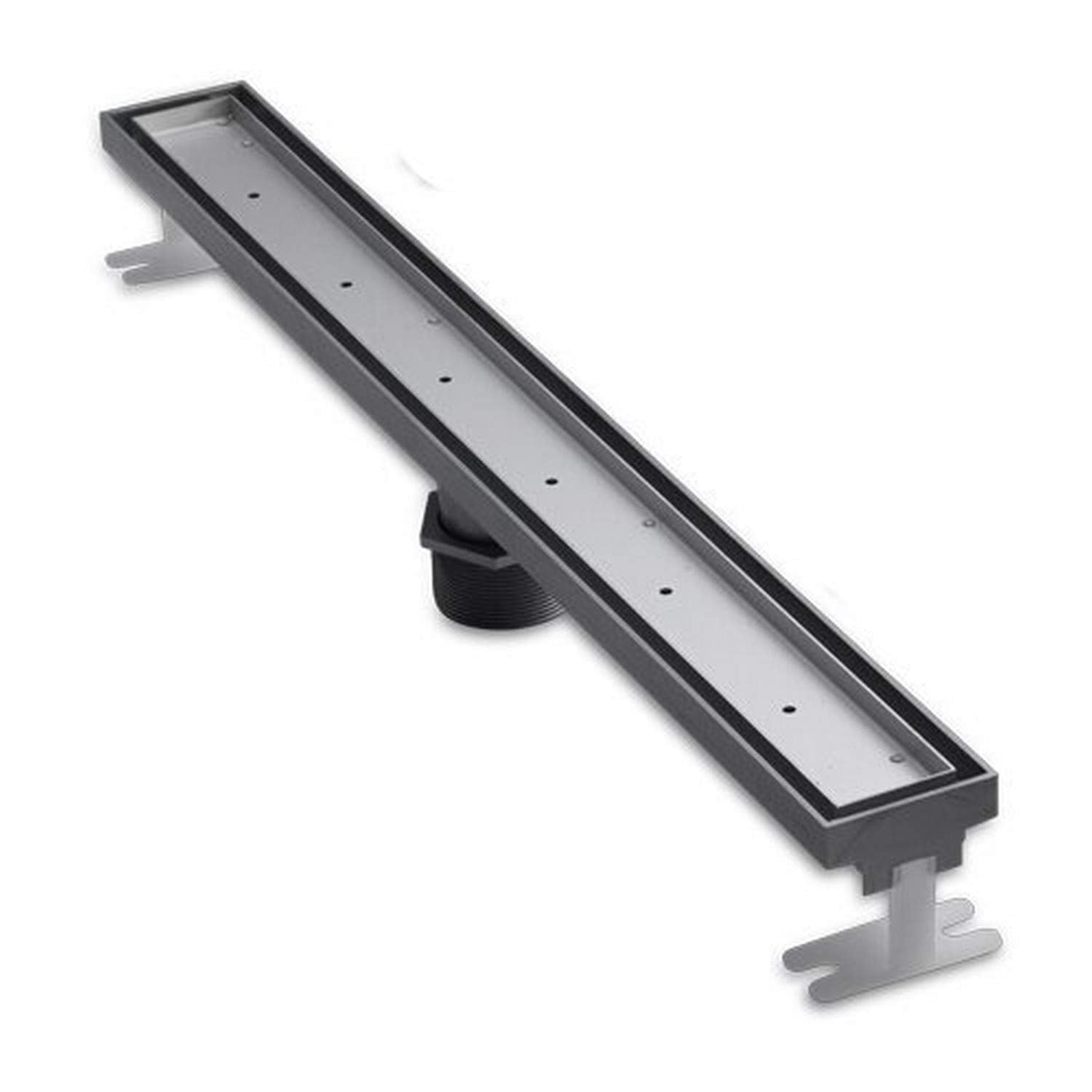

Aco Polymer Products 37086 36 Inch Linear Shower Drain Tile

Product Description

The ACO POLYMER PRODUCTS 37086 is a 36-inch linear shower drain designed for tile-in installations in residential and commercial wet areas. The drain body is constructed from ABS with a 304 stainless steel grate, delivering corrosion resistance suitable for continuous wet-area exposure. The unit ships with a 2-inch threaded coupling that connects to most standard 2-inch shower drain flanges, making it compatible across a broad range of rough-in configurations. A stainless steel sieve sits inside the 2-inch diameter outlet to capture hair and debris. Plumbers and tile installers work with this drain during new construction and remodel projects where a low-profile linear drain profile is specified.

The 37086 is suited for curbless shower designs, barrier-free accessibility applications, and standard tiled shower enclosures. The channel accepts standard tile inserts flush with the shower floor surface, supporting continuous floor tile layouts. The 2-inch threaded coupling outlet provides flexibility for connecting to existing drain rough-ins without specialized fittings. The included leveling feet allow for height adjustment and stable positioning during mortar bed or tile-setting work, reducing alignment time on the job.

Key Features

• ABS channel body with 304 stainless steel grate for corrosion resistance in wet environments
• 2-inch threaded coupling compatible with most standard 2-inch shower drain flanges
• Stainless steel sieve strainer inside the 2-inch outlet captures hair and debris - note that strainer use reduces flow performance
• Lifting keys included for tool-assisted grate removal during cleaning and maintenance
• Leveling feet included for height adjustment and stable positioning during installation
• Tile-in grate design supports flush, continuous floor tile layouts

Compatibility

The 2-inch threaded coupling is compatible with most standard 2-inch shower drain flanges, making this drain suitable for a wide range of residential and light commercial shower rough-in configurations.

Installation Notes

Installation is typically performed by a licensed plumber in coordination with a tile setter during shower pan construction. The drain should be set to finished floor height before mortar bed or tile adhesive is applied, using the included leveling feet for alignment. Shut off the water supply and verify drain rough-in location before positioning the channel. Consult local plumbing code and IPC requirements for minimum drain sizing and slope specifications applicable to linear drain installations.
