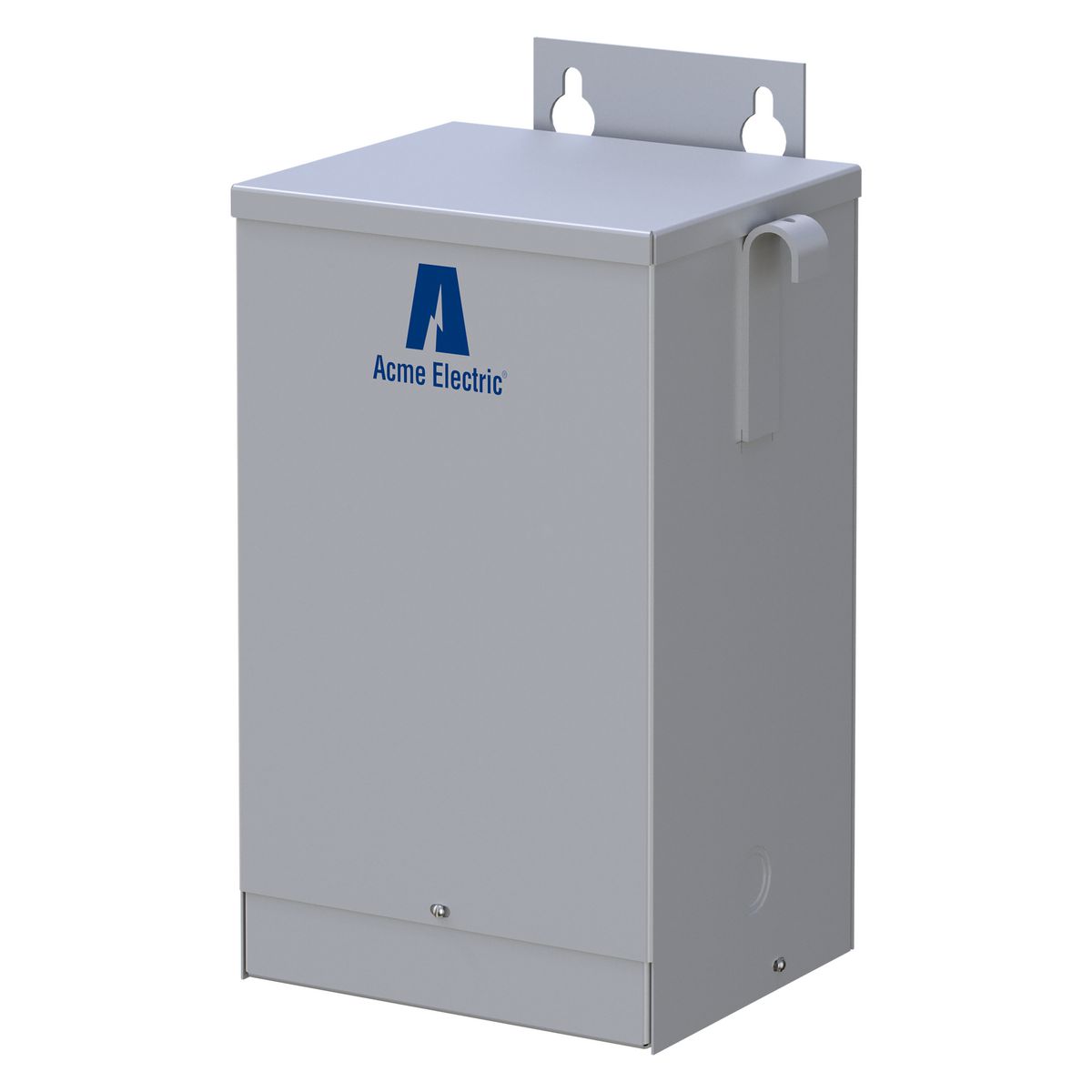

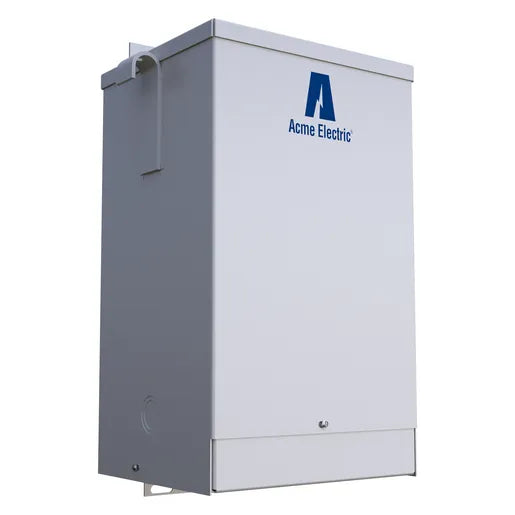

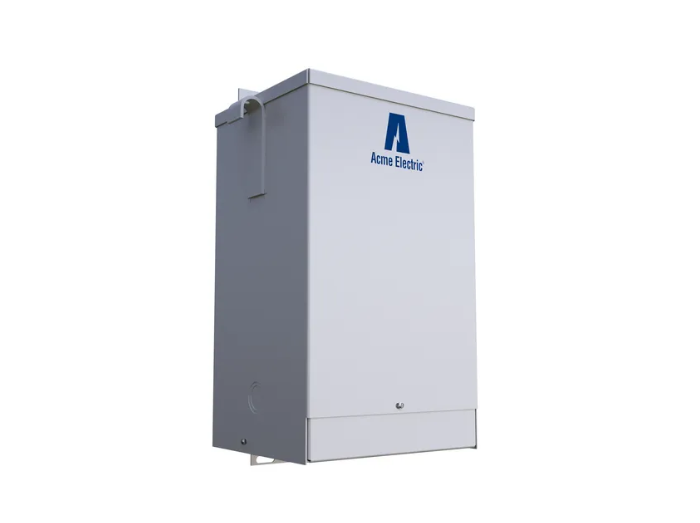

Acme TF249873S Low Voltage Distribution Transformer 3kVA

Product Description

The ACME TF249873S is a low voltage distribution transformer, single phase, with 190/200/208/220 X 380/400/416/440 - 120/240V and 3kVA. Designed for industrial and commercial applications, it features quiet operation and an electrostatic shield for enhanced protection. Encapsulated units are offered in ratings up to 15kVA.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• UL 506|E79947V1|50B8|X3221|CSA Certified|CE Certified|OSHA Compliant|ANSI Specified|IEEE|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Highlights

This transformer is ideal for reducing supply voltages in various applications. Its encapsulated design ensures protection against moisture and corrosion, making it suitable for indoor and outdoor use.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TF249873S
• Country of Origin: MX

Technical Specifications

• Catalog Number: TF249873S
• CE Compliant: CE Marked
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 3
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage: 190/200/208/220 X 380/400/416/440 V
• Secondary Voltage: 120/240 V
• UL Insulation Class: 180 C
• Winding Material: CU
• Frequency Rating: 50/60 Hz
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Brand: Acme Electric
• Connection Type: Wire Lead
• Country of Origin: MX
• Enclosure Type: NEMA 3R
• Housing Material: ZFIN
• Insulation: 180 deg C, Class H/180 deg C
• Manufacturer Name: Hubbell
• Phase: 1
• Power Rating: 3 kVA
• Temperature Rating: 115 deg C
• Type: Air Colled/Dry, Low Voltage
• Manufacturer: Acme Electric
• Product Series: TF
• Family Series: Acme Electric Transformers, TF Series
• Description: Low Voltage Distribution Transformer - Single Phase, 190/200/208/220 X 380/400/416/440 - 120/240V, 3kVA
• VA Rating: 3,000 VA
• Enclosed: Yes
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• Insulation Class: Class H
• Temperature Rise (F): 239 F
• Approvals: CSA, UL
• Net Weight: 55 lbs
• Gross Weight: 60 lbs
• Cooling: Air Cooled/Dry
• Enclosure: NEMA 3R Steel
• Harmonization Tariff Schedule Code: 8504320000
• Height: 11.50 in
• Length: 7.13 in
• Standard: UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, CE Certified, OSHA Compliant, ANSI, IEEE
• UNSPSC: 39121001
• Width: 10.31 in
• Winding: Aluminum, Configuration: Primary - Two Winding, Secondary - Two Winding
