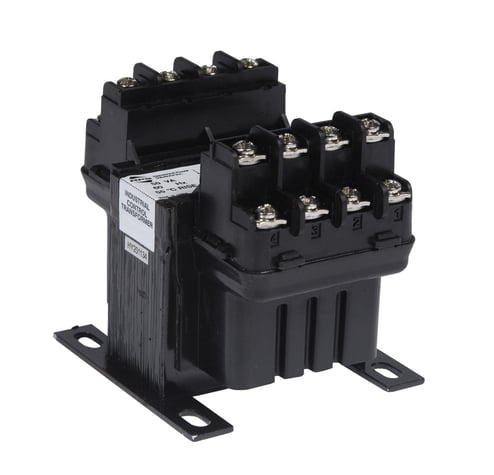

ACME TB50N014 Industrial Control Transformer

Product Description

The ACME TB50N014 is a dry-type, step-down industrial control transformer. It is built to handle momentary current inrush when electromagnet components are powered. This transformer has an encapsulated core and coil assembly to protect against moisture and contaminants. The secondary circuit operates isolated from the primary line circuit. The unit's windings and internal terminations have a thermoplastic end cap for added durability.

• Encapsulated design safeguards core and coil assembly
• Integrated terminal blocks with isolation barriers
• Designed for applications with high inrush current powering coils

Product Highlights

This transformer is ideal for industrial settings that require reliable performance.

Product Information

Standard Information

• Brand Name: ACME
• MPN: TB50N014

Technical Specifications

• Primary Voltage: 240 X 480 V
• Secondary Voltage: 120 X 240 V
• Wattage: 50
• Frequency Rating: 50/60 Hz
• Mounting: Panel
• Enclosure: Core and Coil
• Construction: Encapsulated
• Height: 3.19 inches
• Width: 3.00 inches
• Standard: UL Listed; cUL Listed
• Temperature Rating: Typical 30 Average/ 40 Maximum Deg C
