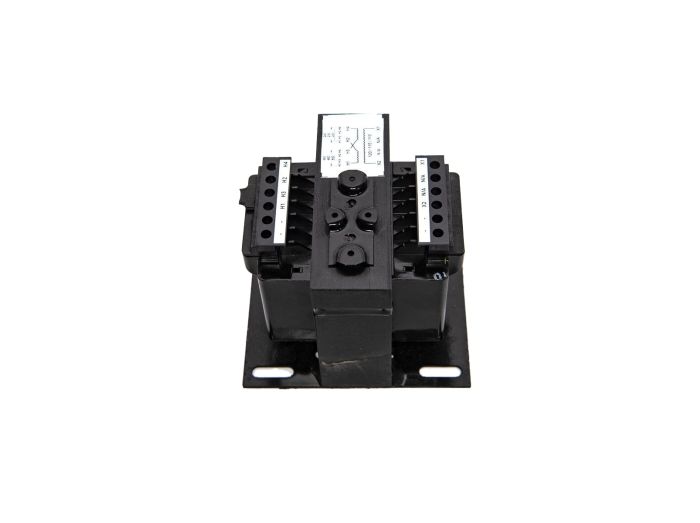

Acme TB250N013F0 Industrial Control Transformer 240X480 Primary Volts - 24 Secondary Volts

Product Description

The ACME TB250N013F0 industrial control transformer is designed to accommodate momentary current inrush when electromagnetic components are energized without sacrificing secondary voltage stability. Its encapsulated design protects the core and coil assembly from contaminants. It is constructed with high-quality silicon steel lamination to minimize core losses and increase efficiency.

• Encapsulated design protects core & coil assembly from potentially damaging contaminants
• Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
• Integrally molded terminal blocks with isolation barriers to prevent arc over

Product Highlights

This transformer is ideal for motor starters, contactors, solenoids, timer circuits, relays, control panels, and robotics.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: TB250N013F0
• Country of Origin: MX

Technical Specifications

• Catalog Number: TB250N013F0
• Construction: Encapsulated
• Secondary Voltage: 24 V
• Frequency Rating: 50/60 Hz
• Primary Voltage: 240 V, 480 V
• Certified Listed: UL Listed, cUL Listed
• Manufacturer Part Number: TB250N013F0
• Manufacturer: Acme Electric
• Product Series: TB
• Family Series: Acme Electric Transformers, TB Series
• Description: Industrial Control Transformer 240X480 Primary Volts - 24 Secondary Volts
• Phase: 1
• Type: Control
• VA Rating: 250 VA
• Enclosed: No
• Primary Fuseholder: Optional
• Secondary Fuseholder: Included
• Mounting: Plate
• Termination: Integrally Molded Terminal Blocks
• Cover Included: Optional
• Approvals: cUL, UL
• Brand: ACME
• Model: TB250N013F0
• Item: Control Transformer
