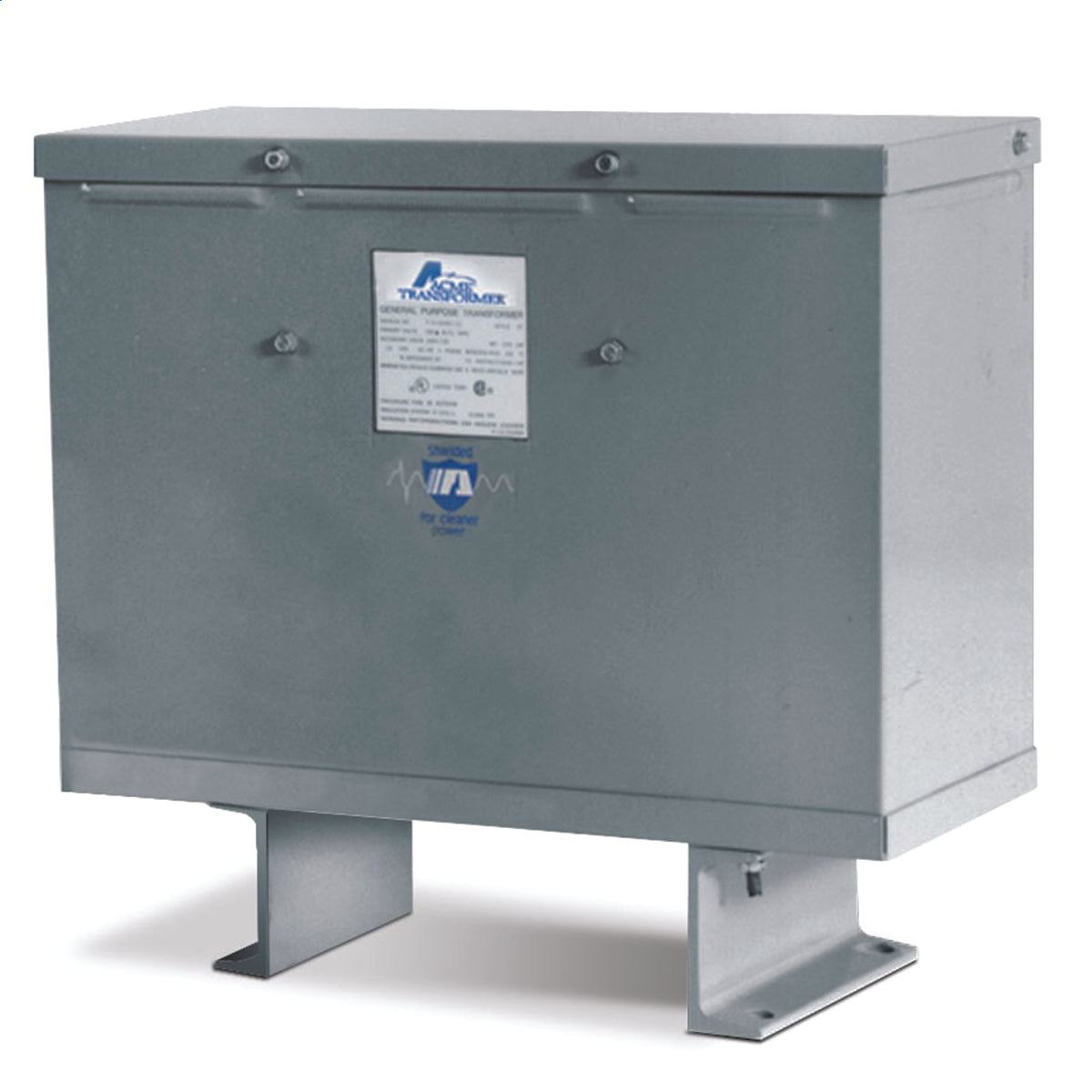

Acme T3533111S Low Voltage Distribution Transformer 15kVA

Product Description

The ACME T3533111S low voltage distribution transformer is designed for industrial and commercial applications. Encapsulated units are offered in ratings up to 15kVA. It features quiet operation with sound levels below NEMA standards and an electrostatic shield for enhanced protection.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Encapsulated core and coil

Product Highlights

This transformer is ideal for industrial and commercial applications requiring low voltage distribution. Its encapsulated design and electrostatic shield ensure enhanced protection and quiet operation.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T3533111S
• Country of Origin: MX

Technical Specifications

• Catalog Number: T3533111S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 15
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Floor
• Primary Voltage - Winding: 480
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 208Y/120 V
• Taps % Steps: 5.0%
• UL Insulation Class: 180 C
• Winding Material: AL
• Frequency Rating: 60 Hz
• Primary Voltage: 480D V AC
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Connection Type: Lead Wire
• Insulation: Class H/180 deg C
• Maximum Amperage Rating: 25 A
• Phase: 3
• Power Rating: 15 kVA
• Secondary Voltage: 208Y/120 VAC
• Temperature Rating: 115 deg C
• Type: Dry
• Housing Material: Steel
