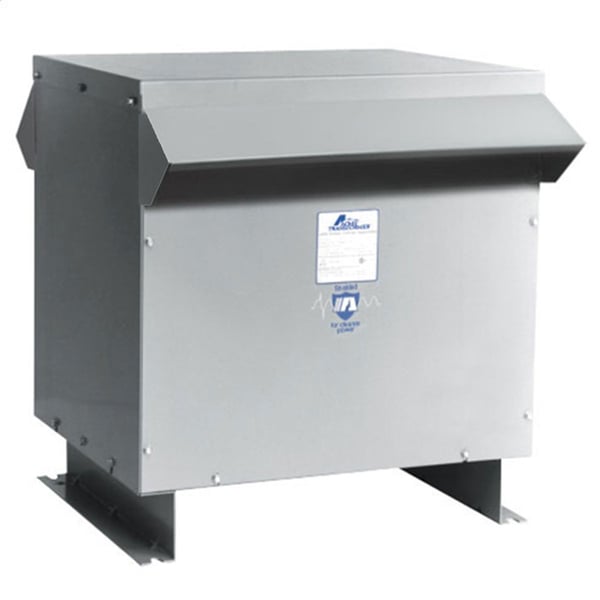

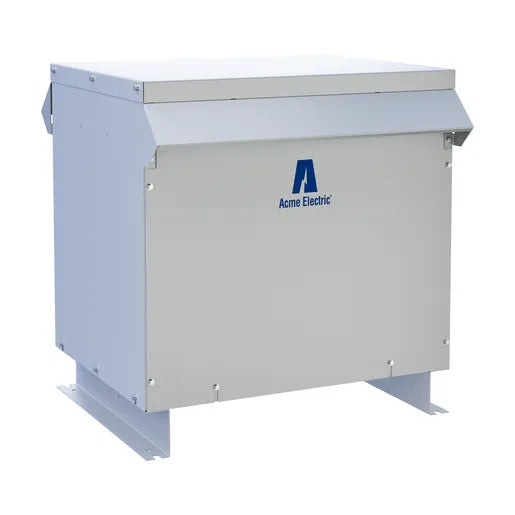

Acme T3030K0013B Low Voltage Distribution Transformer 30kVA

Product Description

The ACME T3030K0013B is a low voltage distribution transformer with three phases, 480 - 208Y/120V, and 30kVA. It operates quietly with sound levels below NEMA standards. This transformer is ventilated and constructed to provide circulation of external air through the enclosure to remove excess heat, fumes, or vapors.

• Quiet operation with sound levels below NEMA standards
• Ventilated construction for air circulation and heat removal
• Type 3R enclosures for outdoor use, protection against rain, sleet, and ice

Product Highlights

This distribution transformer is ideal for applications requiring low voltage power distribution with enhanced protection and efficient operation.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T3030K0013B
• Country of Origin: Mexico

Technical Specifications

• ANFC Taps: 2
• BNFC Taps: 4
• Catalog Number: T3030K0013B
• Construction: Ventilated
• kVA: 30
• Material Type: ZFIN
• Max Temperature Rise: 150 Degrees Celsius
• Mounting Type: Floor
• Primary Voltage: 480D V AC
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage: 208Y/120 V AC
• Taps % Steps: 2.5%
• UL Insulation Class: 220 C
• UPC: 047503091128
• Winding Material: AL
• Efficiency: 98.23%
• Frequency Rating: 60 Hz
• CSA Standard: C22.2 No. 47
• Dept of Energy Regulation: Meets or exceed U.S. DOE 10 CFR Part 431
• Nema Rating: NEMA 3R
• UL Standard: UL 1561
• Power Rating: 30 kVA
• Temperature Rating: 150 deg C
• Type: Isolation Ventilated
• Enclosure Type: NEMA 3R
• Housing Material: Steel
• Phase: 3 ph
• Number of Taps: (2) 2.5% ANFC/(4) 2.5% BNFC
• Connection Type: Terminal Lug
• Catalog ID: ACMT3030K0013B
• Includes: Weathershield
• Brand: Acme Electric
• Part Number #: T3030K0013B
• UNSPSC: 39121001
• Volt Amps: 30kVA
• Mounting Style: Stand Alone
• Minimum Operating Frequency: 60 Hz
• Current Conversion: AC to AC
• Color: Gray
• Number of Phases: 3
• Primary Current Rating: 30KVA
• MPN: T3030K0013B
• Conversion Function: Step-down
• Primary Voltage Rating (AC): 240/480 V
• Primary Impedance: 4.40%
• Maximum Operating Frequency: 60 Hz
• Country of Origin: MX
