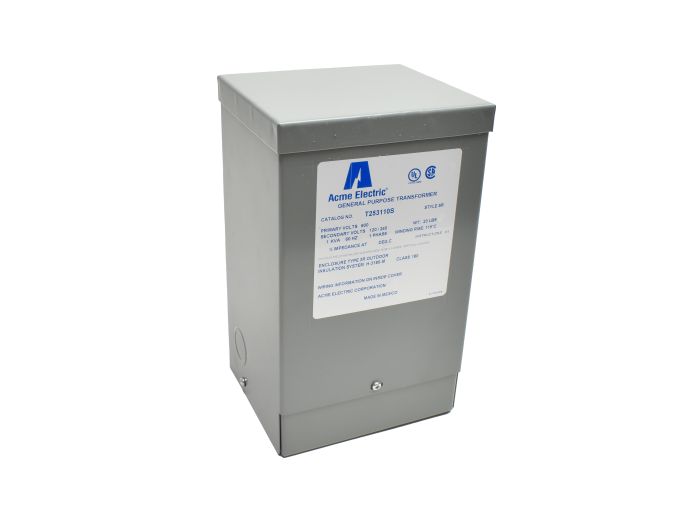

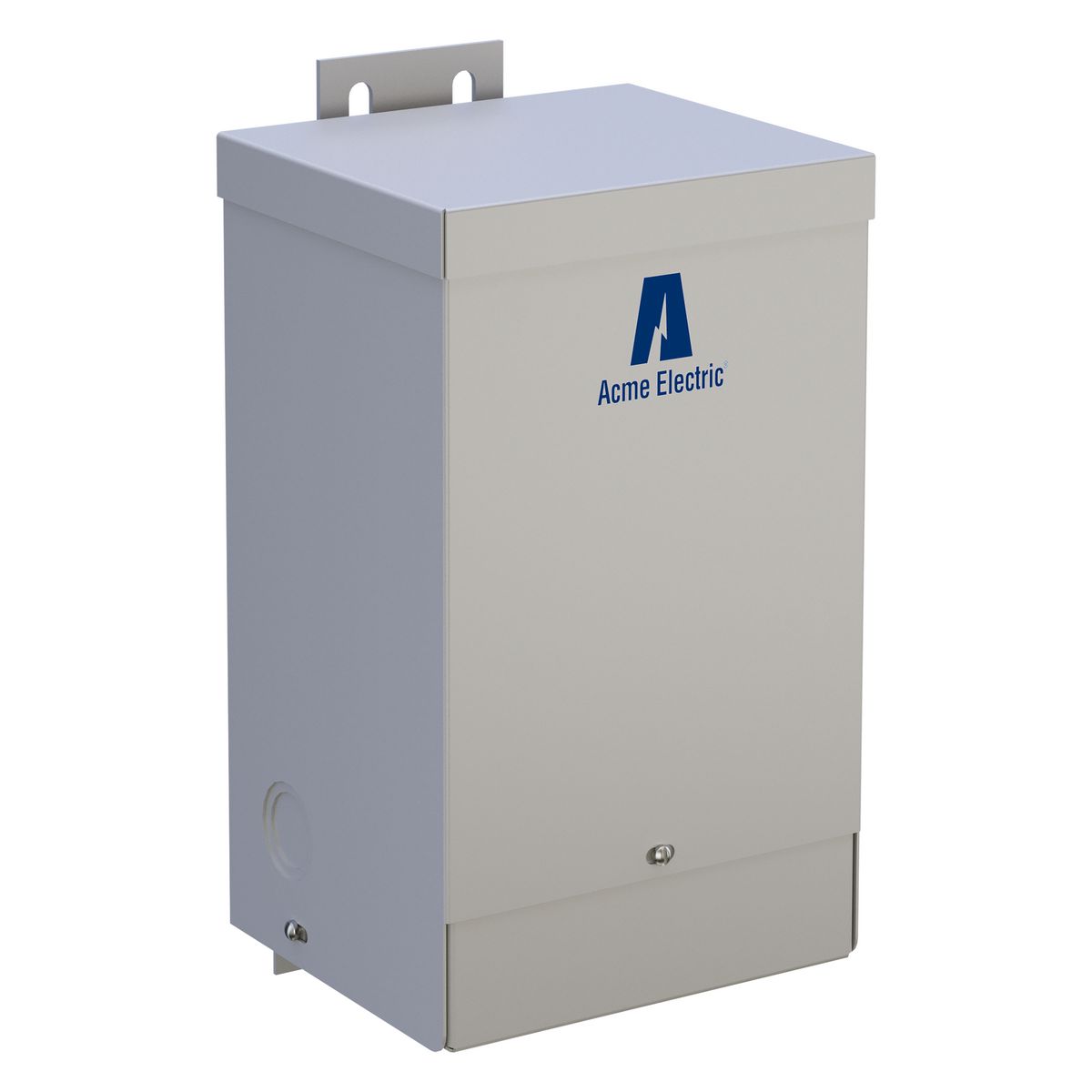

Acme T253110S Low Voltage Distribution Transformer 1kVA

Product Description

The ACME T253110S is a low voltage distribution transformer, single phase, with 600 - 120V/240V and 1kVA. It features quiet operation with sound levels below NEMA standards and an electrostatic shield for enhanced protection. Ideal for industrial settings, it minimizes line losses and eliminates corrosion with resin encapsulation.

• Quiet operation with sound levels below NEMA standards
• Electrostatic shield for enhanced protection
• Ground studs for use with non-metallic conduit

Product Highlights

Dry type distribution transformer ideal for industrial settings, minimizing line losses and eliminating corrosion.

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: T253110S
• Country of Origin: MX

Technical Specifications

• Catalog Number: T253110S
• Construction: Encapsulated
• Electrostatic Shield: Shielded
• kVA: 1
• Material Type: ZFIN
• Max Temperature Rise: 115 Degrees Celsius
• Mounting Type: Wall
• Primary Voltage - Winding: 600
• Product Category: Dry Type Distribution Transformer
• Secondary Voltage - Winding: 120/240 V
• UL Insulation Class: 180 C
• UPC: 047503732700
• Winding Material: CU
• Frequency Rating: 60 Hz
• Primary Voltage: 600 VAC
• CSA Standard: C22.2 No. 47
• Nema Rating: NEMA 3R
• UL Standard: UL 506
• Application: Encapsulated
• Connection Type: Wire Lead
• Country of Origin: MX
• Enclosure Type: NEMA 3R
• Harmonization Tariff Schedule Code: 8504316000
• Height: 10.50 in
• Height [Metric]: 26.6700 cm
• Insulation: Class H/180 deg C
• KVA Rating: 1
• Length: 5.13 in
• Length [Metric]: 13.0302 cm
• Mounting: Wall
• Number Of Phases: 1
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL 506CSA C22.2 No. 47CSA C802.2CE MarkedPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
• Temperature Rating: 115 C
• Type: Dry Encapsulated
• UNSPSC: 39121001
• UPC 11: 04750373270
• UPC 12: 047503732700
• Width: 5.50 in
• Width [Metric]: 13.9700 cm
• Brand: Acme Electric
• Manufacturer: Acme Electric
• Phase: 1
• Power Rating: 1 kVA
• Secondary Voltage: 120 V, 240 V
• Manufacturer Part Number: T253110S
• Product Series: T
• Family Series: Acme Electric Transformers, T Series
• Description: Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 1kVA
• VA Rating: 1,000 VA
• Enclosed: Yes
• Primary Fuseholder: Not Available
• Secondary Fuseholder: Not Available
• Insulation Class: Class H
• Temperature Rise (F): 239 F
• Approvals: CSA, UL
• Net Weight: 19.73 lbs
• Gross Weight: 22 lbs
• Volt Amps: 1kVA
