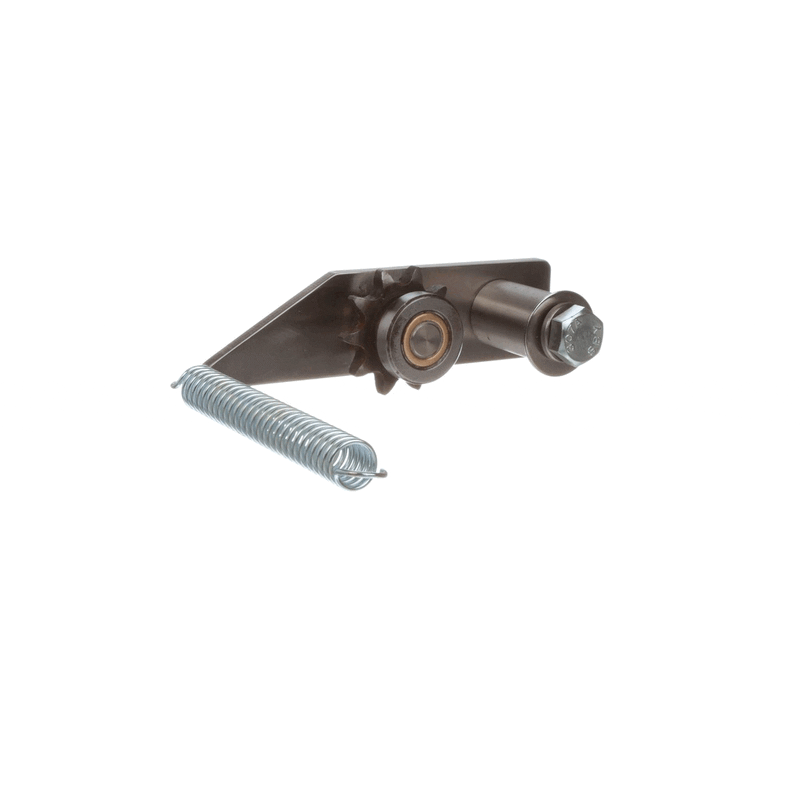

Acme IDLR7224 Lower Idler Assembly Complete

Product Description

The ACME IDLR7224 is a complete lower idler assembly designed to maintain belt alignment and smooth drive operation in commercial restaurant equipment. This OEM-specification component ensures precise meshing within gear and sprocket drive systems, reducing the risk of belt misalignment and unplanned downtime. At 5.5 inches long, 3.15 inches wide, and 2.7 inches tall, it is a direct-fit replacement built to manufacturer tolerances. Weighing 1.425 pounds, the assembly is compact and straightforward to handle during service. Foodservice equipment technicians and commercial kitchen service professionals are the primary installers of this part.

This lower idler assembly is suited for commercial foodservice equipment applications where conveyor belt or chain-driven systems require reliable tensioning and alignment support. It is a complete assembly, meaning all idler components arrive ready for installation without requiring additional sub-components. Applications include gear and sprocket drive systems found in high-volume restaurant production equipment where consistent belt tracking is critical to operation.

Key Features

• Complete assembly configuration — no additional sub-components required for installation
• OEM-specification design for precise meshing in gear and sprocket drive systems
• Prevents belt misalignment and reduces unplanned equipment downtime
• Compact form factor: 5.5 inches x 3.15 inches x 2.7 inches
• Lightweight at 1.425 pounds for easy handling during service

Compatibility

Designed as an OEM-style replacement lower idler assembly for compatible ACME commercial foodservice equipment using gear and sprocket belt drive systems.

Installation Notes

Installation should be performed by a qualified foodservice equipment technician. Power down and de-energize the equipment completely before disassembling any drive system components. Verify belt tension and alignment after seating the idler assembly before returning the unit to service. Follow the equipment manufacturer's service documentation for proper assembly sequence and fastener engagement.
