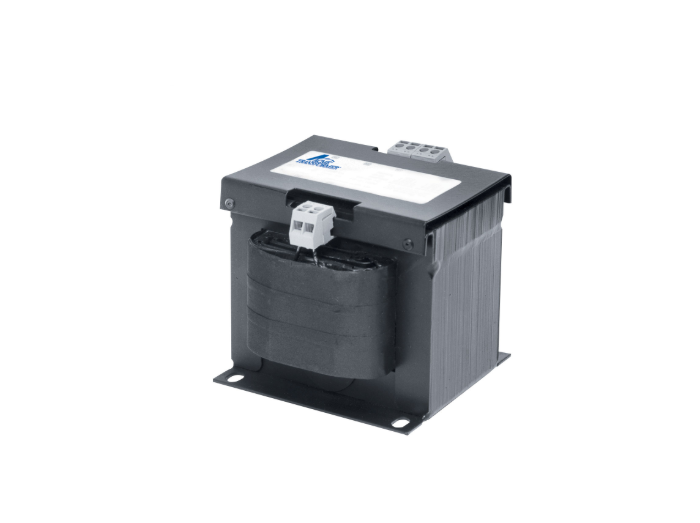

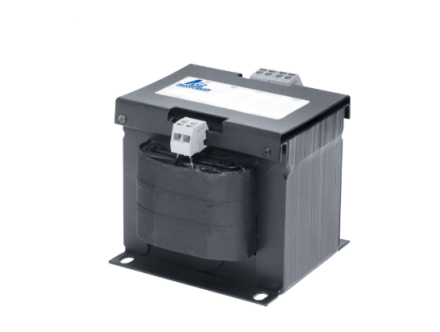

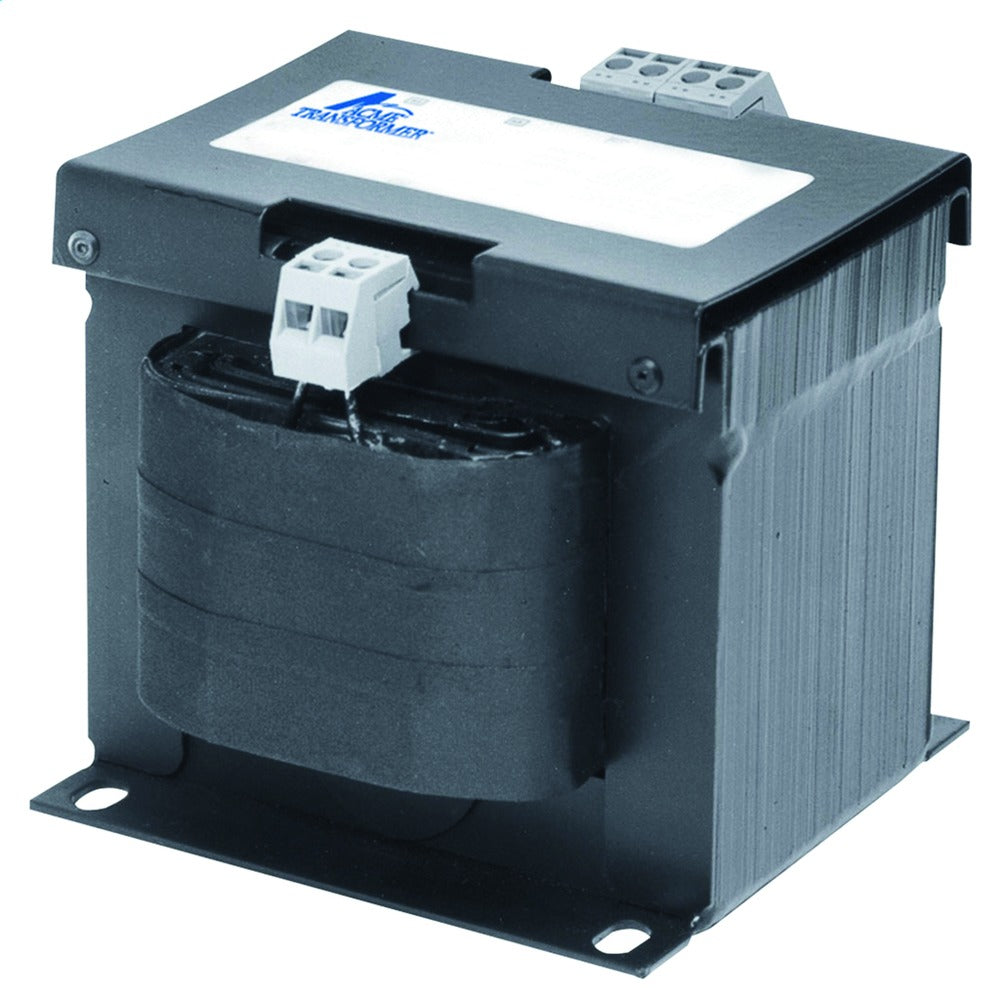

Acme FS3350 Control Transformer 350 VA (1 Phase) CE350B007

Product Description

The Acme FS3350 is a 350 VA single-phase control transformer designed for industrial control circuits, offering multiple primary and secondary voltage taps and 50/60 Hz operation. The unit includes molded plastic terminals, a floor-mounting slot, and an insulated design with a specified 80°C temperature rise. Approvals listed include UL 506, CSA C22.2 and CE, and it meets ANSI, NEMA and IEC standards.

• 350 VA rating, single-phase operation at 50/60 Hz with multiple selectable primary and secondary taps
• Primary voltages include 240/416/480/600; 230/400/460/575; 220/380/440/550; 208/500 VAC; secondary taps include 99/120/130; 95/115/125; 91/110/120; 85/100/110 VAC
• Insulation class 130 with 80 °C temperature rise, molded plastic terminals, floor mounting slot (0.5 x 0.22 inch), approvals UL 506, CSA C22.2, CE; meets ANSI, NEMA, IEC

Product Highlights

350 VA single-phase control transformer with multiple primary/secondary taps, molded plastic terminals, floor-mount slot, and UL/CSA/CE approvals

Product Information

Standard Information

• Brand: ACME
• Manufacturer Part Number: FS3350
