Product Description

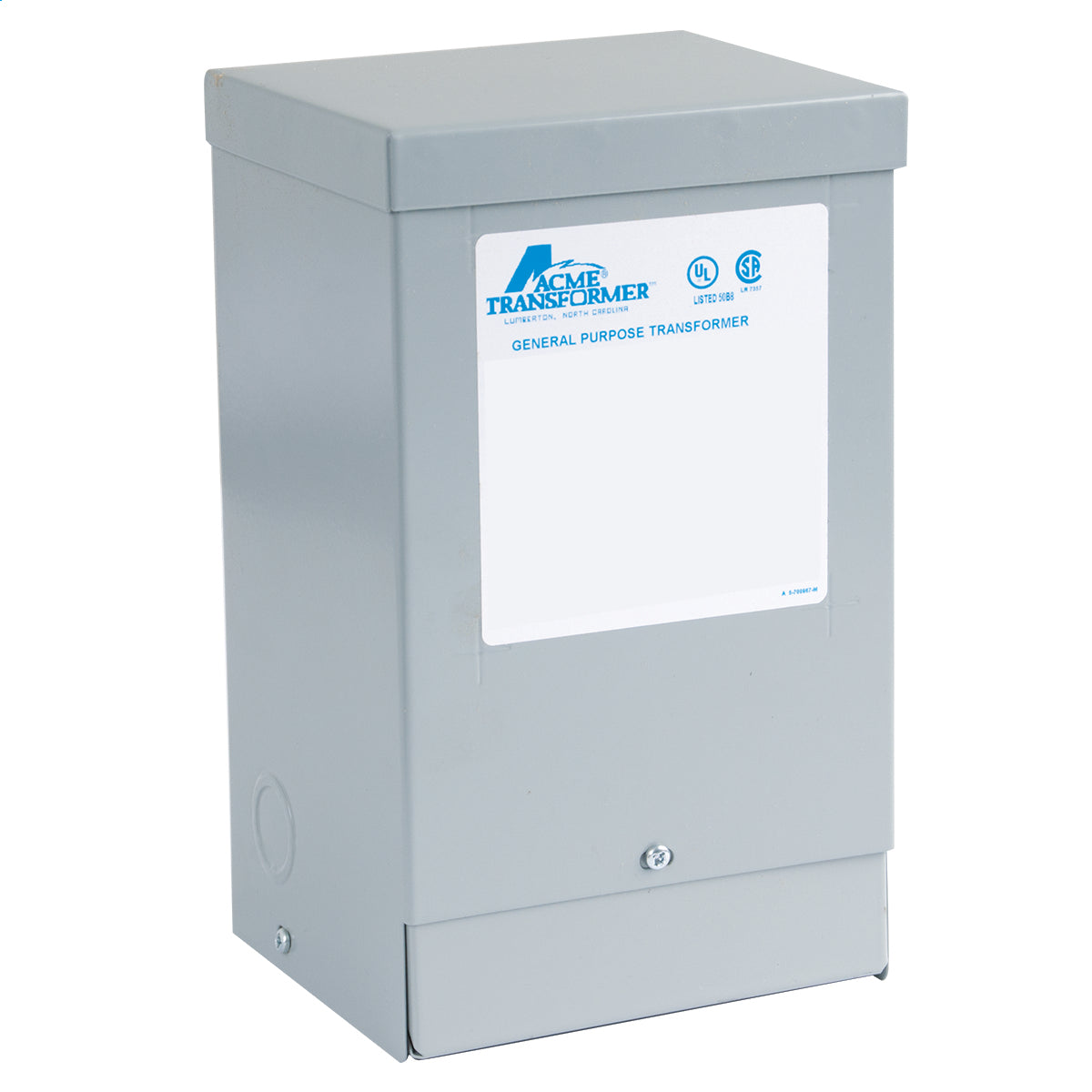

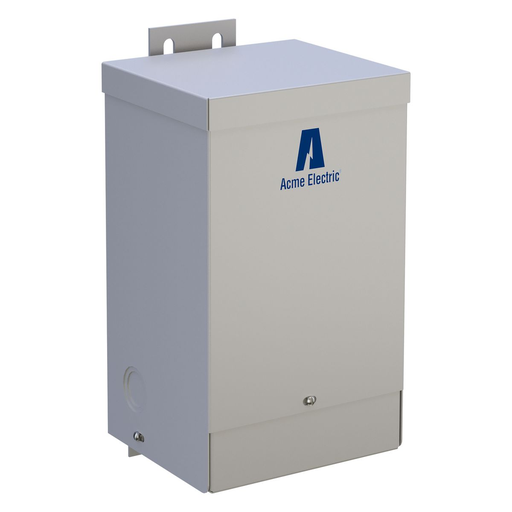

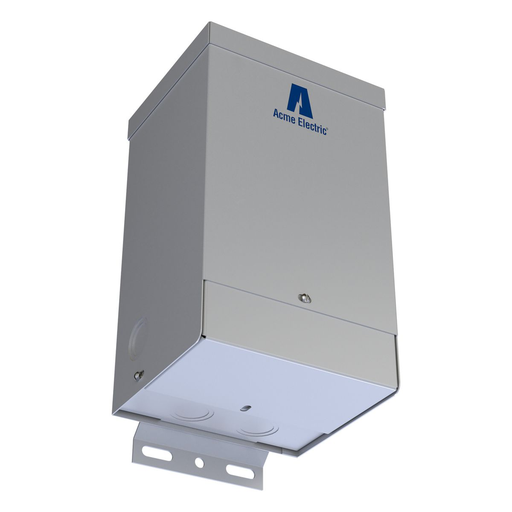

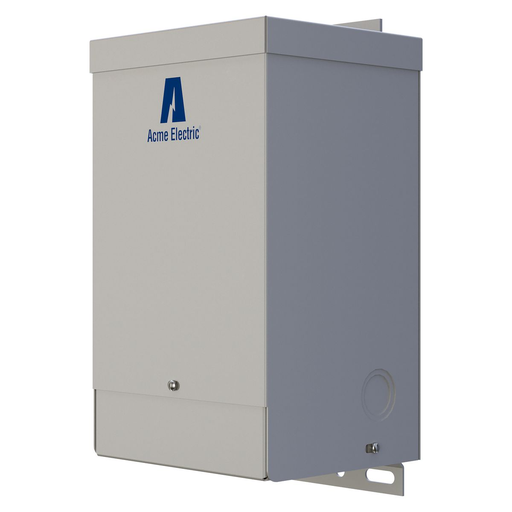

The Acme Electric T113073 is a single phase buck-boost transformer designed to convert voltage levels. This transformer operates with primary voltages of one hundred twenty by two hundred forty volts and secondary voltages of sixteen to thirty-two volts.
- Ideal for low voltage lighting or control circuitry.
- Features a NEMA 3R steel enclosure for durability.

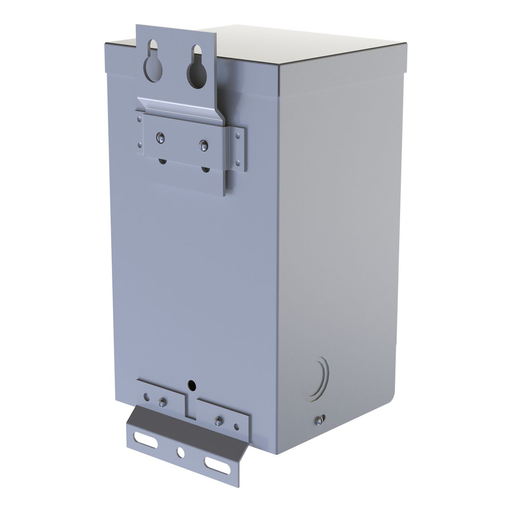

- Wall mounting for convenient installation.
Product Highlights
This transformer is used to reduce or boost line voltage helping to power devices efficiently. Its encapsulated core and coil design enhances reliability and performance.
Product Information
Standard Information
-
Manufacturer: Acme Electric, a Hubbell affiliate
-
Country of Origin: Mexico
Technical Specifications
-
Catalog Number: T113073
-
Primary Voltage: 120 X 240 V
-
Secondary Voltage: 16/32 V
-
Phase: 1
-
Frequency Rating: 60 Hz
-
Insulation Class: 180 DEG C Class H
-
Temperature Rating: 115 DEG C Rise
-
Weight: 24 lb
-
Dimensions: 5.13 x 5.5 x 10.5 inches (Length x Width x Height)
