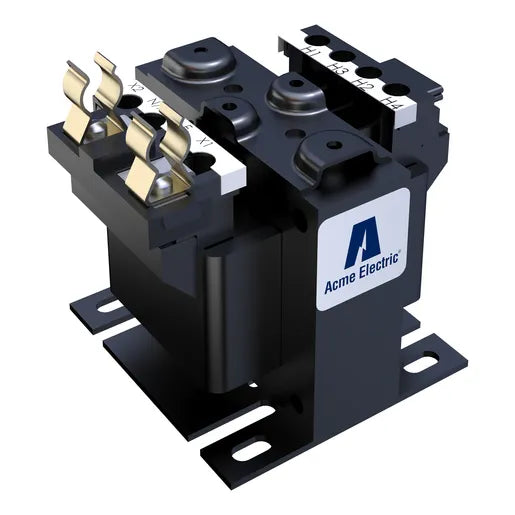

ACME ELECTRIC CE2000N008 Industrial Control Transformer

Product Description

The ACME ELECTRIC CE2000N008 is an industrial control transformer designed to step down voltage for control circuit applications. This transformer has an encapsulated construction to protect the core and coil assembly from contaminants. It features silicon steel lamination which helps to reduce core losses. The transformer includes integrally molded terminal blocks with isolation barriers that prevent arc over. It incorporates copper windings and a heavy gauge steel mounting plate. The product is UL and cUL Listed, meeting various standards such as UL, CSA, NEMA, ANSI, and OSHA. It operates at a frequency of 50/60 Hz with primary voltages of 220, 230, 240 x 440, 460, and 480 V, as well as secondary voltages of 110, 115, and 120 V.

• Encapsulated design protects core and coil assembly from contaminants.
• Series-parallel connecting links save wiring and labor costs.
• Voltage regulation exceeds NEMA requirements.

Product Highlights

This transformer is suitable for various control applications, ensuring reliable operation and minimal losses.

Product Information

Standard Information

• Brand: ACME ELECTRIC
• MPN: CE2000N008

Technical Specifications

• Catalog Number: CE2000N008
• Construction: Encapsulated
• Secondary Voltage: 110, 115, 120 V
• Frequency Rating: 50/60 Hz
• Primary Voltage: 220, 230, 240 x 440, 460, 480 V
• Weight: 38.65 lb
• Dimensions: 12.5 in x 9.75 in x 9.75 in
